Denso develops several Electronic Control Units (ECU‘s),
including for;
Engine Management Systems (EMS),
Body Control Modules (BCM),
Powertrain Control Modules (PCM) or just
Engine Control Unit Modules (ECM) that regulate fuel injection, ignition timing, and emissions to ensure optimal performance.
Yes, Toyota & Denso flawlessly f*k unparalleled access to heavily customized, proprietary hardware and software🥤!
Click HERE
..to get access to f*k any Toyota‘s Denso ECU‘s parameters, including immo off to disable the disturbing security, speed limits, EGR, DPF, ADblue, disable certain stupid diagnosis trouble codes DTC that ground that innocent Toyota not move😎!
Yes👉 Click HERE 🍻
NO, not only for Toyota‘s as widely known,
Denso ECU‘s are used in countless vehicles brands🤷♀️!
The Land Rover, Range Rover vehicles, in fact especially those models with a Jaguar-derived V8 engine (such as the 4.2L AJ33, 5.0L Supercharged, some 4.0L V6), Niiga, those part numbers like MB279700–9260, MB279700–9142, 9W83–12B684–RB, are Denso ECU‘s👌!
Many Isuzu diesel platforms use DENSO ecu‘s in like the 4KH1, 4JJ3, 4HE1 that utilize two distinct sets of identifiers, Isuzu OEM number (e.g., 8980008780) and a Denso hardware number (e.g., 275800–4755).

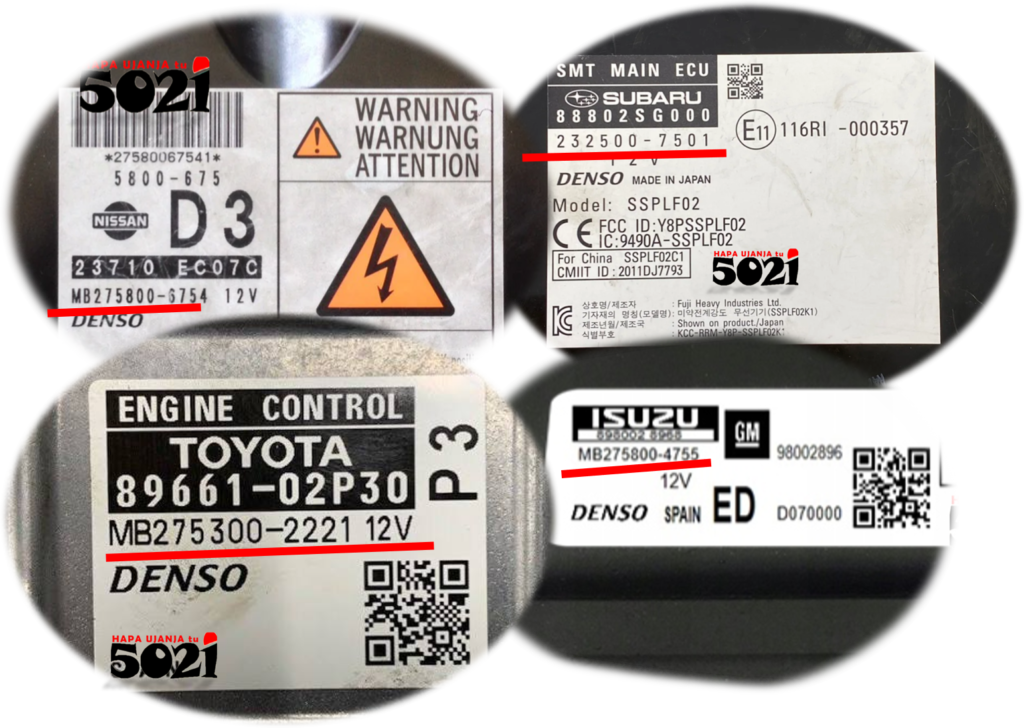

Kindly NOTE that; While some vehicles could be using same Denso hardware, their systems operate entirely differently😲!
See☝ that👇 MB275800*** blaa bla!
Denso ECU‘s are very common in Nissan‘s YD25 , MR20, HR15, etc.)😉!

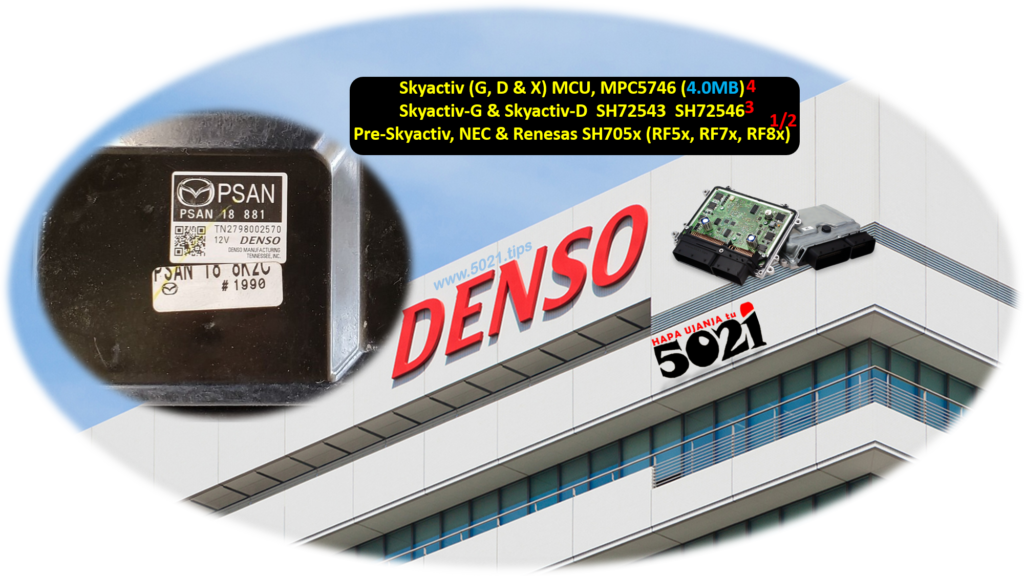

Mazda vehicles, the Denso ECU‘s can be found across generations of the MX-5 Miata, Mazda 3, Mazda 6, CX series… etc☝!

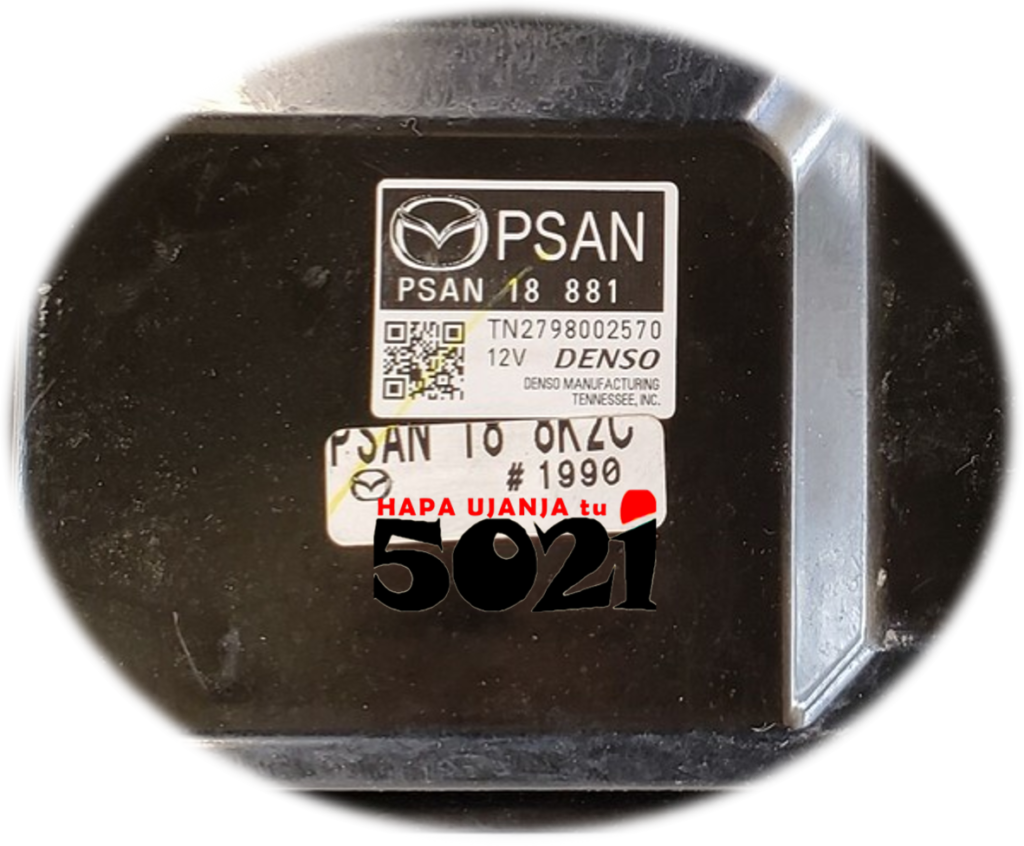

Always locate the exact Denso part number
(e.g., RF8G–18–881F, BP5X–18–881A, PSAN5021🍺)
and the Mazda part number printed on the label🧐!

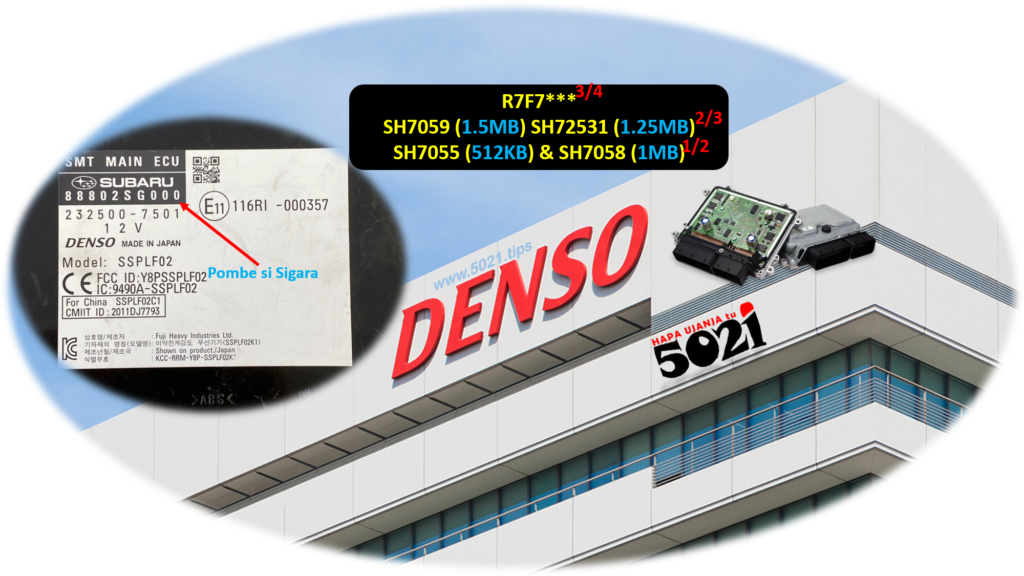

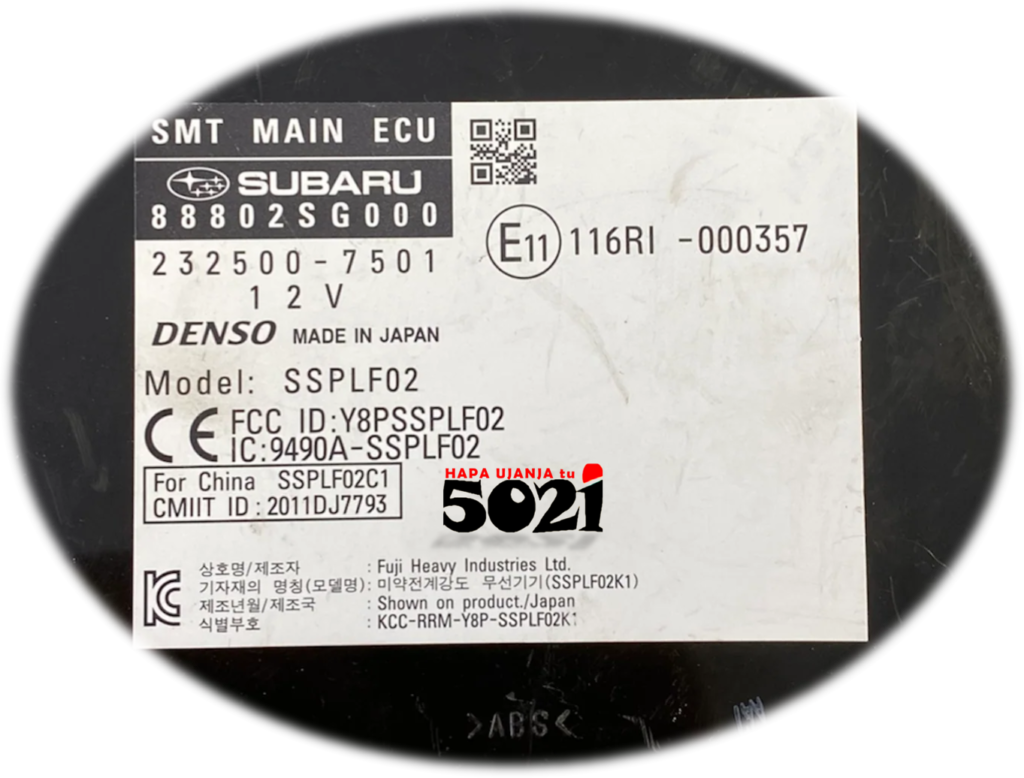

In Subaru, that Denso ECU has some identity number stamped directly on the ECU case, usually an 11-digit number beginning with 22611 or 22765, followed by letters and numbers) 22611AE880 F2🤷♀️!
For example, the part number 88802 SG 000 is for some Subaru‘s Denso Smart Keyless Access Control Module (SMT Main ECU) for the immobilizer, security, push–to–start functions blaa 🔑bla!

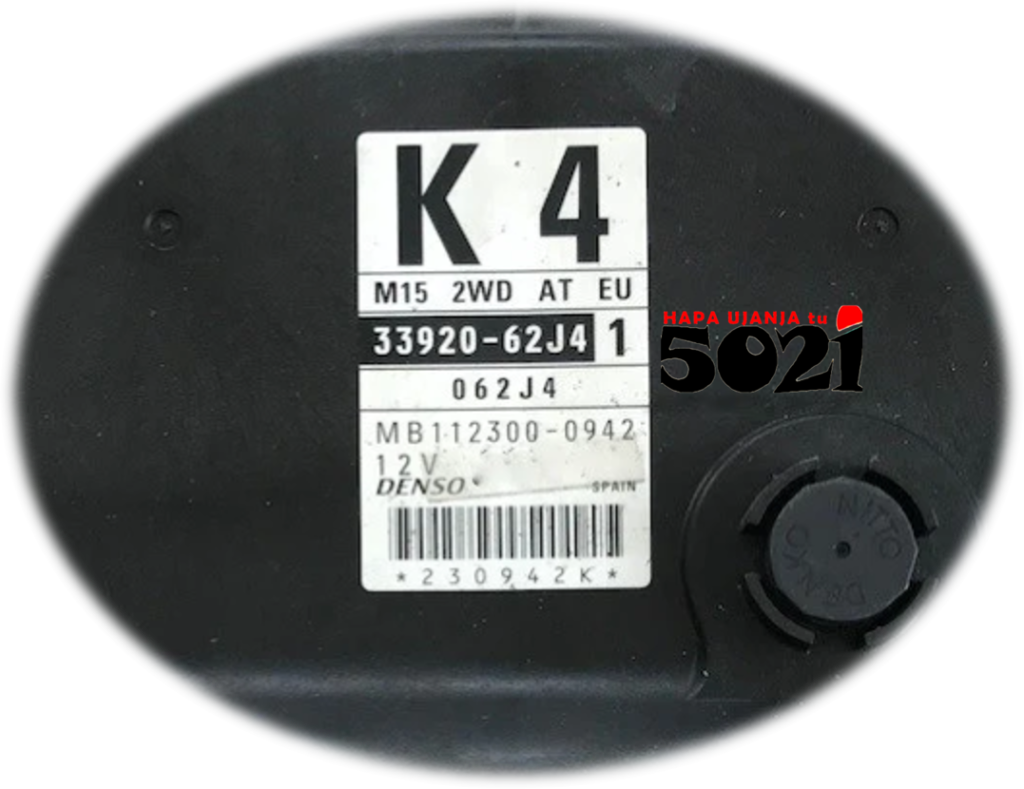

Suzuki with similar DENSO ‘assness’ part number such as 33920–XXXX🤷♀️!
Denso categorizes the ECUs by what they control, could be; Overall Engine Management Units or just Diesel Driver Units for managing diesel injectors and exhaust gas recirculation (EGR) valves🏋️♂️!
Integrated Drive ECUs to manage vehicle propulsion & braking👌!
Hybrid & Electric Vehicle (EV) Modules for hybrid power control, battery current sensing, and electrified powertrain management…etc!

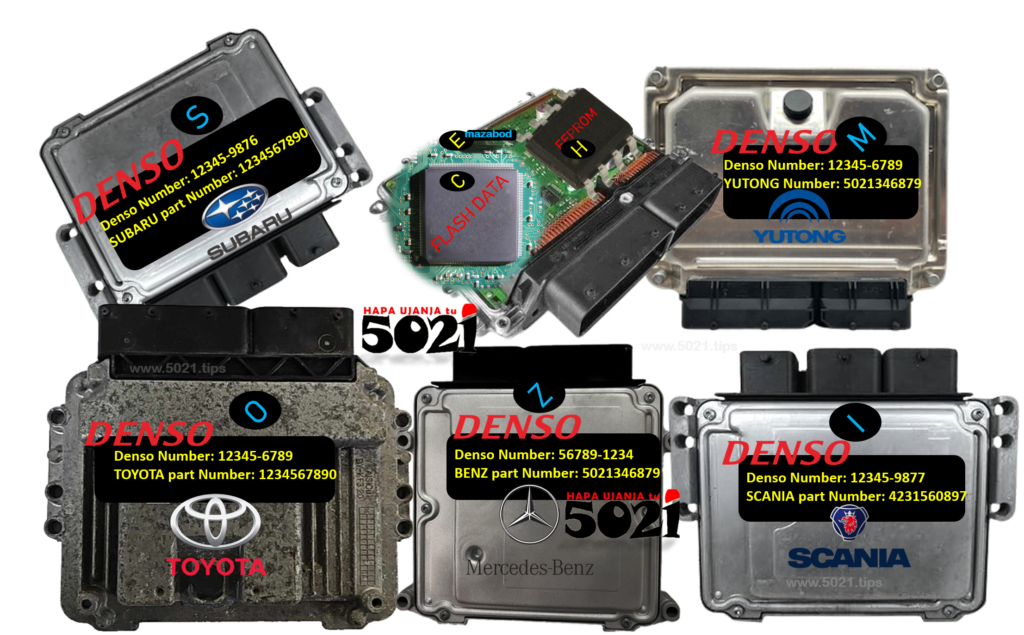

A Denso ECU may contain 2 part numbers!
Denso‘s internal number
(e.g., 175822-XXXX), and
vehicle brand‘s part number
(e.g., Toyota 89661-XXXXX)!

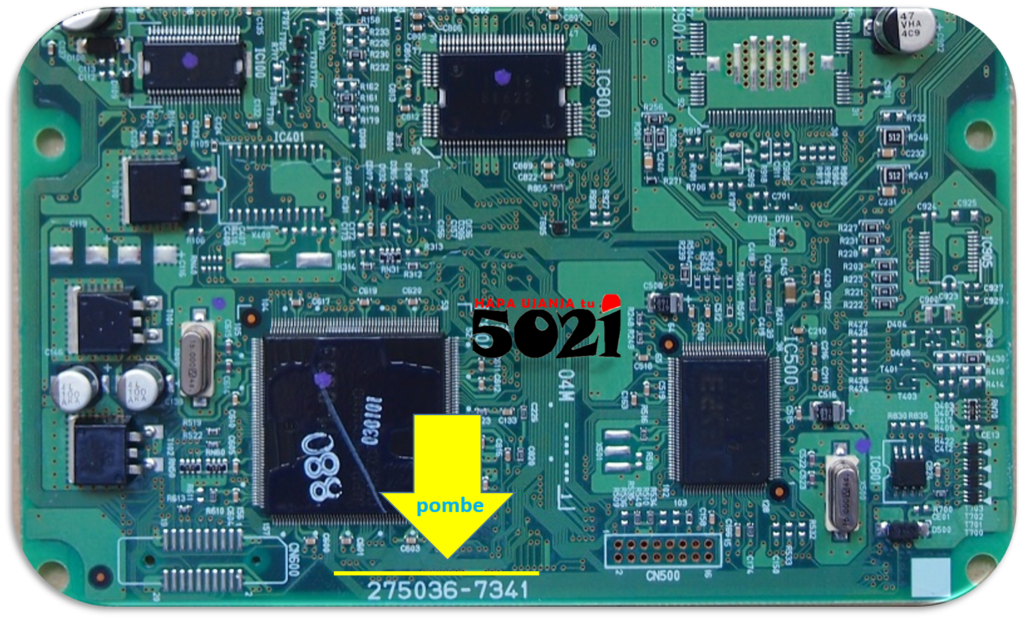

Denso uses a standard two–part sequence📌
(e.g., 275036-9170) or (e.g., 175822-XXXX):
First 6 Digits indicate the hardware base or the processor family (e.g., SH7055, Renesas, NEC).
ECU‘s sharing these first six digits often share the same motherboard design and pinout🤪!
Last 4 Digits indicate the software calibration and vehicle–specific programming🩺!
Yes, small variations could reflect different transmission pairings (automatic vs. manual) or regional emissions specifications, etc, insha’Allah🤷♀️!
For the Vehicle brand‘s Part Number, them, e.g., Toyota, Mazda, etc, know whatever the number decodes into🤷♀️!
The most accurate way to identify the exact internal hardware is by checking the Denso part number printed directly on the circuit board📌!
If the ECU is sealed😉, you can read the internal part numbers and serial numbers using diagnostic tool✌!
Just like those popular Lexus & Toyota‘s, the DENSO ECU‘s keep on evolving across hardware and software generations, centering around processing power, memory capacity, and anti-tuning encryption😲!
GENERATION-1

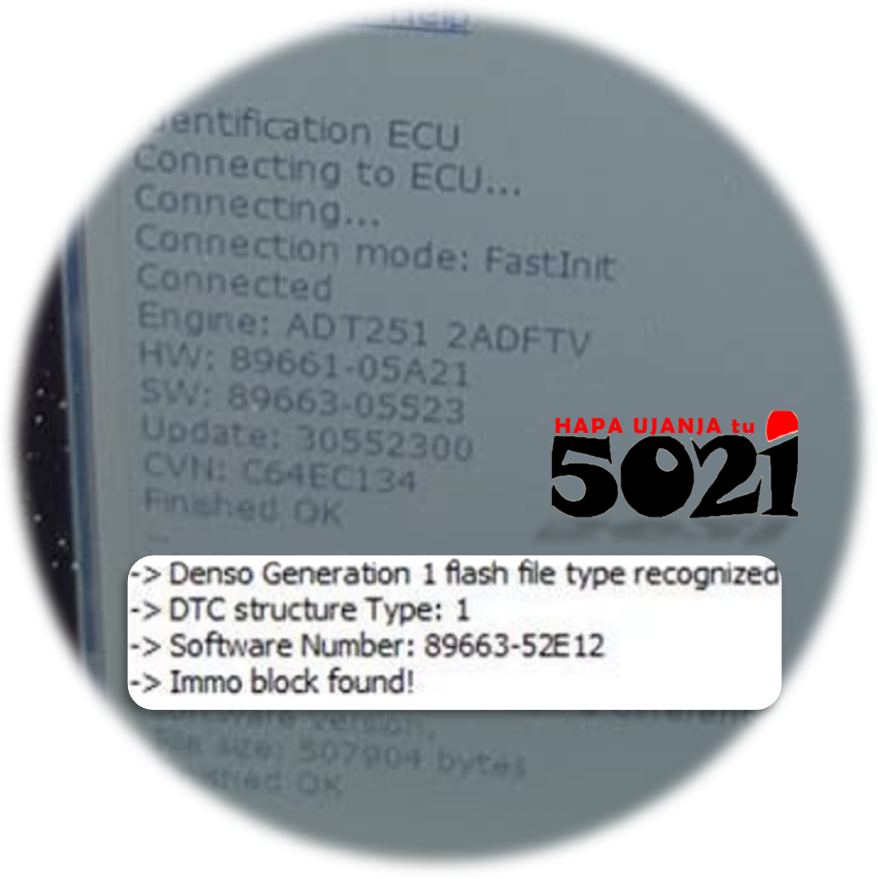

Toyota Generation 1, that PCM for basic engine and transmission control has NEC Microcontrollers, those NEC 76F00XX series with data size of about 368 KB to 1 MB!
Just as with (1GR–FE, 2TR–FE), early D–4D diesels (1KD–FTV, 2KD–FTV).

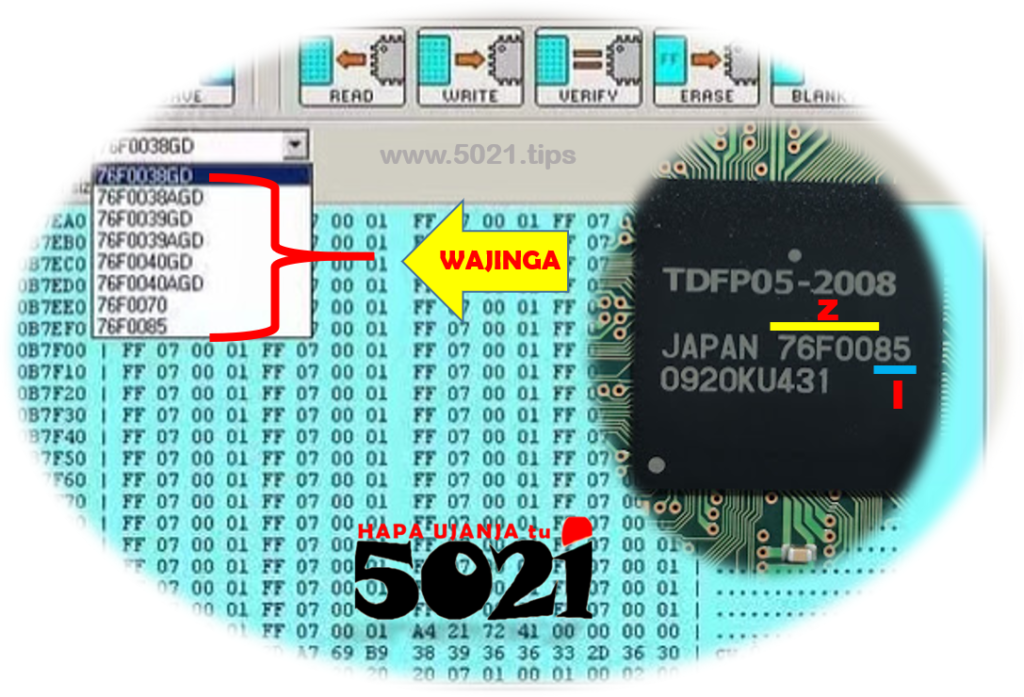

76F0038 7F0038A 76F0039 76F0039A 76F0040 76F0040A 76F0070 BGA 76F0085 BGA
So, make ☝sure whatever tool you want, handles the mCU‘s!
All the nonsense We give You has each version’s ECU pinout to help You f*k connections🤪!
Hyundai‘s Gen-1, was the Renesas SH705x series as used in that 2015 Hyundai EON😎!
By the way🥤,
interpreting, locating, testing or doing whatever nonsense on any ECU‘s motherboard should be easy🤷♀️!
Click HERE
Suzuki’s Gen–1 features NEC 76F00XX series or Renesas SH7055 / SH7058 microcontrollers📌!
Opel‘s Gen-1 is the Renesas SH7055 family!
Nissan‘s Gen–1 was blinded as Renesas/Hitachi SH7055 or SH7058 with between 512KB to 1MB flash size just as seen in X-Trail, Primera, etc!
Mitsubishi‘s Gen–1 and Gen–2 is;
Renesas SH7058 with 1MB
SH7059 with 1.5MB as used in
Triton / L200, ASX 1.8 🥂!
By the way🥤

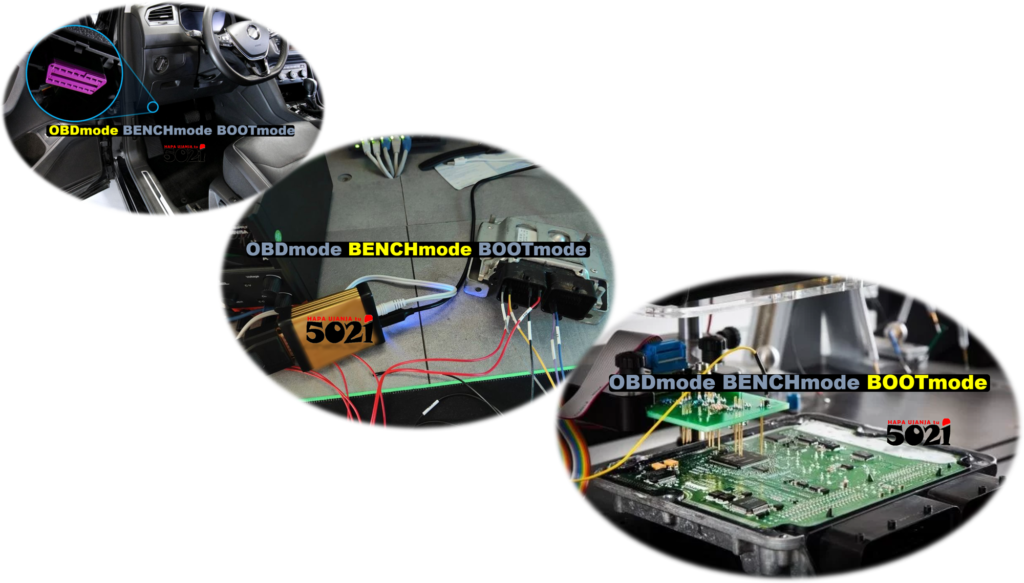

ECU programming, reading and or writing data, can be done via boot, bench, or OBD modes🤷♂️!
There is difference in data read/written across these three methods because of varying levels of hardware access, communication protocols, and security restrictions🤷♀️!
Click DOWNLOAD
👇
HERE HAPA
👆👆👆👆👆👆👆👆👆👆👆
This rubbish is some on, if there be a challenge on, which what where how to connect the Control unit’s ping terminals , inshaAllah🤷♂️!
Land Rover seems NOT fond of the “Gen 1, 2, 3” blaa bla, branding!
It’s DENSO units are identified by their hardware platforms,
MB279700, with chips SH7058 / SH7059🤷♀️!
P5.0SC family with Gen II / III SH725XX chips🙄!
Chevrolet’s Gen-1 is that NEC 76F00XX series, with the size between 368 KB to 1 MB⏰!
MAZDA‘s Gen-1, or the Pre–Skyactiv, used the older NEC and Renesas SH705x cores (e.g., RF5x, RF7x, RF8x) as found in the Mazda 3, Mazda 6 (MZR-DISI), and RX-7!
Ford‘s Gen-1 & Gen-2‘s DENSO nonsense is that Renesas SH7055 (512KB) and SH7058 (1MB/1.5MB)👌!
Subaru‘s NOT Gen-1, but it’s early nonsense is the Renesas SH7055 (512KB) & SH7058 (1MB)
Isuzu‘s Gen-1 (and part of Gen-2) has Renesas SH7058, between (1 MB – 1.5 MB) as found in the early Isuzu D-Max 3.0L, early N-Series with 4HK1/4JJ1 engines🧐!
Volvo‘s Gen-1 is with Part Numbers 079700–8xxx series
(e.g.,079700-8831, 079700-8951, 079700-5021🤪).
GENERATION-2
TOYOTA‘s Generation-2, as the CAN–bus networks and direct injection systems starting complicating (e.g., 2GR-FSE/8AR-FTS engines), the ECU were equipped with Renesas Microcontrollers, which were previously NEC’s likes of
D76F0199GD (1.25 MB) D76F0196F1 (1.5 MB),
D76F0198F1 (1.5 MB) D76F0219F1 (2.0 MB)!
Yes, Toyota & Denso flawlessly f*k unparalleled access to heavily customized, proprietary hardware and software🥤!
Click HERE
..to get access to f*k any Toyota‘s Denso ECU‘s parameters, including immo off to disable the disturbing security, speed limits, EGR, DPF, ADblue, disable certain stupid diagnosis trouble codes DTC that ground that innocent Toyota not move😎!
Yes👉 Click HERE 🍻
NO, not only for Toyota‘s as widely known,
Denso ECU‘s are used in countless vehicles brands🤷♀️!
Mitsubishi‘s Gen-2, like in Gen-1 use Renesas,
SH7058 with 1MB, SH7059 with 1.5MB
as used found in Triton / L200, ASX 1.8👌!
Nissan‘s Gen-2 uses Renesas/Hitachi’s
SH7058S or SH7059,
as found in Nissan Navara (D40), Pathfinder (R51), and Cabstar!
MAZDA‘s Gen-2, or the Pre–Skyactiv like in Gen-1 used the older NEC and Renesas SH705x cores (e.g., RF5x, RF7x, RF8x) as found in the Mazda 3, Mazda 6 (MZR-DISI), and RX-7!
By the way🥤,
ALL VEHICLE BRANDS,
use these 👇files to program, reset or deactivate ECU‘s, DPF, EGR, ADblue, Speed limits, do whatever nonsense🧐,
but at Your OWN RISK🤷♀️!
Click HERE
For example🤔, without doing certain hardware adjustments, you stubbornly jump, ignoring the instructions we attach..
..then you foolishly load a stage–3 ecu data to hack the vehicle perform far beyond factory limitations!
You f*k whatever just because of the 2 drinks You gave us for the data, are We responsible for Your ‘ujinga‘😉? yet…
HAPA UJANJA tu!😁😃🤣
Anyway, Click HERE download sh*t🤪
(It’s NO brainer, just COPY & PASTE)✌
Subaru updated to a Renesas’s
SH7059 (1.5MB) and the SH72531 (1.25MB).
Suzuki‘s Gen-2 are Renesas D76F01xx series, including, D76F0199GD, D76F0196F1, D76F0219F1 or SH725xx families as found in Suzuki Swift ZC32S, SX4, and various naturally aspirated/diesel platforms.
Ford‘s Gen 2, like Gen-1’s DENSO nonsense is that Renesas SH7055 (512KB) and SH7058 (1MB/1.5MB).
Hyundai‘s Gen-2 is that B275700 / P6 Series with a Renesas SH72543 & SH72546 (3.75MB) as found in a Hyundai H-1, Grand Starex, H350, Mighty Truck, County Bus!
By the way🥤,
interpreting, locating, testing or doing whatever nonsense on any ECU‘s motherboard should be easy🤷♀️!
Click HERE
Chevrolet’s Gen-2 includes the D76F0199GD, D76F0196F1, D76F0219F1 cores ranging from (1.25 to 2.0 MB)🏋️♂️!
VOLVO‘s Gen-2 (P3 / Early VEA Platforms)with Renesas SH725xx series MCUs hosted in units with Part Numbers:
MB279700–9xxx series (e.g., MB279700-9500)🥤!
By the way🥤,
If You want help with just one, quick ECU hack file,
click HERE to send us that file
While uploading your files make sure to tell us the ujanja you want.
Could be AdBlue off, DPF delete, EGR delete, immo off,
OR performance tuning files of whichever stage including those minor runs, speed limiter, pops & bangs , seen?
Opel’s Gen-2 with SH7058, about (1MB or 2MB) as found in Astra H, Astra J, Corsa D, Meriva B, and Zafira B (1.7 CDTI engines, including A17DTH, Z17DTJ, Z17DTR)
Daihatsu‘s Gen-2 is just like Gen-3 with Renesas
SH7055 and SH7058
as found in the K-Series (K3-VE) and newer EJ-VE/KF-VE engines!
Isuzu‘s Gen-2 is like Gen-3 with a Renesa’s
SH7059 about (1.5 MB)
as found in Isuzu D-Max 2.5L and 3.0L, N-Series 4HK1).
GENERATION-3
Toyota‘s Generation-3, as modern hybrid systems were integrated, plus those highly advanced diagnostic trouble code (DTC) management tables, it needed Dual-core processing Microcontrollers like those Renesas R7F701202, R7F701216 (4MB )🧘♂️!
Yes, Toyota & Denso flawlessly f*k unparalleled access to heavily customized, proprietary hardware and software🥤!
Click HERE
..to get access to f*k any Toyota‘s Denso ECU‘s parameters, including immo off to disable the disturbing security, speed limits, EGR, DPF, ADblue, disable certain stupid diagnosis trouble codes DTC that ground that innocent Toyota not move😎!
Yes👉 Click HERE 🍻
NO, not only for Toyota‘s as widely known,
Denso ECU‘s are used in countless vehicles brands🤷♀️!
Mitsubishi‘s Gen-3 with Renesas SH72546 as found in recent Mitsubishi L200 and Triton pickups running the 4N14 2.2L DI-D engines🤐!
Nissan‘s Gen-3, in fact its Gen 3+, with Renesas R7F701202, like Hitachi’s SH72533 for strict emissions compliance, Start-Stop systems, and complex torque-monitoring routines👌!
MAZDA‘s Gen-3 is that start of Skyactiv–G & Skyactiv–D powered by Renesas SH72543 and SH72546 processors as found in the Mazda 3, Mazda 6, CX-3, and CX!
Subaru updated to a Renesas SH7059 (1.5MB) and the SH72531 (1.25MB).
By the way🥤,
interpreting, locating, testing or doing whatever nonsense on any ECU‘s motherboard should be easy🤷♀️!
Click HERE
Suzuki‘s Gen-3, just like Gen-4 with Renesas RH850 series’ advanced microcontrollers like R7F701202 and R7F701216 found in like the Suzuki Every or the Maruti 1.2L engine models🦽🛺!
Ford‘s Gen-3 with SH725xx Processors, the Renesas SH7253x and SH72546 Microcontrollers found in 2.0L/2.2L Duratorq Stage 5/6 engines, Ford Transit, Ranger, and several global/Asian-market Ford/Mazda/Hyundai diesels🩺!
By the way🥤
ECU programming, reading and or writing data, can be done via boot, bench, or OBD modes🤷♂️!
There is difference in data read/written across these three methods because of varying levels of hardware access, communication protocols, and security restrictions🤷♀️!
Click DOWNLOAD
👇
HERE HAPA
👆👆👆👆👆👆👆👆👆👆👆
This rubbish is some on, if there be a challenge on, which what where how to connect the Control unit’s ping terminals , inshaAllah🤷♂️!
Hyundai‘s Gen-3‘s DENSO VEA (SH72546) / DENSO P61 with Renesas SH72546 microcontroller😜s!
Chevrolet’s Gen-3 is like Gen-4 with 4 MB data of Renesas R7F701202, R7F701216, R7F702002 microcontrollers👌!
Volvo‘s Gen-3 is the late VEA / EEA Platforms with common Part Numbers: MB279700–9xxx series😉!
OPEL‘s Gen-3 with DEC Renesas SH7059 Series large Microcontrollers weighing from (1.5MB to 2MB+) with recent versions of Opel Astra J, Meriva B, and Zafira C featuring an evolutionary step from the SH7058🧐!
Daihatsu‘s Gen-3 is just like Gen-2 with Renesas SH7055 and SH7058 families as found in the K-Series (K3-VE) and newer EJ-VE/KF-VE engines📌!
By the way🥤,
interpreting, locating, testing or doing whatever nonsense on any ECU‘s motherboard should be easy🤷♀️!
Click HERE
Isuzu‘s Gen-3, is like Gen-2, with a Renesas SH7059 about (1.5 MB) as found in Isuzu D-Max 2.5L and 3.0L, N-Series 4HK1)🚑🚑!
GENERATION-4
TOYOTA Generation-4, as turbo/hybrid platforms were modernized, like the Toyota’s V35A-FTS, it needed more advanced Renesas microcontrollers (e.g., Renesas R7F702002, featureing high-speed encryption, multi-domain integration, and active cybersecurity protocols😎!
Yes, Toyota & Denso flawlessly f*k unparalleled access to heavily customized, proprietary hardware and software🥤!
Click HERE
..to get access to f*k any Toyota‘s Denso ECU‘s parameters, including immo off to disable the disturbing security, speed limits, EGR, DPF, ADblue, disable certain stupid diagnosis trouble codes DTC that ground that innocent Toyota not move😎!
Yes👉 Click HERE 🍻
NO, not only for Toyota‘s as widely known,
Denso ECU‘s are used in countless vehicles brands🤷♀️!
Please remember that Mitsubishi’s DENSO hardware are also often categorized by broader hardware/software logic suites, like the SH705x Series could be blinded as earlier generation ECU platforms controlling early common-rail diesels🚧!
The RA6 / 4N13 / 4N14 Families’ numbers (e.g., Denso 275722–4810) utilize specific 32-bit Renesas processors to regulate DPF, EGR, and complex injector waveforms🤷♀️!
Nissan‘s continues the Gen 3+, with Renesas R7F701202, like Hitachi’s SH72533 for strict emissions compliance, Start-Stop systems, and complex torque-monitoring routines🚑!
MAZDA‘s Gen-4 (Skyactiv G, D & X) Microcontrollers powered by MPC5746 processors with up to 4.0MB of data as covering the Mazda CX-3, CX-30, CX-5, CX-8, and 2020+ Mazda 3😉!
Subaru’s Gen-4 or Aurix Generation withg Renesas R7F7 series / Next-Gen Denso Microcontrollers communicating with by the nonsense of CAN FD and Ethernet diagnostics as evidenced with Outback, Ascent, Crosstrek, and latest WRX (FA24F).
By the way🥤,
ALL VEHICLE BRANDS,
use these 👇files to program, reset or deactivate ECU‘s, DPF, EGR, ADblue, Speed limits, do whatever nonsense🧐,
but at Your OWN RISK🤷♀️!
Click HERE
For example🤔, without doing certain hardware adjustments, you stubbornly jump, ignoring the instructions we attach..
..then you foolishly load a stage–3 ecu data to hack the vehicle perform far beyond factory limitations!
You f*k whatever just because of the 2 drinks You gave us for the data, are We responsible for Your ‘ujinga‘😉? yet…
HAPA UJANJA tu!😁😃🤣
Anyway, Click HERE download sh*t🤪
(It’s NO brainer, just COPY & PASTE)✌
Suzuki‘s Gen-4, just like Gen-3 with Renesas RH850 series’ advanced microcontrollers like R7F701202 and R7F701216 found in like the Suzuki Every or the Maruti 1.2L engine models🥤!
Ford‘s Gen-4 with R7Fxxxx Processors and Renesas R7F701xxx Microcontrollers used in the recent hybrid (HEV) and highly digitized modern platforms (heavily associated with Ford’s shared Toyota/Mazda partnerships)📚!
Hyundai‘s Gen-4‘s DENSO VEA, DENSO P61 with Renesas SH72546 microcontrollers👌!
Chevrolet’s Gen-4 is like Gen-3 with 4 MB data of Renesas R7F701202, R7F701216, R7F702002 microcontrollers🧐!
Volvo‘s Gen-4 is the late VEA / EEA Platforms with common Part Numbers: MB279700–9xxx series✌!
OPEL‘s Gen-4, like Gen-3, with DEC Renesas SH7059 Series large McU’s from (1.5MB to 2MB+) with recent versions of Opel Astra J, Meriva B, and Zafira C featuring an evolutionary step from the SH7058📌!
Daihatsu‘s modern SH72xxx Family, predominantly the Renesas SH72531 and SH72543 tightly integrated with modern Daihatsu technologies, including continuously variable transmissions (CVT), Stop/Start systems, and Smart Assist ADAS😎!
Isuzu‘s Gen-4 with (SH72543 & SH725460) CPU’s of about (2.0 MB to 3.75 MB) data size as found in Isuzu D-Max 1.9L RZ4E / 3.0L 4JJ3, Isuzu NQR/NPR 5.2L), recent N-Series and modern D-Max)🍻!
