As FORD’s becoming increasingly more complex with with newer complex, digital control electronics, electrical systems, newer ujanja is always needed to fix, sort out certain ujinga!
This is about FORD Keys (immobilizer systems), and related Control Units (ECU)!
For longer, exorbitant, ujanja aboutkeys, including how to reset (virginize) systems to accept the first key used after being virginized, or how to forever disable or immo off to always accept any keys used! clickhere
We compile ECU PINOUTS for every all FORD ECU’s, Electronic Control Units!
These are details of about which pin on the ECU connector, specific function, (e.g., ground, power, sensor input, actuator output) carried by each pin.
These Fords’ diagrams help you identify if a problem is with a sensor, a wiring harness or the ECU itself,
This is JUST summarizing random points about FORD keys, for longer extreme details, check ☝☝check hapo juu! All that mambo jambo, transponders, readers’ coils, immu immo, this that box, everything uko☝☝!
(We’re disorganized, and so are these👇summaries) Some useless PDF documents are attached below the page!
ONYO📌
Mazda, Jaguar, Land Rover, Lincoln, and may be some others We don’t know, have some zigzag relationship with Ford! So, You could find some carry-over technology.

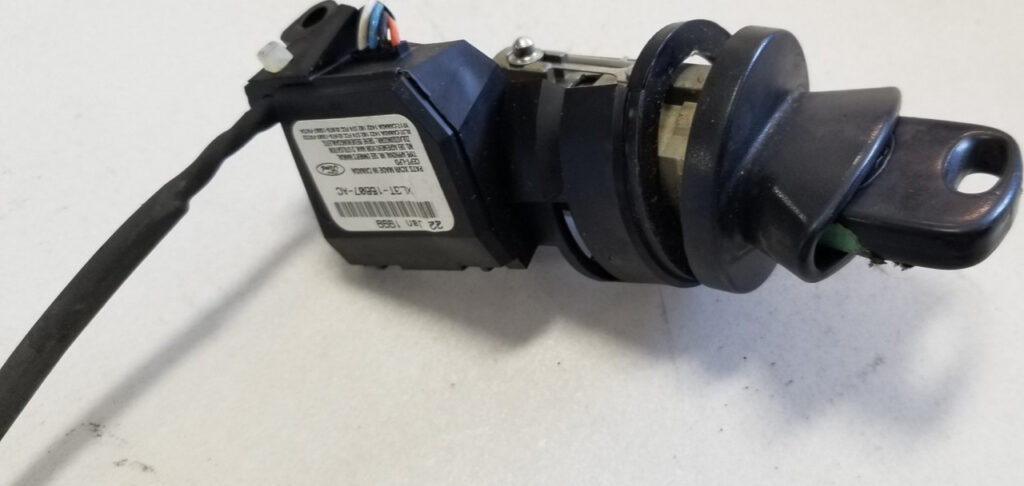

FORD’s immobilizer system is PATS (Passive Anti-Theft System)
Passive, at the time of invention, the system was always sleepy, dormant, passive, that until a key is inserted does it wake up🤷♂️!
…some’s use SecuriLock to mean PATS!
PATS disables all of the engine management, …and on some models the starter as well!
2 extreme kinds of PATS!
PATS before 1998, and …other many different PATS’s configurations after 1998!
PATS before 1998
PATS is not part of the central locking nor alarm system! The red LED is used for both, the alarm and the PATS !
Three keys, a red master key, and 2 slave keys
ONLY the red Master key, X, puts the ford into programming mode, which mode allows additional 2 more slave keys, Y, to be programmed, without using any machine!
It’s advisable to better keep the red master key, X, safe at home, only the slave black keys Y should be in daily use! …just in case Y is lost, hakuna matata🤷♂️!
Programming new keys
1. Master key, X, must be available!
2. Insert X into ignition and turn to position II. When the red LED comes on, switch off and remove that master key X.
3. The LED goes off and then comes on for 2 seconds. PATS is now in programming mode for the next ten seconds.
4. Insert the new slave key, Y. The LED will come on and go off to confirm that the key has been programmed. Switch off and remove the new key.
In the event that the red master key is lost, then HAPA UJANJA tu!
Fault Finding
Although the red LED is used for the alarm and the PATS systems, PATS has priority, and the LED can be used for fault diagnosis.
The LED should always go out about three seconds after ignition on.
If there are less than three keys programmed into the PATS module, the LED will stay on for one minute with the engine running!
…but if the LED flashes after that then careful attention should be paid because it may be a fault code.
If the LED illuminates for 4 seconds but the engine does not crank, PATS is working correctly and there is a fault elsewhere.
If the LED illuminates for 4 seconds, the engine cranks but does not start, PATS is working correctly and the fault lies elsewhere.
If the engine starts normally but the LED stays on, wait for one minute. This is showing that there are less than 3 keys programmed into PATS. One or more keys need to be programmed to stop this code.
IMMO OFF …ujanja to permanently disable keys for most vehicles, clickhere
PATS configurations after 1998
Different FORD vehicles, depending, could be using multiple modules, ECUs, for PATS system!
PATS modules you can expect to be participating include;
• PCM (Powertrain Control Module) • IPC (Instrument Panel Cluster) • ABS (Anti Blocking Brake System) • BCM (Body Control Module) • RFA (Remote Function Actuator) • TCM (Transmission Control Unit) • and many others, depending on vehicle setup! Those participating ECUs need to contain same vehicle security data. For example, if using a longer route, You may get a copy of the key data from Instrument cluster!
Otherwise, You may need certain password to login into NATS, to be able do perform certain configurations to any of those modules participating in the NATS ! ClickHERE on how where to get the password, …otherwise some OBD machines help You hack passed this security access!
OR
….use the NATS module data, where possible🤷♂️!
This PATS configuration, needs at least 2 keys registered in the system, and a maximum of 8 keys can be registered!
When You succeed logging into PATS; You may want remove some keys from the system, they could be lost or… You may want add other spare keys to that PATS, You may want know the number of keys in that PATS system!
When You Select to Erase Keys,
either; You have all the wanted keys available, to be able delete the unwanted keys, or may be all keys are lost, that You want register newer ones!
Remember, this PATS needs at least 2 keys in the system! So when You erase, make sure You have at least two blank keys available to replace those to be deleted!
In a case of all keys lost, You just have only one new key, assuming that if NATS has an blank spare to accommodate one key, just select ADD KEY Then that one key added will start that FORD! You can add as many as….. ONYO:
With a OBD Diagnosis machine, in case of lost keys, You can ADD keys! Without using a machines, to ADD keys manually, You need the two programmed keys to be physically available!
Programming ujanja!
1. Place first already programmed key in the keyway. Turn the ignition from OFF to ON(RUN) for at least 1 second and, then switch to OFF.
2. Within 5 seconds, insert the second already programmed key in the keyway. Turn the ignition from OFF to ON(RUN) for at least 1 second and, then switch to OFF.
3. Within 10 seconds of turning the ignition lock cylinder to OFF, insert the new key into the keyway. Turn the ignition from OFF to ON(RUN) for at least 1 second and, then switch to OFF.
The theft indicator light should go on for three seconds, after which the key will start the vehicle.
Repeat this process, from the beginning, for each new key to be programmed.
Kwanza utapewa taarifa ya kuhusu EEPROM gani ya kuweka hiyo data ya immo off!
Ujanja wa EEPROMwork ni muhimu, ukitaka kumbuka niaje,
…bonyeza HAPA
WinOLS ni programu yenye uchawi wa kuwezesha kubadilisha, kurekebisha data iliyomo kwenye ECU.
Ina maana unaeza kutoa/kuzima hizo mifumo zenye usumbufu kwenye gari, zikiwemo IMMOBILISER (kufanya immo off). kutoa DPF, EGR, ADblue, kubadili TURBO zenye umeme, yaaani inafanya kazi nyingi kama ECU tuning, uamuzi ni wako tu🤷♂️!
Ukishaitambua hiyo EEPROM, ni bora na salama, ukisoma na kuhifadhi SAVE (back up) hiyo data iliopo kwenye EEPROM bila kugusa kubadili chechote!
Ukimaliza ku load file, hamna aja ya kugusa, kubadili, kufuta chechote!
Moja kwa moja Program WRITE andika hiyo file kwenye hiyo EEPROM!
LAKINI, kwa ujanja zaidi, bora ulinganishe compare hizo file zote mbili, yenye immo ON, na yenye immo OFF, ili ujifunze, utambue wapi pamebadili kufanya OFF, ili nawe ujifunze ufanye mwenyewe, bila software wala mashine yeyote!
Tazama hii video👇 uone niaje kama vitakusaidia, kisha ushuke chini uweze ku download👇!
Sawa, funguo inaeza kuwa sahihi lakini ukibadilisha tuseme computer ya engine (ECU) au computer ya body (BCM) au anything could have happened kwamba lazima ukutaanishe (initialize ama adapt) vifaa vyote kwenye hii NATS🤔!
Sasa baada ya, au ukimaliza kukumbuka au kujua namna na nini chakufanya kwa hizi blaa blaa za NATS, tumekuwekea software hapo chini ya kufanya uchawi wa NATS aina zoooote!
LAKINI, kama unajiamini, nenda chini ya hii page uweze ku download moja kwa moja!
Sasa wakati unafanya initialization ukiwa na mashine yeyote ya diagnosis👨🔧, kutafika wakati unahitaji neno siri (password) fulani ili uweze kukamilisha. Uchawi zaidi ni kwamba hizi unapaswa kuzipata sehemu maalum kutoka kwa watu fulani🙄!
Sasa hapa tunapeana ujanja wa namna kupata hizo passwords (NATS code)!
All that mambo jambo, transponders, readers’ coils, immu immo, this that box, everything uko☝☝!
