Kwanza,
immo-off data is NOT virgin data!
Immo-off data is NOT, although can be, called a “dump”😂🤣!
In fact, an EEPROM dump could just mean the reading, ama the contents of an EEPROM, that is saved as a data file🤷♂️!
This ‘any data’ could be intended for backup, debugging, analysis, or for any ‘ujinga’!
Sasa,
Virgin data (or “virgin file“), just like the meaning of the word, virgin🤷♂️!
This data restores an ECU or immobilizer module to its original, factory-reset state!
This “virgin” module, on to which virgin data has been written, this module can then be ready to be “married” or adapted to a specific vehicle’s existing immobilizer system (e.g., keys, dashboard cluster, nk.).
“Immo-off data” permanently disables the immobilizer function!
This means the car will start without checking for a valid key transponder signal📳!

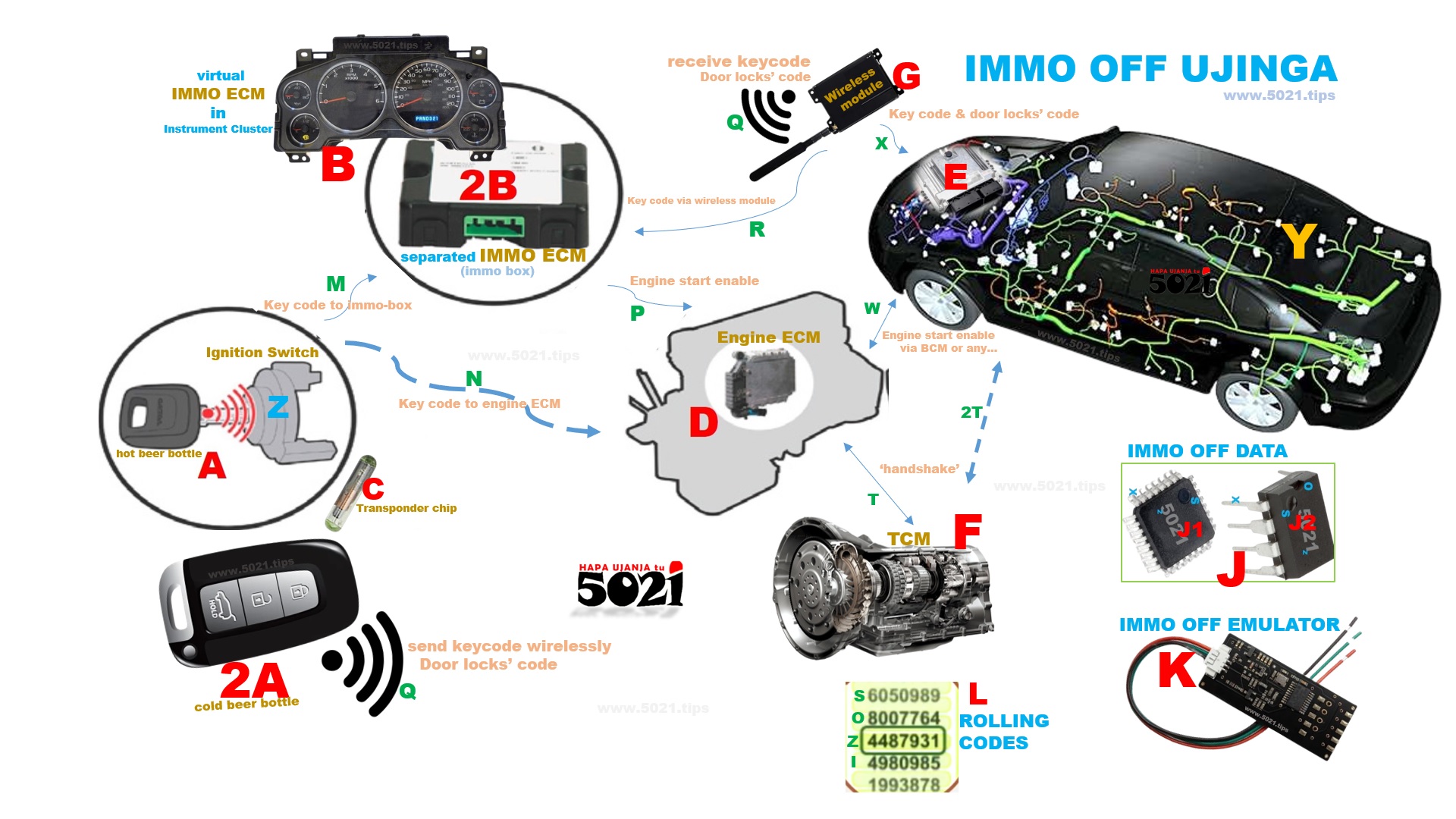

Reviewing a standard immobilizer system using this picture👇

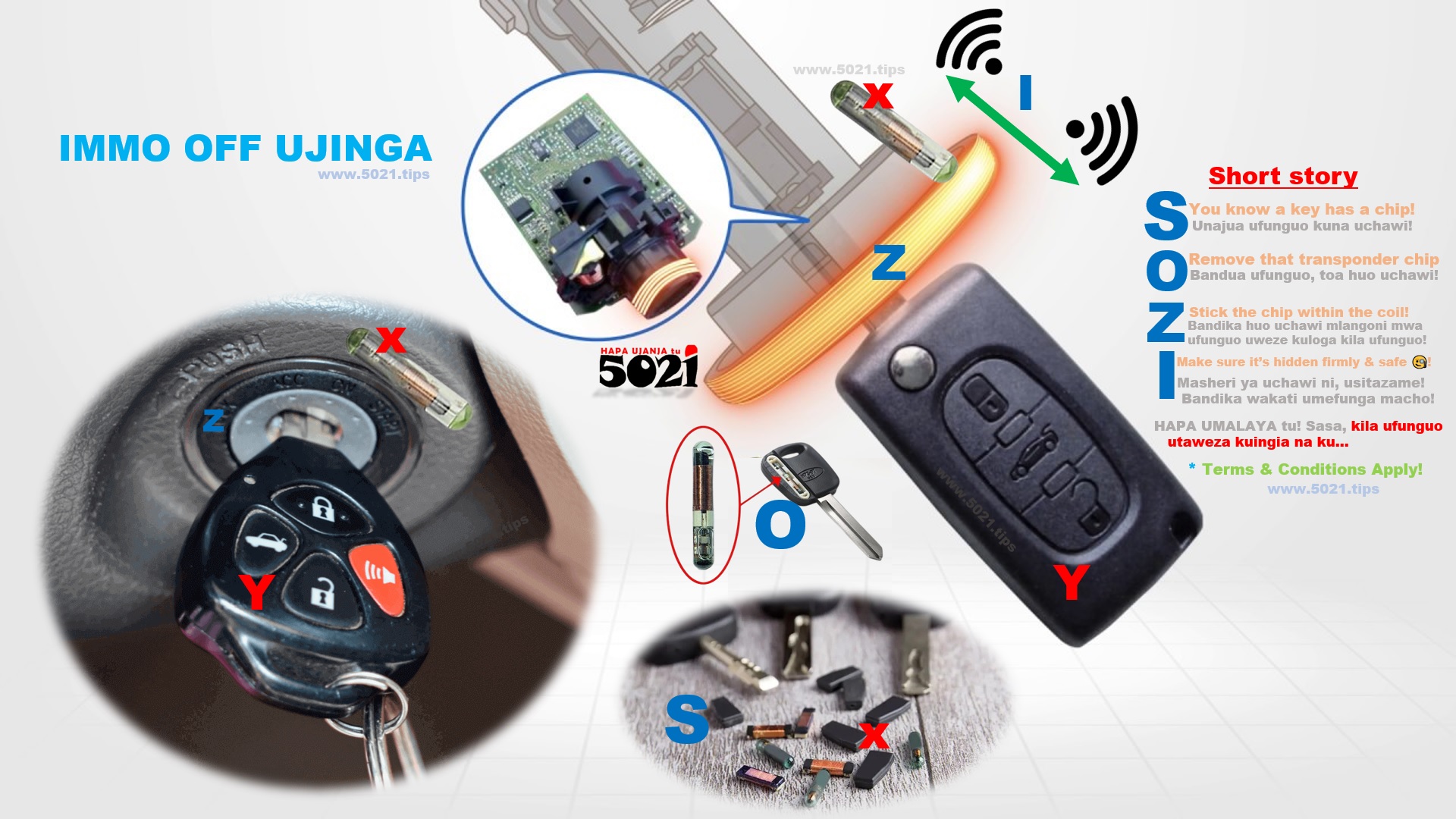

C) Unique, security data is stored in a transponder chip, C, within the key, could be type A or type 2A!
N) To eliminate, C, You could do magic in, D, the Engine ECU, so it forgets about needing to read nor expect data from a Transponder chip, C, inside the keys, A or 2A!
(Remember some systems don’t have an immobilizer ECU the immo box)
M) Magic can be done in the immo ECU, to fool it believe it has read and received the correct Transponder Data, C!
Because the immo ECU has been fooled,
it will foolishly tell the Engine ECU that it’s a correct key being used so OK, ‘hakuna matata’ 🤣😂 then Engine be allowed to Start!
HAPA UJANJA tu!
NOTE🤠
It’s risky to only believe ‘IMMO OFF data’ is only written to the Engine ECU’s memory!
There is NO standard algorithm🤷♂️!
So many researchers are NOT sleeping, are always finding newer, different ‘ujanja’ on how to disable certain cars’ security!
👇

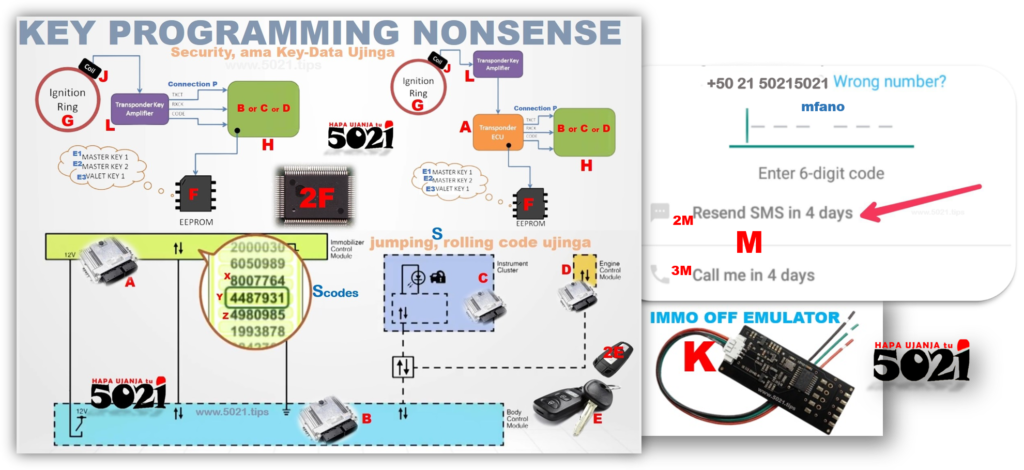

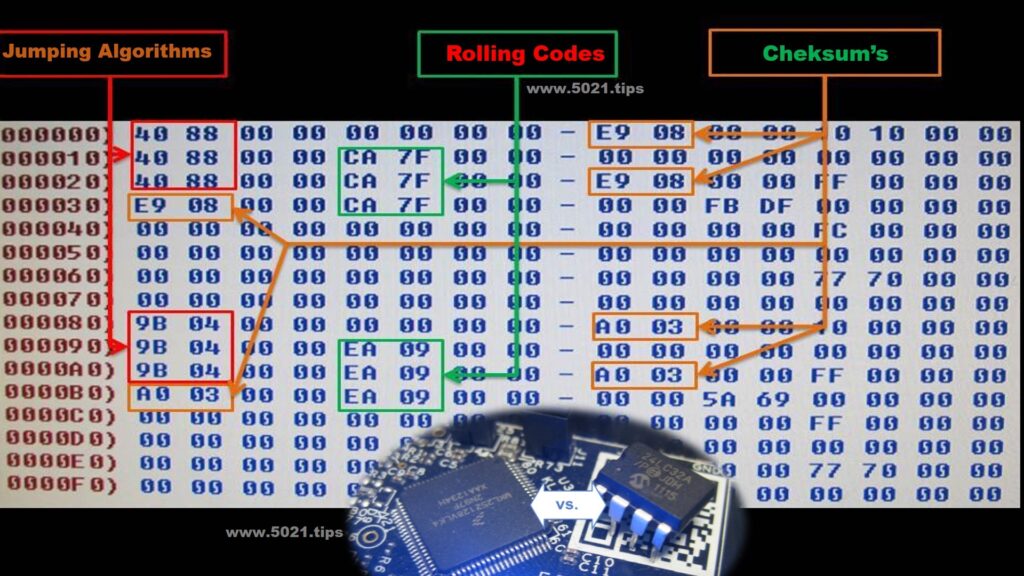

L) In certain systems, the immobilizer data involves changing, running, ama, jumping codes!
As demonstrated in L👇,
If the previous codes were, S, O, the present could be Z, then next I!
K) A certain dongle, some call it ‘immo emulator‘, could be installed in one of the units, so as to mimic the rolling code algorithm involved, insha’Allah🤞!

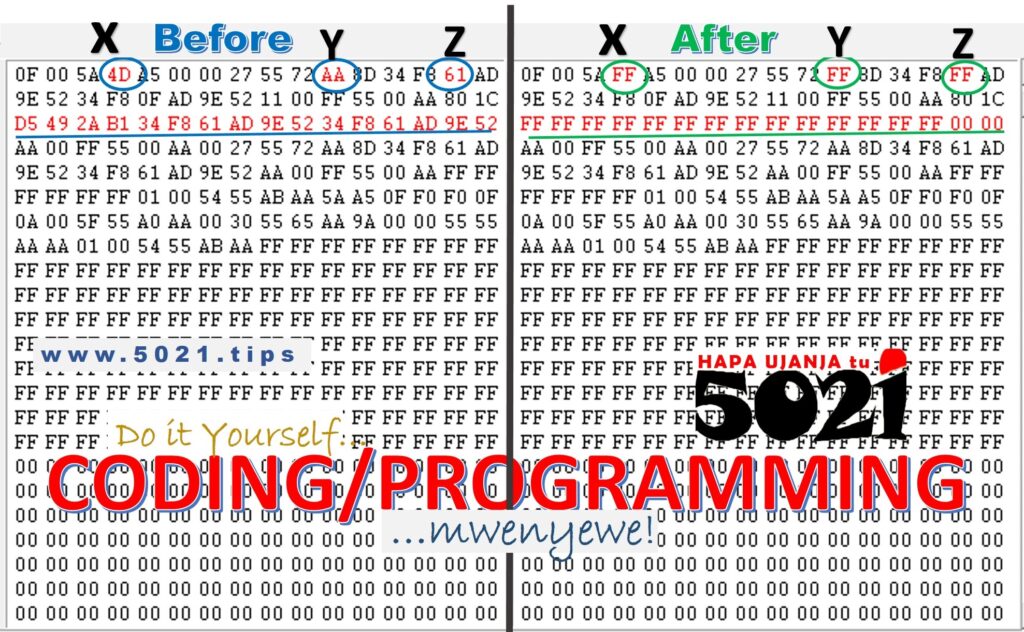

J) Most of the immo off nonsense involves dealing with EEPROM‘s data!
Could be parallel EEPROM like J1, or Serial EEPROM like J2!
Kindly don’t break Your head, wondering how You know what or where to edit so as to do immo off!

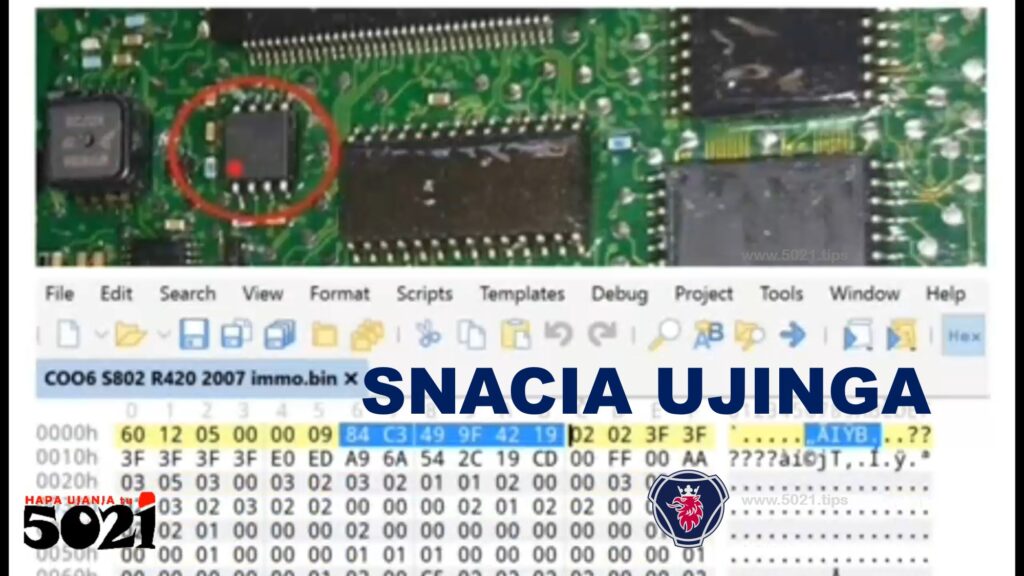

HAPA UJANJA tu, all You need is to prioritize EEPROM work skills of knowing how to read, identify, edit EEPROM data!
Just Click HERE, if You don’t like, but need about EEPROM work!
There are so many sources of getting immo off data, all You need is to just “copy & paste” to the respect EEPROM!
We keep accumulating loads of immo off data, click here if You want download our useless immo off data which we keep packing with almost every ecu’s, ama, car brands!
And because all immo off work depends on EEPROMs, our nonsense shows You whatever EEPROM that You may have to write the respective ‘immo-off data’ !

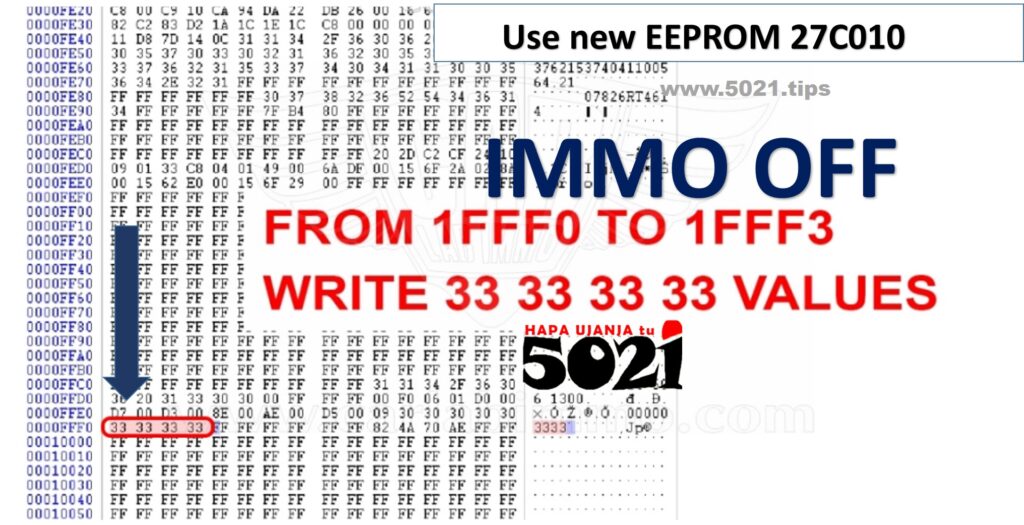

Remember, in certain vehicles’ systems, the EEPROM could be secured as a write-once, meaning You need to replace EEPROM as instructions will show You!
Remember, there is no specific algorithm, ama, method!
Whatever You evidence as working, please compare and look at the data structures so You teach Yourself how it’s done! Seen🤔?
DOWNLOAD
👇
CLICK BONYEZA HAPA
👆👆👆
In case CHECKSUM‘s are a f*k,
just carry with You some rubber,
then click enter here🤐
If You don’t want to do that seemingly complicated EEPROM work, obviously HAPA UJANJA tu😂😁🤣
DOWNLOAD
👇
CLICK BONYEZA HAPA
👆👆👆
Ujanja wa EEPROM work ni muhimu, IMMOBILIZER SYSTEMS ukitaka kumbuka niaje,
…bonyeza HAPA
Ukishaitambua hiyo EEPROM,
cha kwanza ni bora na salama,
ukisoma na kuhifadhi SAVE (back up) hiyo data iliopo kwenye EEPROM bila kugusa, kubadili chechote!
Ukimaliza ku load file, hamna aja ya kugusa, kubadili, kufuta chechote!
Moja kwa moja Program WRITE andika tu hiyo file kwenye hiyo EEPROM!
LAKINI, kwa ujanja zaidi,
bora ulinganishe compare hizo file zote mbili,
yenye immo ON, na yenye immo OFF,
ili ujifunze, utambue wapi pamebadili kufanya OFF!
Sasa hapo na wewe ujifunze ufanye mwenyewe,
bila software wala mashine yeyote!
Tazama hii video👇
uone niaje kama vitakusaidia,
ushuke chini uweze ku download👇!
DOWNLOAD
👇
CLICK BONYEZA HAPA
👆👆👆
You notice that one file could work on several other vehicles! Utilize all the attached information
👇
Reminder on how to LOCATE the data & address
👇
May be whatever is causing You believe MUST do some nonsense to the vehicle, is some minor external problem with the sensors or actuators🤷♂️!
So, this ujanja is how to check, verify all the control electronics in the vehicle, are in proper order!
click here
👇
IMMO OFF files
☝☝
click
These files to disable immobilizer system so the ecu accepts any random key used!
HAPA UJANJAtu, hii ndio jinsi ya kugundua, kupata na kupima componets za ECU, kisha suluhisha shida hiyo. inshaAllah👇
ECU cloning, duplicating or switching memory data’s,
flash memory data, EEPROM memory data, jogolize data,
HAPA UJANJA tu!
WinOLS ni programu yenye uchawi wa kuwezesha kubadilisha, kurekebisha data iliyomo kwenye ECU.
Ina maana unaeza kutoa/kuzima hizo mifumo zenye usumbufu kwenye gari, zikiwemo IMMOBILISER (kufanya immo off). kutoa DPF, EGR, ADblue, kubadili TURBO zenye umeme, yaaani inafanya kazi nyingi kama ECU tuning, uamuzi ni wako tu🤷♂️!
