Here, You could get a general understanding, a setup of a Vehicle’s Immobilizer System๐ค !
Otherwise We, further, deeply & separately, discussed every specific brand’s system ๐คทโโ๏ธ!
We demonstrated how KEY PROGRAMMING is done on different vehicle brands,
lost keys, spare keys, immo OFF๐ immo ON!
As in, all vehicle brands, like,
Benz, Toyota, LandRover, Isuzu, Volvo, Suzuki, Sozi, DongFeng, etc๐๐๐บ๐๐!
In no particular order We keep adding whatever nonsense that comes up, insha’Allah๐ค!
We packing loads of rubbish here, very useless!
Just make sure You can make sense out of this nonsense, seen๐คทโโ๏ธ?
Our things are very disorganized,
just fight to get what could be useful, insha’Allahโ
Whether, Keys type X or type Y,
make sure You be able to do spare keys, lost keys, synching (adapting/programming) whatever involved ECU, Z, hardware wherever necessary๐!
Niiiga, at least have an idea, bomboclat๐๐คฃ๐!
Below this page๐,
there is a list with links to every specific Vehicle๐ง !

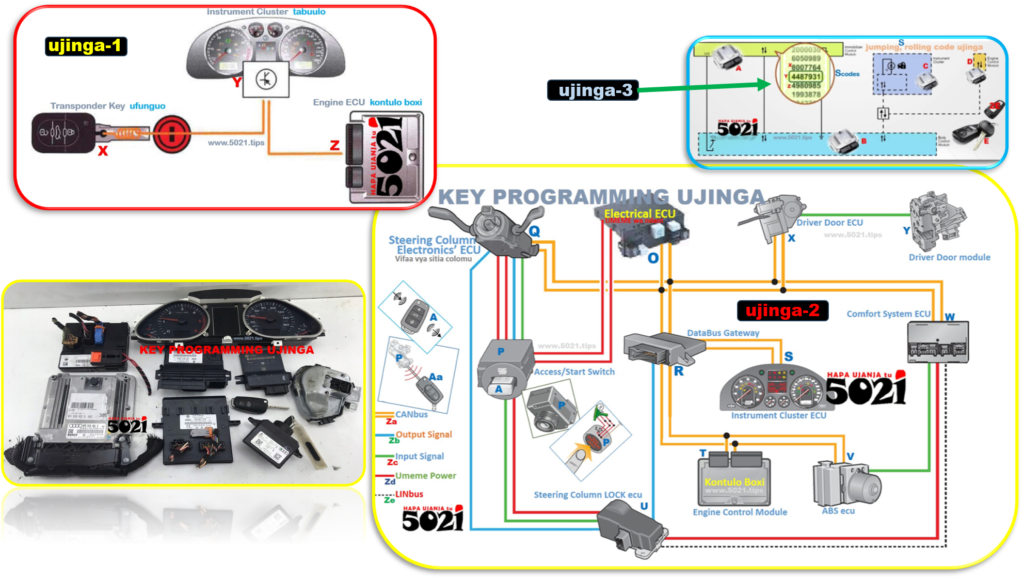

Kindly study this picture,
make sure you’re not drunk & drank๐คช!
Remember, We have 2 types of Keys,
Smart Keys (Y) & Analog Keys (X) with metal๐!
Staring with Analog Keys (X)

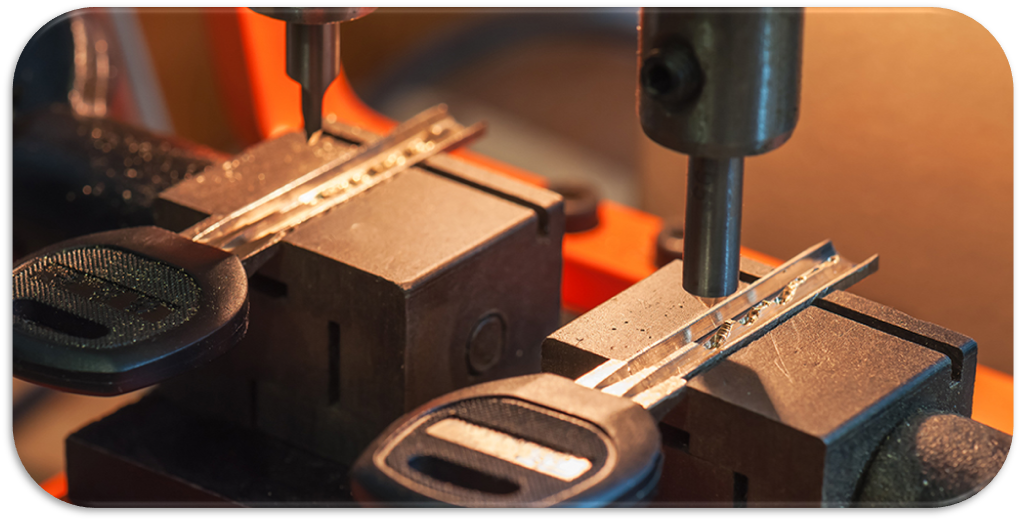

S) The bitting, ama, the grooves on the key blade,
can be used for Electronic Engine Immobilizer System๐!
The complex grooves like the paracentric or laser-cut patterns can be almost impossible for picking and unauthorized duplication๐คทโโ๏ธ.
How electronic๐ค?
HAPA UJANJA tu๐คช!
In some vehicles, when๐ the correct key, A, turns the door-lock switch, B, a signal is sent to the Pneumatic System Equipment Pump (PSE), C, controller, to unlock the doors, at the same time enabling the immo relay, D, that is linked to the Engine Starter๐คทโโ๏ธ!
See how why some vehicles, without first unlocking the driver’s door lock, NO engine crank๐คทโโ๏ธ!
Remember๐,
You may click here if you want buy us a drink๐ป!
Jazak’Allah๐ค
Assuming You’re familiar with ELECTROMAGNETISM magic!
Otherwise CLICK HERE
Try to imagine๐ค, some special ‘things’, material, that can excite or be excited, by Electromagnetism magic๐ค!
๐๐คฃ
I’m finding means of how You could understand the ‘special things‘ (transponders) used in keys๐คช!
For now, I’m using the words “special things” because We don’t yet know about transponders, seen๐ค?
So, bare with my nonsense๐คฃ๐๐คช!
Anyway, continue imagining, how these smallย ‘special things‘ (T) are made๐ง!
Note that, these ‘special things‘ (T), can change or can be changed by the Electromagnetism magic!
Longer story, shorter๐!
Use the picture below to continue imagining๐ค!
S) Imagine this ‘special things‘ ย (T or 2T, 3T) has particles inside๐ค!
These particles are arranged in a normal, usual (unprogrammed) way๐!ย
O)Remember, the particles in the ‘special things‘ (T or 2T, 3T) can be excited (changed) programmed using Electromagnetism magic, using whichever tool (2J)!
Z)These particles in the ‘special things‘ (T or 2T, 3T) have been permanently (uniquely) excited (programmed) at (S) to (Z) or (I) or whichever, depending on the magic is uniquely done by tool (2J)!
As in, the arrangement of the particles in the ‘special things‘ (T or 2T, 3T) have been rearranged, looking as different particles in the new differentย ‘special things‘ (T1 or 2T1, 3T1)
J)This ‘special thing’, for example, (T) that was, permanently & uniquely, excited to form (T1)!
Yes, this new (T1), if put in an electromagnetic filed, formed by coli (J),
this new ‘special thing‘ (T1) will ‘disturb’ excite the magnetic filed the same unique way,
how it was permanently excited at (O),
from (T) to (T1)!
A pulled or stretched spring, or, a rubber band hits back with same force that pulled it๐คทโโ๏ธ!
The unique magic that happens at (J), is perceived as the unique password, or data, or whatever๐๐คฃ๐คฃ!
Now, stop imagining, wake up๐๐คฃ๐!
Remember our photo๐ค?
Look๐ณ at this picture below๐!
P) Using a given algorithm (transponder data),
the tool (2J) is commanded to uniquely excite programย ‘the special thing‘ (T), to change it’s particles’ arrangement, into a newer, unique arrangementย (T1)!
F) Using the same (P) algorithm (transponder data),ย the electronic device (F) is commanded, programmed to only expect, accept, the same magic that was used to uniquely excite, program the ‘special thing‘ (T) to change (T1)!
Meaning that, the magic that (T1) causes at (J), should be the same magic that produced it, from T๐!
Remember, aย pulled or stretched spring, or, a rubber band hits back with same force that pulled๐คทโโ๏ธ!
So, the force that pushed (T) to become (2T),
is the same force (magic) that will be exerted at (J)๐คทโโ๏ธ!
HAPA UJANJA tu๐คช!
Aย ‘special thing‘ is put in a vehicle’s key (E)!
Somewhere in on the car,
some electronic device (F) is also put, installed to detect, listen to the havoc (magic) that the ‘special thing‘ย in the key, causes at( J)๐คทโโ๏ธ!
Don’t imagine๐คฃ๐,
all this whatever nonsense is the
vehicle immobilizer system!
That ‘special thing‘ (T1, 2T1, 3T1) in the key (E)
is known as a Transponder!
The electronic device (F), that listens to the havoc (magic) caused by the transponder (T1, 2T1, 3T1), is the immobilizer electronic control unit (immo ECU)
Some call it “immo box“๐ค !
The “immo box” could be a separate unit,
OR,
Could be virtually hidden in the (D) engine’s electronic control unit (engine ECU),
OR,
hidden in some other device,
could be Instrument Cluster (C),
Body Electronics’ Control Unit (B),
or wherever even Tyres๐๐คฃ๐!
Remember๐,
You may click here if you want buy us a drink๐ป!
Jazak’Allah๐ค
A) When the Transponder key (E) is turned to switch-ON (zungusha), the immobilizer electronic control unit (A) causes an electromagnetic field at the ignition switch (J)๐!
F) Whatever magic that,
that Transponder (T1 or 2T1 or 3T1) within the Transponder Key (E),
that kind of excitement (magic) caused to the electromagnetic field at (J),
should match with whatever data is stored in the EEPROM (F), seen๐ค?!
LOST KEY๐ค?
“Whatever” is in the lost key (E) is the same as what is saved in EEPROM (F), iwinjo๐ค?

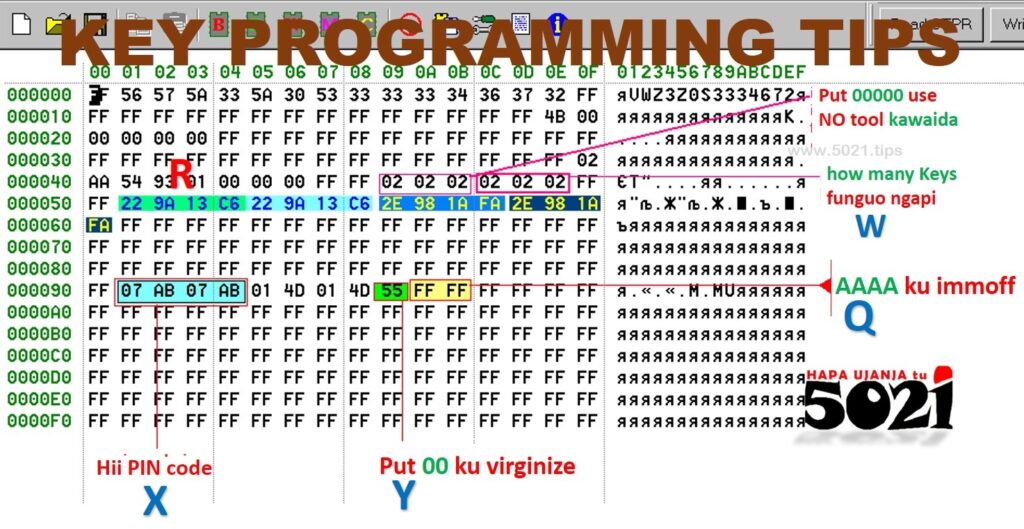

Read the data that is stored in EEPROM (F)!
For all the nonsense about EEPROM work,
don’t click HERE!
I repeat๐น,
For all the nonsense about EEPROM work,
don’t click HERE!
….continuing with our lost key nonsense๐ฅ,
You have read, and now You have the Transponder Data, that is stored in EEPROM (F)!
P) You have read the Transponder data (P),
from the immobilizer EEPROM (F)!
2J)ย Get an empty Transponder (T),
then write the Transponder Data (P),
using whichever tool (2J), finish๐คทโโ๏ธ!
HAPA UJANJA tu๐คช!ย
S) These Transponders (T, 2T, 3T), are virgin, blank with NO unique Transponder Data๐งป๐ป!
The Transponders are waiting to be excited (Programmed)!
S) These Transponders (T, 2T, 3T), are different๐!ย
There are sub-Types, within each type of Transponder!
Like Transponder Type (T) ,
You will find versions, 4C, 4D, etc!
..and again within 4D,
there are other extra versions of 4D,
like 4D67, 4D50, 4D21, 4D5021๐คฃ๐๐, etc!
Z) The unique Transponder Data (P) is what makes (T) to either become (T1) or (T2) or (T3) or (T5021)๐๐๐คฃ!
That is why even if vehicles (S, O, Z, I) are the same, with their Transponder Keys all looking the same, the data in their Transponder Keys, is very different๐!
The key for (S) can’t work on (O, Z, I) and otherwise true๐๐คฃ!

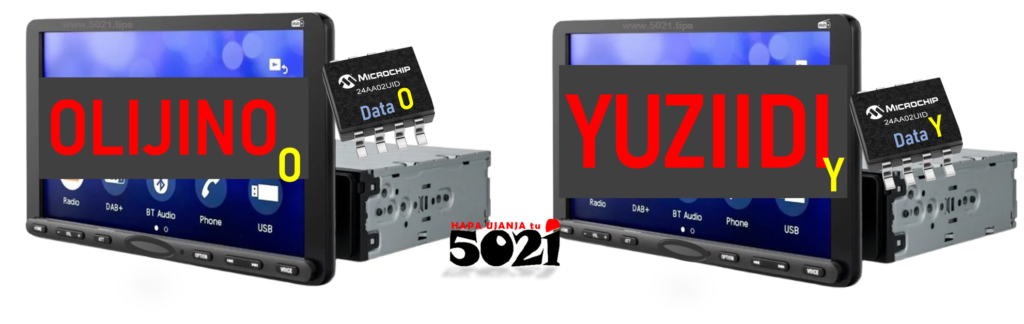

Yes, some EEPROM stores the Immobilizer Data๐ค !
But, the Immobilizer Control Unit (immo ECU) has many EEPROMs on it’s motherboard๐!
So which one to deal with๐ค?
Click HERE
This nonsense could be of help, insha’Allah๐ค!
Yes, still,
Click HEREย
..know the specific, and or, compatible Transponders for Different Vehicles๐คทโโ๏ธ!
Before all that other nonsense of;
(S) Rolling codes (xyz),
immo off, immo ON,
virgin data, immo PIN (password), etc,
With the analog๐Transponder Metallic Keys (X),
We have an idea๐!
Lets also get an idea about (Y) Smart Keys๐!
The IMMO OFF nonsense is below the page๐!
But if You’re NOT patient๐,
CLICK HERE
for
IMMO OFF๐ด
Some of the IMMO OFF files HERE,
are nonsense without a immo off emulator๐!

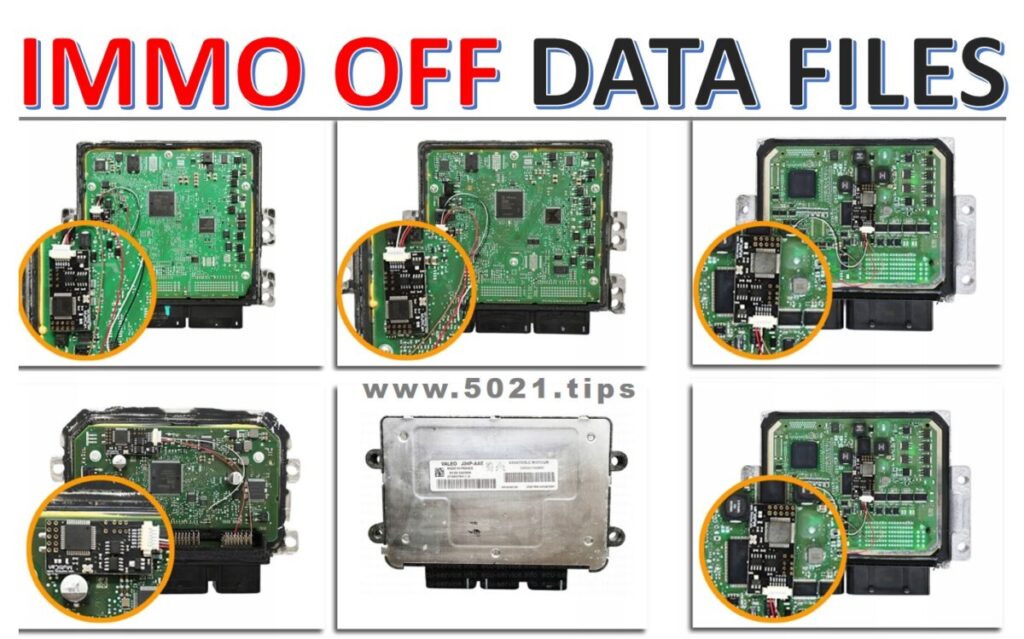

All instructions included whichever ECU needing and not needing, includingย how to join certain electronic components to mimic an emulator๐!
CLICK HERE
Back to SMART KEYS๐!
Note๐!
Some SMART KEYS are justย “cleaned keys“๐
Note๐!
Some SMART KEYS are just,
smart at CAR ACESS, not ENGINE START๐ค!
S) Key must be inserted then press START/STOP button๐คฎ!
O) Key must be inserted then twisted, turned to START/STOP๐ณ!
Z) Everything Keyless๐!
Whether, CAR ACESS or ENGINE START,
the key keeps hidden in the knickers๐!
Using(O) for example๐ง!Its ‘technology‘ is almost as,
good as the ‘analog’ metallic Transponder Key๐คฃ!
Assume, Keys (S) & (O), as just ‘semi–SMARTKEYS‘๐!
Lets do the fully SMARTKEYS (Z)
Let’s use of them for this study๐!
Whatever mix of, Wireless & Electrical, Technology used in the SMART KEY,ย insha’Allah๐ค!
Just know that the ‘thing’๐switches
electrical data into radio-wave data
back and forth๐๐คฃ
If You wish to deep into electronic components on any control unit’s motherboard, circuit board, then..
Click HERE
Back to our SAMRT KEY๐๐คฃStudy this picture๐ it’s
SMART KEY system’s algorithm!
NOT that every smart key’s the same,
..but similar๐ค !
It’s the ENGINE IMMOBILISER (start) FUNCTION๐!
H) The smart key is in the pocket๐คทโโ๏ธ
K) Press START/STOP (K) button that is linked to (F)!
F) The BCM (F) quickly powers (G) and (D)!
G)The LF antenna (G) tickles the Key to spit out it’s ID!
D) The HF antenna sends the received ID (X) to ( E)!
E) The Certification, smart ECU (E) verifies Key’s ID!
Tells BCM (F) the ‘hakuna matata’ key is ok๐!
F) The BCM (F) just allows for Ignition Switch-ON!
(That is, if brake or clutch pedal (J) was NOT pressed)
NOTE๐
The BCM (F) has power supply sessions๐!
A session to power ON the antennae (D & G)!
A session to power ON Certification Smart ECU (E)!
A session to power ON the ID-code ecu (B)!
J) If the BCM (F) gets both signals,
from START/STOP button (K) and
from the brake or clutch pedal sensor (J)!
It means the Engine needs to be started,
and so the BCM (F) will power ON (B)!
Y) As soon as the ID-code ecu (B) wakes up, it tells the Smart ECU (E) to verify it’s self!
W) The ID-code ecu (B) wil also tell the Steering lock ecu (A) to verify itself!
X)The ID-code ecu will also tell the Engine ecu (C) to verify itself!
If everything validates, the Engine ECU will get a Start-Engine Signal!
…remember the algorithm could vary by vehicle make๐ค!
…remember the algorithm could vary by vehicle make๐ค!
…remember the algorithm could vary by vehicle make๐ค!
…remember the algorithm could vary by vehicle make๐ค!
…remember the algorithm could vary by vehicle make๐ค!
Remember๐,
You may click here if you want buy us a drink๐ป!
Jazak’Allah๐ค
S)Let’s start the rolling code (xyz) nonsense๐คช!

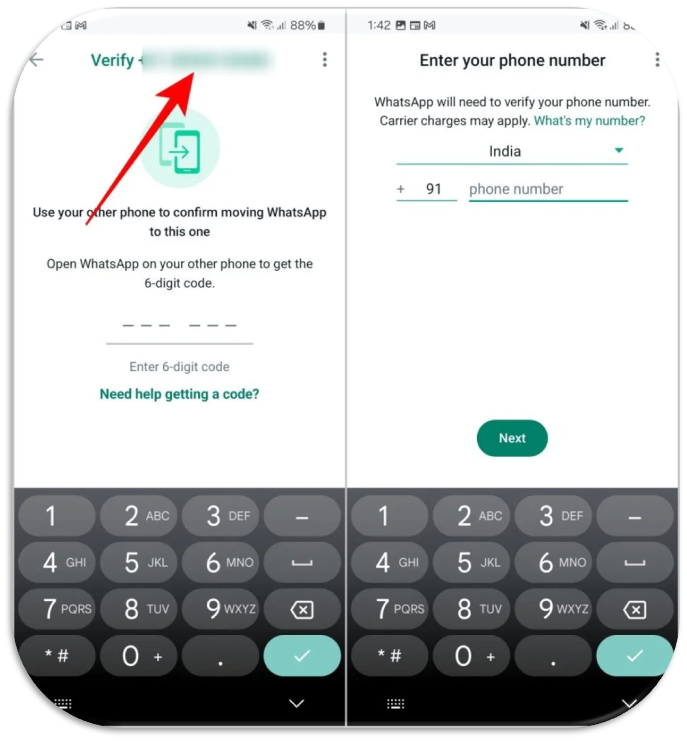

Using WhatsApp, for example๐ค!
As You would register a WhatsApp number,
a 6-digit code is sent to that number๐!
WhatsApp expects You to write the same number so as to verify ‘wah gwaan‘๐ฅ!

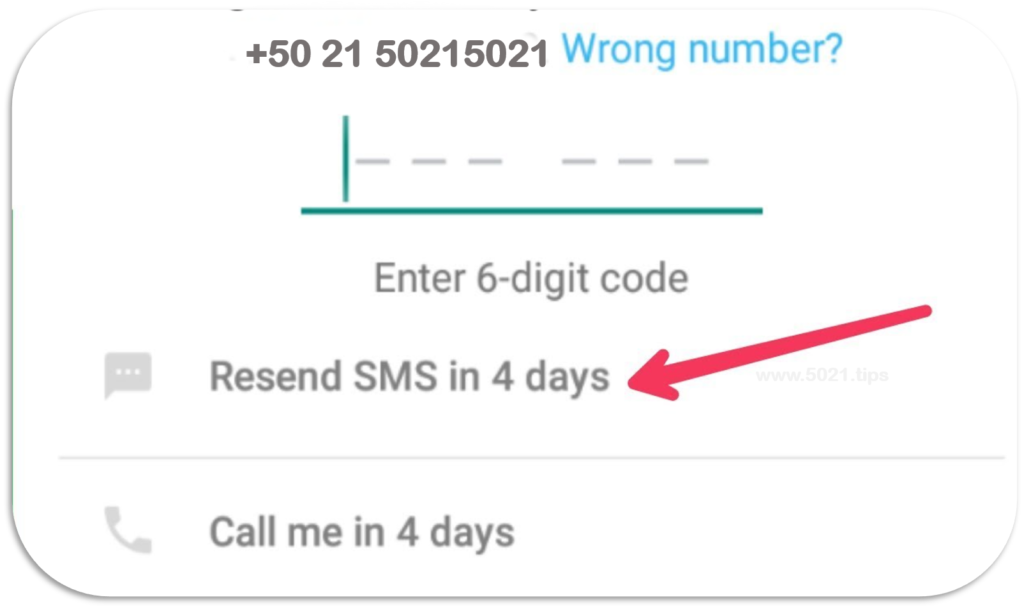

Thisย WhatsApp code is valid only ONCE๐ค!
Coming back to๐ our nonsense๐!
The๐ security code in (E or 2E) must match with what is in (F or 2F)๐ง!
If I can with ‘ujanja’ get the security code in (E or 2E)๐
I just make another key, then…๐คทโโ๏ธ!
Sasa, the rolling code (or hopping code) ‘ujinga’ is where the key (E or 2E) and car’s respective ECU (Electronic Control Module),
could be ECU’s (A or B or C or D whatever),
they agree to agree on using a unique,
one-time (WhatsApp) code ๐!
Depending on the vehicle’s algorithm,
This rolling (changing) code could be changing on every after Engine is allowed to start๐คทโโ๏ธ!
Like every after a successful ๐Zungusha๐!
…this code could be changing on each transmission, as in, changing with every pressing of the key,

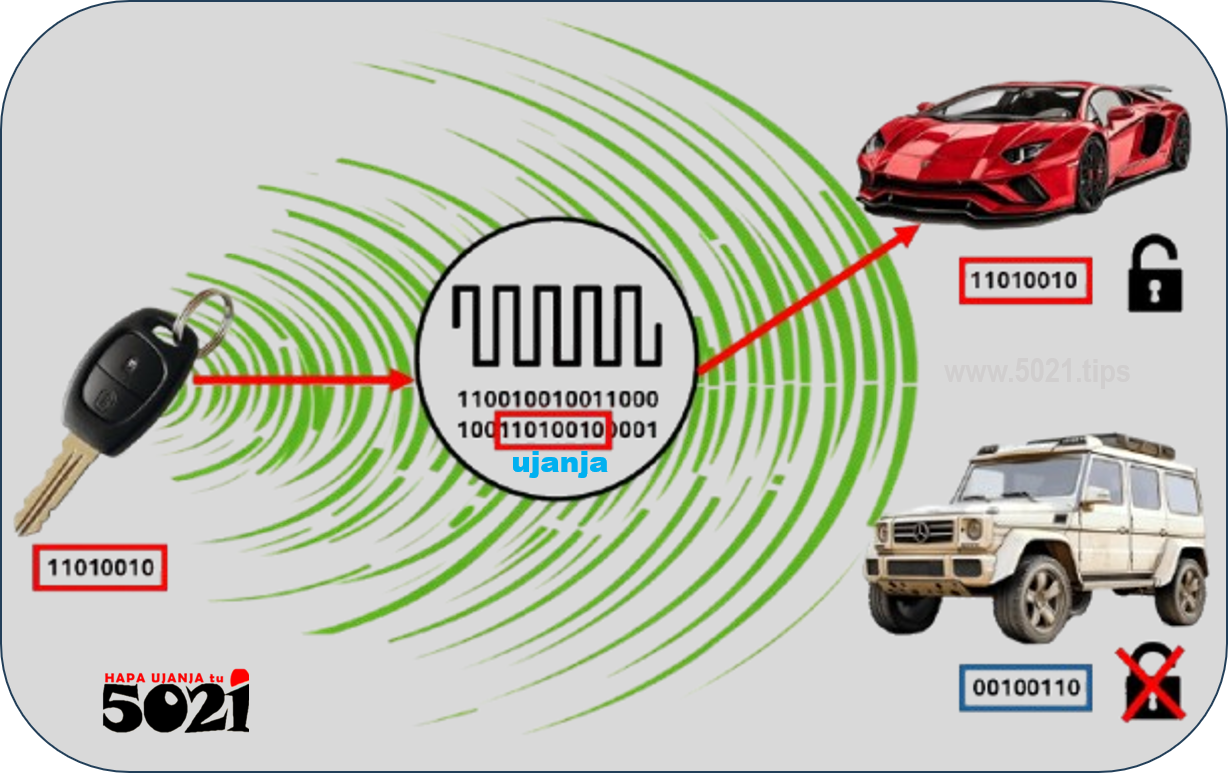

to prevent a ‘mjanja’ from recording and replaying the signal to unlock the vehicle๐คช!
So, if a code is intercepted, it’s useless๐งป๐ฝ!
The stolen code is useless because the car is already expecting the next code in the sequence๐คทโโ๏ธ!
Like๐, if for now, the key and the vehicle aggress on code Y (4487931)!
The next expected code is X (8007764)๐คช!
This rolling code nonsense could be between
the key(E or 2E) and a respective ECU (A, or B, C, D)
OR
This๐ rolling code nonsense could further to be between certain ECU‘s (D & E)๐!
Like๐
(A and D) have some rolling code algorithm between them, to verify the key๐to do whatever nonsense in the vehicle without starting the engine๐!
Further, after (A & D) agreeing,
(D & E) also have some rolling code ‘ujinga’ between them๐คทโโ๏ธ to allow the engine start๐ป!
Just like with WhatsApp, some nonsense could happen that the code verification algorithm becomes stupid, out of sync that it requires a specific procedure to return to the normal code verification๐งโโ๏ธ!
So, in specific vehicles, if a key or ECU is out of sync,
it usually requires a specific procedure (such as turning the ignition on/off several times) to re-synchronize with the ECU๐ฅ!
This nonsense,
HERE
โ
..is NOT for getting rolling codes๐ค!
It isย for getting fixed key ๐codes
Click HERE
โ
Fixed code๐ค?
For example
๐
Smart or Certification ECU (E) keeps & expects one key code (X), from key (H)!
ID-code box (B) keeps and expects fixed codes;
L-code(W) & G-code (X) & S-code (Y)
This๐ ‘ujanja’ is usually for fixed ๐codes,
although… ๐ค!

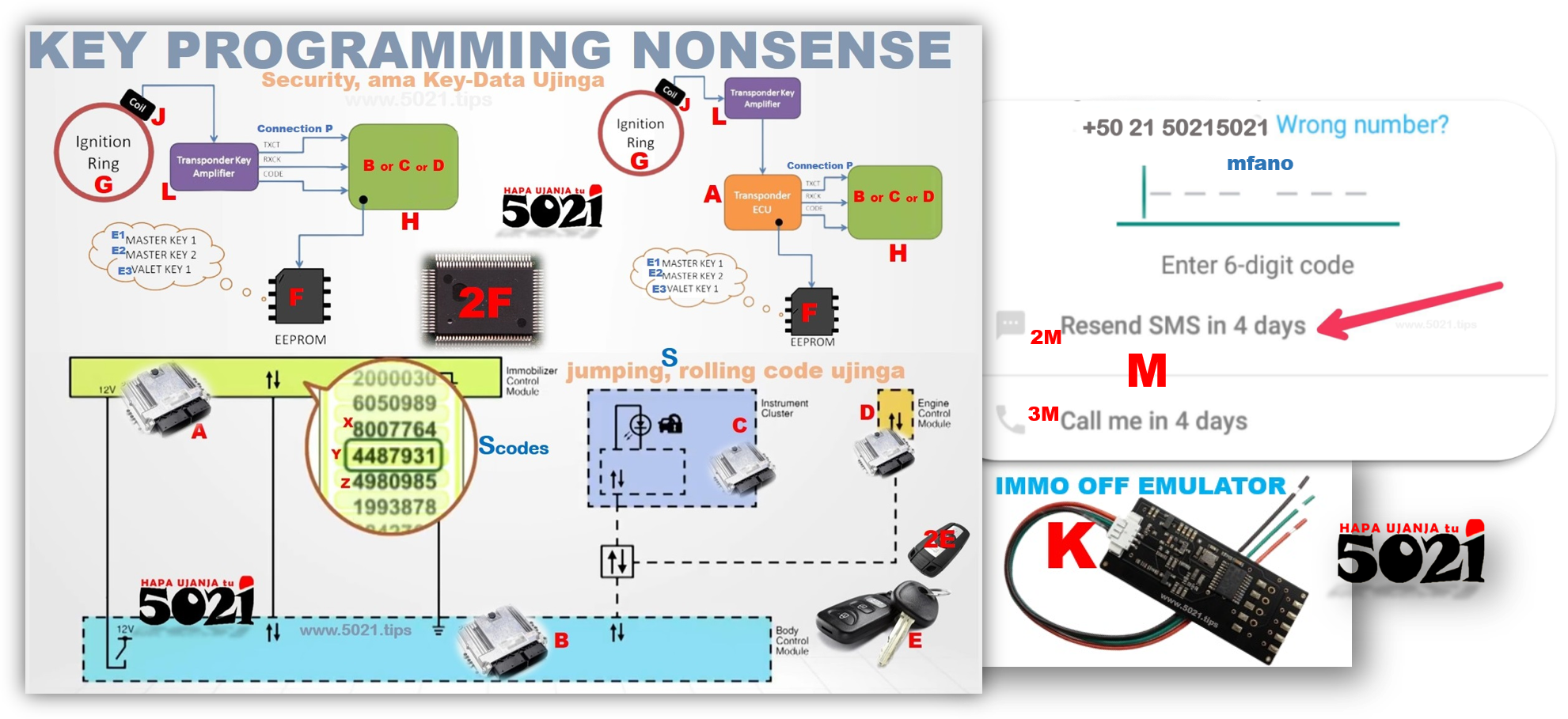

IMMO OFF emulator (K) is used in some car hacks involving to disable the security system๐!
Emulator (K) may be used to play the nonsense of regenerating the rolling codes๐!
Some of the IMMO OFF files HERE,
are nonsense without a immo off emulator๐!
All instructions included whichever ECU needing and not needing, includingย how to join certain electronic components to mimic an emulator๐,
CLICK HERE
for
IMMO OFF๐ด files
As we continue with component protection..
Click HERE
With longer Component protection nonsense๐!
Otherwise…
Imagine๐งโโ๏ธ!
We have our three Vehicles (S, O, Z)๐ค !
These (S,O,Z) are the same, but just look similar๐!
If truck (Z) has a problem๐ฉบ,
You could ‘Chaga‘ ๐ค ‘Kikuyu‘ย a spare part off,
from (O and or S) can ๐ฉบrepair (S)๐คทโโ๏ธ!
Spray Truck (S) withย ‘Baganda‘ witchcraft water๐ฒ!
Every part on truck (S) sprayed with ‘Baganda‘๐ณ!
The ‘Baganda‘ witchcraft water๐ฒ
is some unique, specific liquid ๐ปdata๐ค!
If You suspect a part was stolen from vehicle (S),
yet this vehicle (S) had already been sprayed with the witchcraft water๐ค,
use a certain tool, scan that suspected part๐คทโโ๏ธ!
But the vehicle with a stolen part will still move๐คทโโ๏ธ!
Click HERE
With longer Component protection nonsense๐!
OR…
To protect the some electronics in on a vehicle๐ค,
Put an EEPROM chip with unique data๐คทโโ๏ธ!
Before that electronic part can fully be operational,
it’s data must first be verified๐คทโโ๏ธ!
For ๐example๐!
Component (S) to fully work,
it’s data must first be verified by a central module (D)!
You have seen certain nonsense๐,
a vehicle can be moving properly,
but some of it’s electronics’ functionality limited๐ก!
Click HERE
With longer Component protection nonsense๐!
We’re continuing to renovate this page,
If You found it here,
kindly check back within 43200 seconds,
You may, will find some new nonsense๐คช!
Insha’Allahโ!
Remember๐,
You may click here if you want buy us a drink๐ป!
Jazak’Allah๐ค
Whatever nonsense is shown in this video is more nonsense if You don’t first go through all the rubbish we earlier discussed on how these immobilizer systems work, where which why when what components involved, seen๐?
Kwanza moja kwa moja, ukumbuke how immobilizer systems work,
what components involved,
why whatย and how to supercalifragilisticexpialidocious do if lost or spare keys๐คทโโ๏ธ!
HAPA UJANJA tu๐๐คฃ๐๐
Kwanzia hizo TRANSPONDER KEYS funguo za chuma za kawaida, mpaka hizo SMART KEY, tunaanza na mifumo, jinsi zinafanya kazi, ili uweze kuelewa kwanini, mashine fulani ndo zinazo kamilisha kazi fulani!
TRANSPONDER KEYS
Kwa kutaka kuzuia wizi, walifanya uchawi kwenye gari kwamba isipo kuwa funguo maalum ya hiyo gari maalum, hiyo gari haiwezi kuendeshwa.
Kwenye funguo waliweka kadude fulani kanaitwa Transponder
Sasa haka kadude namna tulivyoneshana kwa video, kuna neno siri ama PIN a.k.a password ambao lazima ifanane na ilyo kwenye gari. Isipo fanana gari haitawaka!
So, kwa hii video tulijaribu kuoneshana namna hiizi blaa blaa zote zinafanya kazi
Ina maana hiyo funguo maalum ya kuendesha gari maalum ikipotea lazima ufanye uchawi wa ziada kuirudisha namna tuliojaribu kumbushana katika hii video!
ONYO๐จ: Mara kwa mara kuna ujanja unaotokea wa nmna ya kufanya key programming, so hii ni just basics of what could be done in case๐คทโโ๏ธ!
NISSAN (NVIS /NATS) systems’ ujinga
Ukitaka uchawi wa ziadia kuhusu NISSAN,
unaeza bonyeza HAPA kwenda๐
ย
TRANSPONDER DETAILS
Na hata kama hizo transponder zinafanana kwa muonekano, lakini ziko tofauti kaaabisa!
Yaani ziko na namba mf., ID46, 4C, TPX7, nk kulingana aina ya gari!
Ina maana ukileta tranponder ya Toyota Corona kuiweka kwa system ya Toyota Carina, hazitafanya๐คท๐ผโโ๏ธ namna tulioneshana kwenye hii video
Sasa kuna system zenye funguo za transpoder kama tumeone, na kuna smart key systems
SMART KEY SYSTEMS
Sasa, hizo smart zinabaki mfukoni kwamba unaeza kufungua mlango na kuendesha gari bila kuigusa hiyo funguo!
KEYLESS ama SAMRT KEY SYSTEM ina upande miwili, upande wa kuasha gari KEYLESS IGINITON SYSTEM, na upande mwingine wa tuseme kifahari hiiivi, KEYLESS ENTRY SYSTEM ile yakufungua mlango, booti, kutembeza viti, nk!
So namna hii video inakuonesha tutangaliza hizo part tofauti tofauti
KEYLESS IGINTION SYSTEM
Sasa tukianza na KEYLESS IGINTION SYSTEM tutaona namna SMART ECU ikishirikiana na ID CODE BOX, BODY ECU, ENGINE ECU, nk, kama TRANSMISION ECU, STEERING LOCK ECU, nk, ili kuwezesha engine kuaka kwa kutambua kama ndo funguo sahihi ilioko mfukoni ya huyo mtu anaejaribu kuendesha hiyo gari!
Hii video ni ndeeefu pamoja na maneno mengi ya kurudia rudia ili uweze kuipata vizuri!
KEYLESS ENTRY SYSTEM
Sasa hapa tunajaribu kuoneshana KEYLESS ENTRY SYSTEM, utaona kwamba hapa ni SMART ECU na BODY ECU na componet zingine zinazohusiana…pamoja na uchawi gani unaweza kufanya kukitokea blaa blaa yeyote kwenye hii system!
Unajua kuna mashine nyigi na ni rahisi kutengeneza au kuongeza funguo ya smart. LAKINI ukikosea kidogo tu, ni hatari na kwamba system nzima utakuwa umehiharibu๐คทโโ๏ธ!
So be careful when diagnosising for problems or when using diagnosis machine as we tried ellaborate in this video
SUBARU reminder
IMMO OFF & IMMOBILIZER DECODING
Kufanya IMMO OFF ni ule uchawi kufanya gari iwake na funguo yeyote kama kawaida au kama mifumo ya zamani.ย IMMOBILIZER DECODING๐, ni kama ufunguo umepotea, unafuta kumbu kumbu ya ufunguo, kuirudisha kuwa bikira (virgin) kama mwanamke akiwa ajaolewa, namna gari inavyokuwa kiwandani!
Namna tulioneshana kwenye hii video, kufanya IMMO OFF either unaweka emulator au ku edit data za IC ama chip ya funguo!
ONYO ๐
kama unajelewa niaje, mambo ya EEPROM data blaa blaa, tumekuwekea hapa data za IMMO OFF na DUMPS (virgin Data), otherwise endelea kujifunza niaje!ย
Data za IMMO OFFย
BONYEZA HAPA
IMMOBILIZER SECRET PIN CODES
Na, sometimes, ukiwa na secret codes fulani, ziwe SMART KEYS au TRANSPONDER KEYS, kwa kutumia ata diagnosis machine ya kawaida, unaweza kufanya ujanja fulani!ย
So, tumekuwekea program kuwezesha kupata hizo secret codes fulani!
BONYEZA HAPAย
TRANSPONDER & EEPROM details!
Tena tulijua kwamba funguo ikipotea unaweza kupata code/passsword kutoka hiyo EEPROM ili ukatumbukize kwenye funguo ingine ndo gari iwake, au pia kama control boxi imekufa unatoa haka EEPROM ukaweke kwa hiyo control boxi ingine๐!
Sasa uchawi ni kusipojua EEPROM ya funguo iko wapi na ni gani katika hizo nyingi zilizopo kwenye circuit board, maana iwe control boxi au immo box kuna EEPROM nyingi nyingi.
So hii App๐ฒ ya kwenye simu au na kompyuta๐ป, inakusadia kujua EEPROM ipi au Transpoder ipi inaendana hiyo gari๐ค!
BONYEZA ย HAPA
EEPROM WORK
Sasa tayari umejua ni EEPROM gani ya funguo๐, je unajua nini chakufanya uweze kuisoma, kubadili ili ufanye IMMO OFF au DECODE ili kupata code/password ya funguo kutoka hiyo EEPROM?
So ukibonyeza HAPA utona tulikumbushana au kuoneshana kuhusu data inakuanga humu, inakaje, inasomwa au kubadilishwa namna gani๐คท๐ผโโ๏ธ hizo blaa blaa binary, HEX, address, nk, mara Flash Memory, EEPROM memory, nk!
KEY PROGRAMMING BOOK
Hiki kitabu kina namna ya ku program funguo za gari, mashine gani yakutumia, vifa gani vya kufungua/kufunga kwenye gari, nk!
Yaani unapata almost kila umbea mhimu๐!
Ni PDF๐ฒ popote๐ป kinafunguka!
KEY PROGRAMMING SOFTWARES
Tuseme umepata idea ya namna funguo zinafanya๐!
Na funguo ikipotea umejua kwamba unaweza kutumia data ya EEPROM kuweza kutenegeza ufunguo mwingine AU ukafanya IMMO OFF ukatoa tu immo system ili gari ikubali funguo yeyote.
Sasa changamoto ni kujua uchawi gani wa kufanya immo off au ku program funguo ingine kwa kutumia data ya EEPROM ndo maana ukitaka niaje๐ข!
Tumekusanya kila aina ya programu, yaani software kufanya ujanja wowote kwenye kila gari๐ค, bonyeza tu HAPA HAPA HAPA๐คทโโ๏ธ!
Huu ni mifano namna hizi softyware ziliopo! Ni nyiiingi๐!
BONYEZA HAPA TO DOWNLOAD THIS FULL PACKAGE OF DVD
na TENA na tena, je๐ค
