Whatever f*k happened, SAGEM (Société d’Applications Générales de l’Électricité et de la Mécanique), did sh*t with Johnson Controls and Valeo😎!
So is why some ECU (electronic control modules) are co-branded or cross-labeled among these companies, including Continental🦽🧐!
Insha’Allhah just be smart (open-minded, or also cross-brand minded) while playing about with these ECU‘s,
Sagem, Johnson Controls, Valeo!
Valeo ECU could be identified by the V prefix🧐!

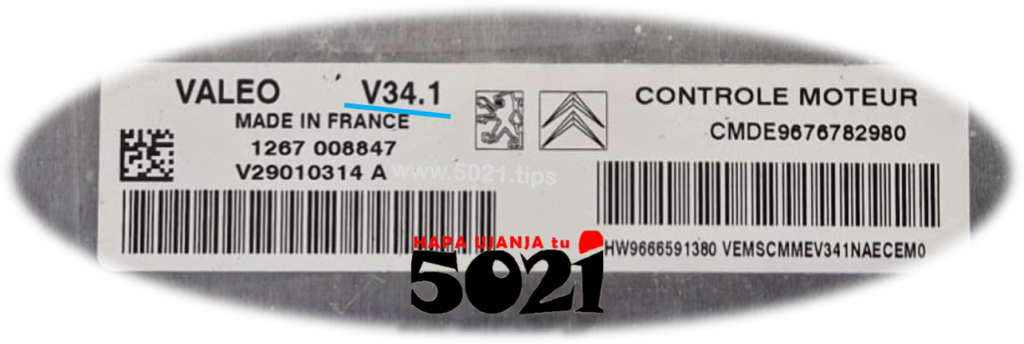

Valeo V34 series (V34, V34P, V34.1, to, V34.5)📌
Commonly used in PSA (Peugeot/Citroën) and Fiat–Alfa–Lancia models running small petrol engines (e.g., Citroën C2 with ST10F273 microcontrollers)🧘♂️!

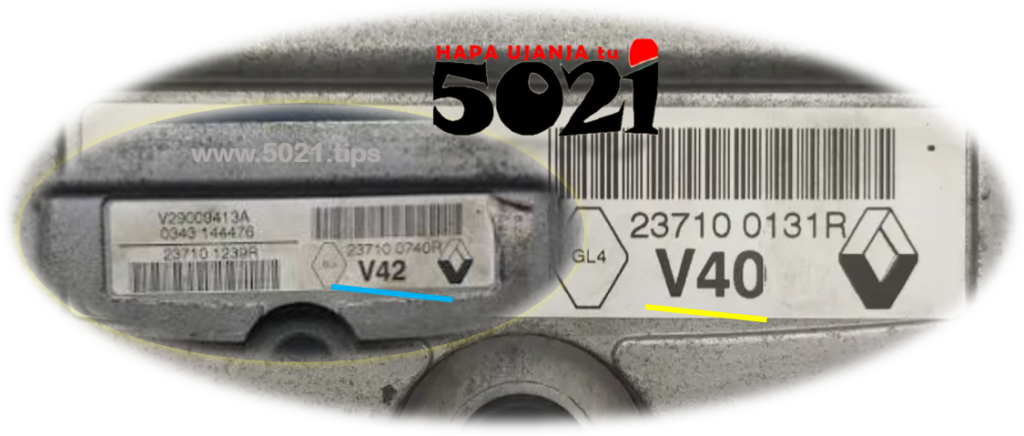

Valeo V40 & V42 series feature integrated immobilizer architecture😎!
Widely deployed across Renault, Dacia, and Opel vehicles (such as the Logan, Sandero, and Clio) with 1.0L, 1.2L, and 1.6L engines🛺🛺!
By the way🥤,
interpreting, locating, testing or doing whatever nonsense on any ECU‘s motherboard should be easy🤷♀️!
Click HERE

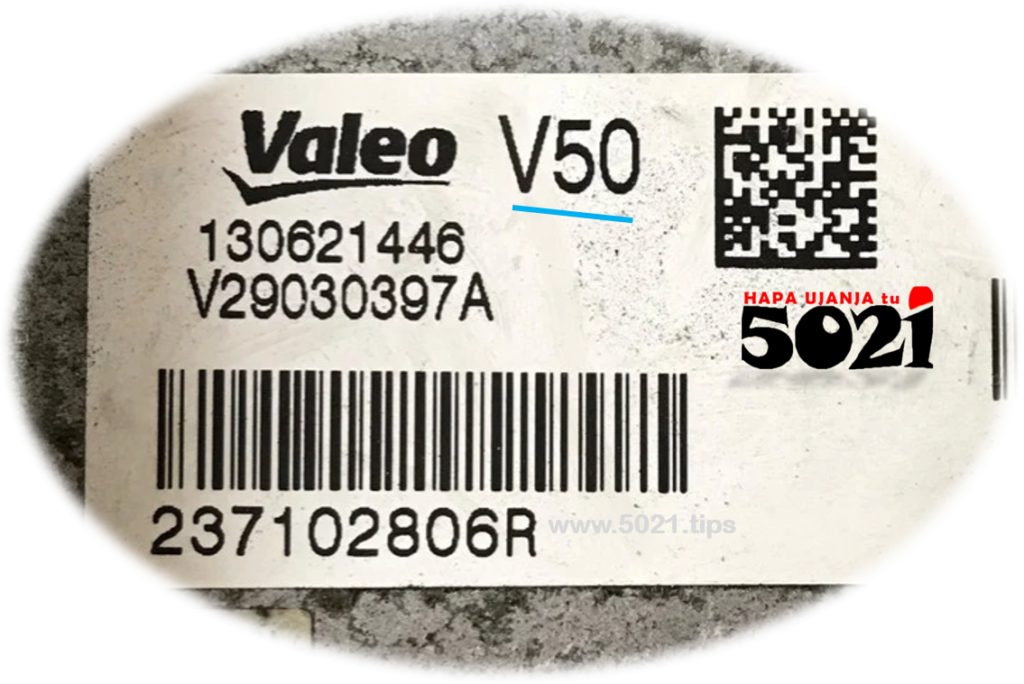

Valeo V50 series (V50.1)🔑
Used primarily in Renault and Dacia vehicles (Clio IV, Captur, Logan II, Sandero II)👌!

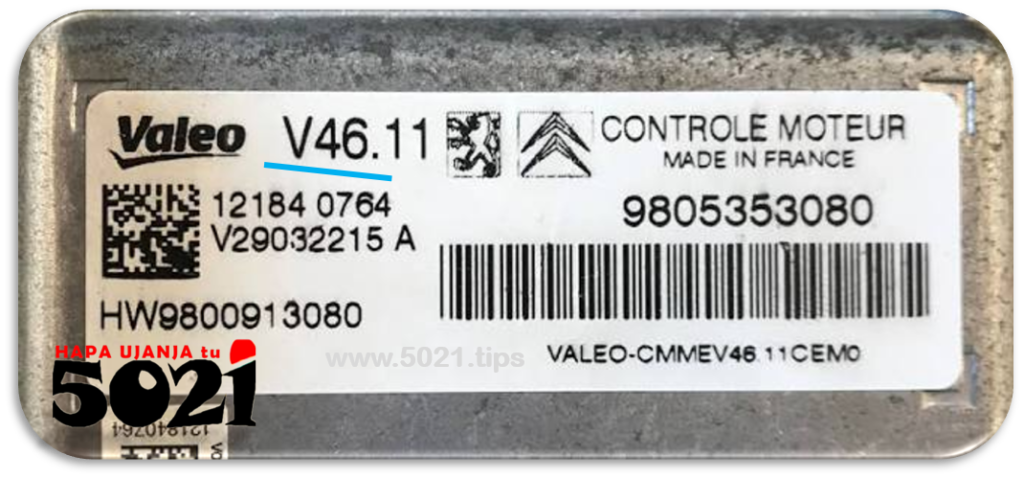

Valeo V46 series (V46.11, V46.12, V46.13)📌!
Used primarily in PSA group vehicles (Citroën, Peugeot) and Opel/Vauxhall models (C3, C4 Cactus, DS3, C-Elysée, 208, 2008, 108, Crossland, etc)🚙🚙!

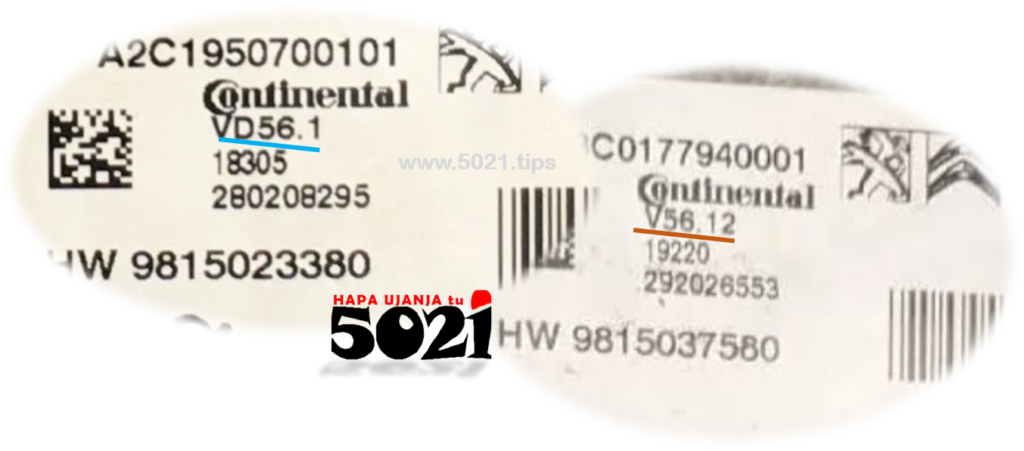

Valeo VD56 / V56 Series (VD56.1, V56.12) are some advanced controllers designed for high-efficiency turbo and direct-injection engine layouts📌!!
Commonly found in, Peugeot, Citroën, DS, Opel, and Toyota, from Citroën C4 Cactus, Opel Combo, Toyota Proace City, Peugeot 208, Peugeot 3008, to Sozi 5021🥂🍻!
By the way🥤,
ALL VEHICLE BRANDS,
use these 👇files to program, reset or deactivate ECU‘s, DPF, EGR, ADblue, Speed limits, do whatever nonsense🧐,
but at Your OWN RISK🤷♀️!
Click HERE
For example🤔, without doing certain hardware adjustments, you stubbornly jump, ignoring the instructions we attach..
..then you foolishly load a stage–3 ecu data to hack the vehicle perform far beyond factory limitations!
You f*k whatever just because of the 2 drinks You gave us for the data, are We responsible for Your ‘ujinga‘😉? yet…
HAPA UJANJA tu!😁😃🤣
Anyway, Click HERE download sh*t🤪
(It’s NO brainer, just COPY & PASTE)✌
Remember,
Johnson Controls, ama (Johnson Controls Automotive Electronics / JCAE), Valeo and Sagem, ECU‘s are cross-branded, share architectures🤷♂️!

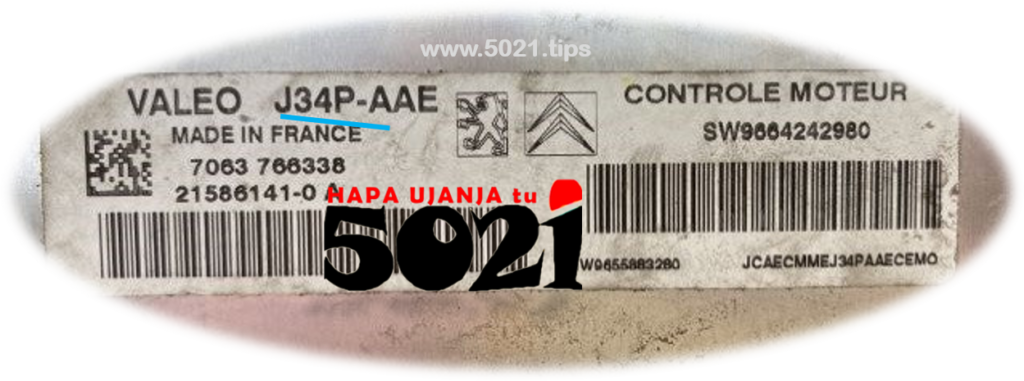

J34P (e.g., J34P-AAE)
Petrol engine ECUs manufactured under the Johnson Controls / JCAE banner🏋️♂️!
Sh*t is heavily equipped on PSA vehicles
(e.g., Peugeot 206, 207, Citroën C3).
Common Hardware (HW) Reference:
9655883280
Common Software (SW) References:
9661960880, 9663717680, 9664637080
Typical EEPROM Chip
ST 95160
(often accessed for pin code extraction or immobilizer work)

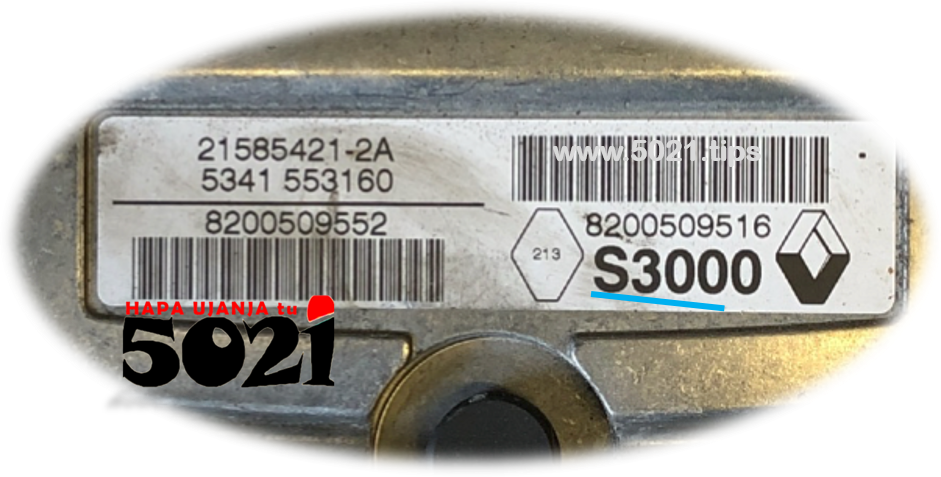

S3000 series common on in Renault platforms.
It commonly runs 1.6L 16V and 1.2L engines in vehicles like the Renault Megane, Clio III, and Scenic😉!
Don’t forget certain Johnson Controls‘ Body Control Modules (BCMs) & Built-in Systems Interfaces (BSI)

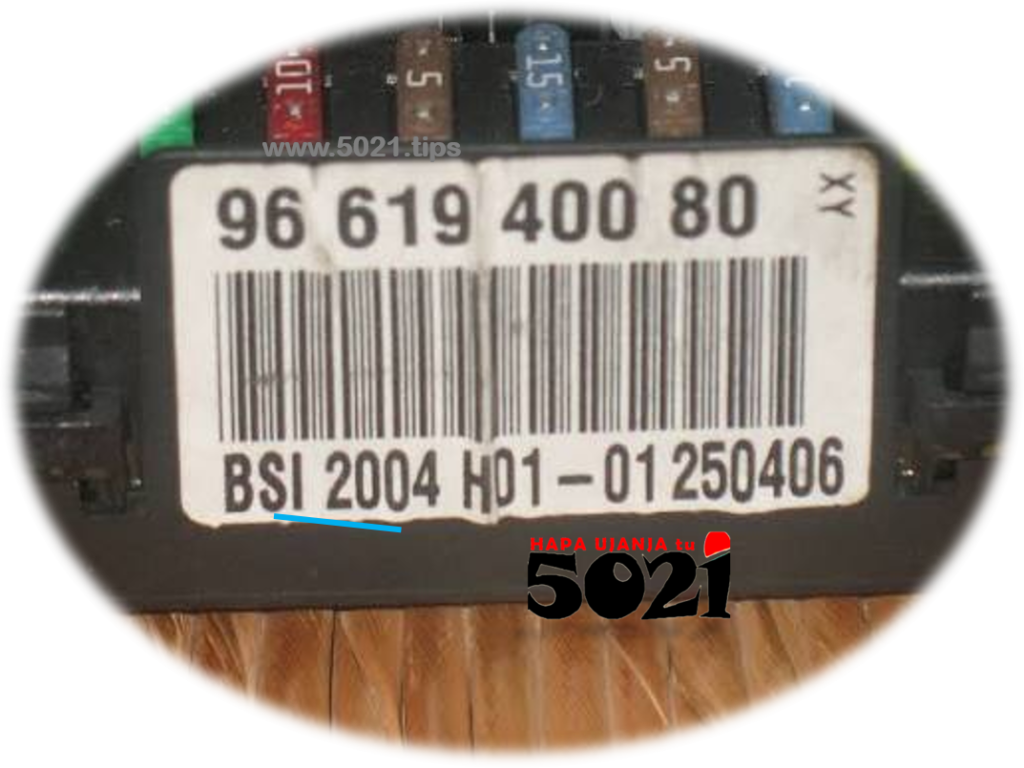

BSI 2004 Series (e.g., BSI 2004 H05-01 / P02)📌!
Found widely across the PSA group (Peugeot 307, Citroën C4) managing interior electronics, immobilizers, and multiplexing architectures.
Common hardware versions include H02 and H05, often tied to PSA part numbers such as 9660105980 or 9656530580.

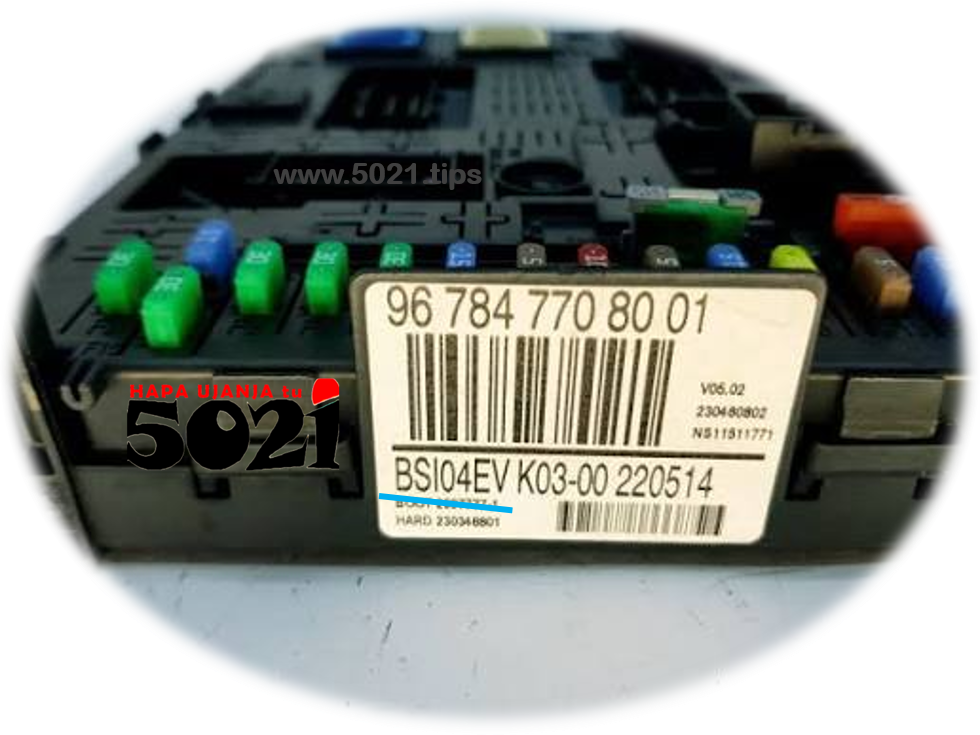

The Johnson Controls BSI04EV is a Body Systems Interface (BSI) or body control module used in PSA Group vehicles (Citroën, Peugeot, and Fiat)🚗🚚!
It manages core electrical functions such as lighting, central locking, and window controls🦼🦼!!
(C4, C4 Picasso, Berlingo, 308, Partner, 3008, 2008, Fiat Scudo / Proace)

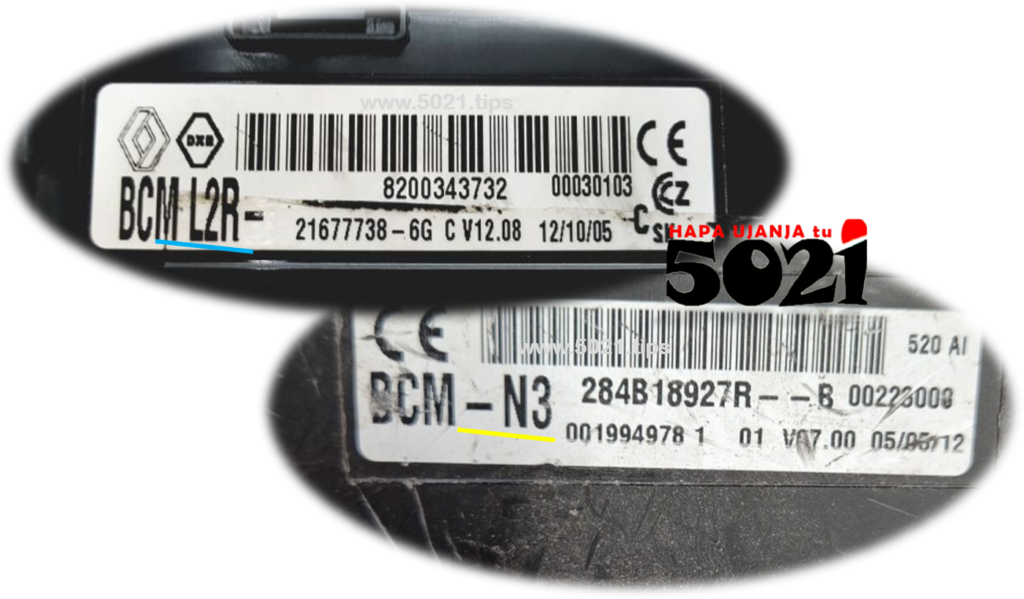

The BCM-L2 / BCM-N3 Matrix are manufactured specifically for Renault-Nissan-Opel alliance😉!
BCM-L2 / L2CR
In smaller platforms like the Renault Clio III😉!
(Handles basic cabin comfort and body electronic features)🤪!
BCM-N3
In larger commercial vans like the Renault Master III, Nissan NV400, and Opel Movano; manages heavy-duty body control and comfort systems😉!
Especially😉, or only🤪,

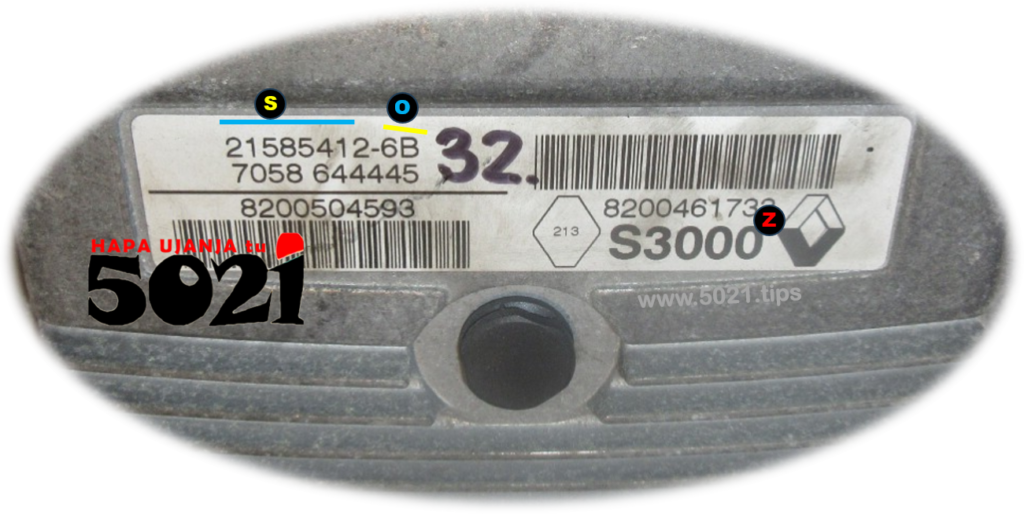

the Johnson Controls ECU’s frequently use the 2158xxxx and 2166xxxx internal part number matrix
(e.g., 21585412-6B, 21585598-3, and 21660521-7)
(S)
The 8-digit prefix identifies the core printed circuit board (PCB) layout and underlying hardware architecture specified by the manufacturer🦽!
(O)
The Suffix (e.g., -6B, -3, -7) defines the specific software flashing, calibration revision, or pinning configuration tailored to a particular engine displacement (e.g., 1.2L or 1.4L 16V) or trim level🤷♂️!
By the way🥤,
ALL VEHICLE BRANDS,
use these 👇files to program, reset or deactivate ECU‘s, DPF, EGR, ADblue, Speed limits, do whatever nonsense🧐,
but at Your OWN RISK🤷♀️!
Click HERE
For example🤔, without doing certain hardware adjustments, you stubbornly jump, ignoring the instructions we attach..
..then you foolishly load a stage–3 ecu data to hack the vehicle perform far beyond factory limitations!
You f*k whatever just because of the 2 drinks You gave us for the data, are We responsible for Your ‘ujinga‘😉? yet…
HAPA UJANJA tu!😁😃🤣
Anyway, Click HERE download sh*t🤪
(It’s NO brainer, just COPY & PASTE)✌

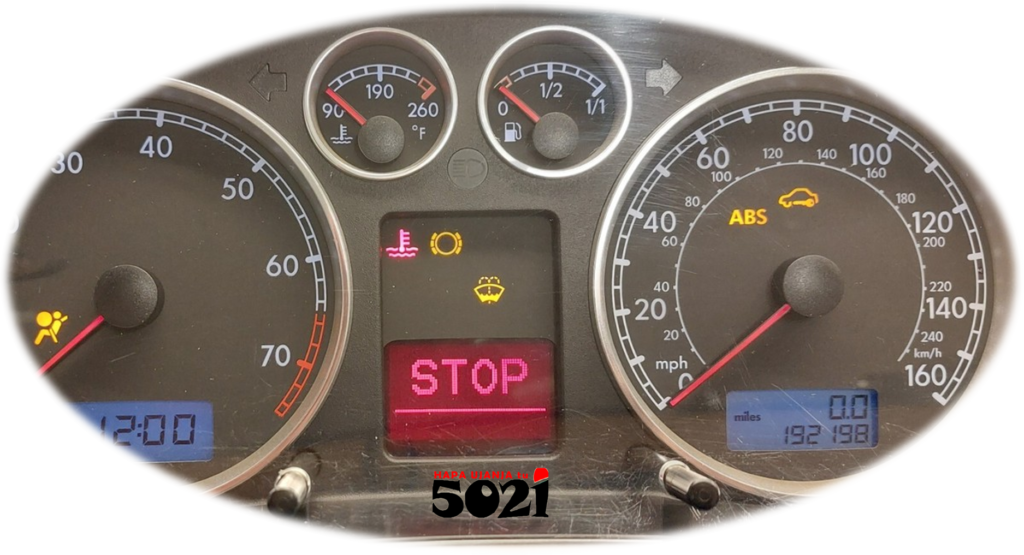

Those modules in the Instrument Clusters & Dashboard Units, like the MQB JCI Series (e.g., 5G0 920 861), utilize a Renesas D7F3426 processor paired with an external 95128 EEPROM chip🧘♂️!
Don’t forget how the Mileage and security tracking data are split and encrypted across both the processor flash and the external EEPROM memory 🤷♀️!
By the way🥤,
interpreting, locating, testing or doing whatever nonsense on any ECU‘s motherboard should be easy🤷♀️!
Click HERE
The default, Sagem (Société d’Applications Générales d’Électricité et de Mécanique), may have unique serries, including👇;

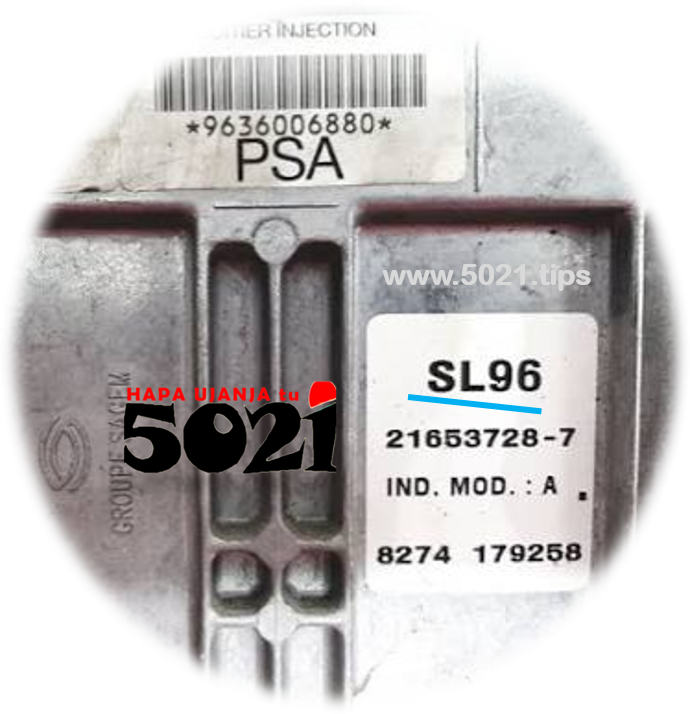

Sagem SL96📌
Uses resin-sealed architecture, as with multi-point injection configurations🧐!
Peugeot & Citroën models (e.g., Peugeot 406)🚙🚙!

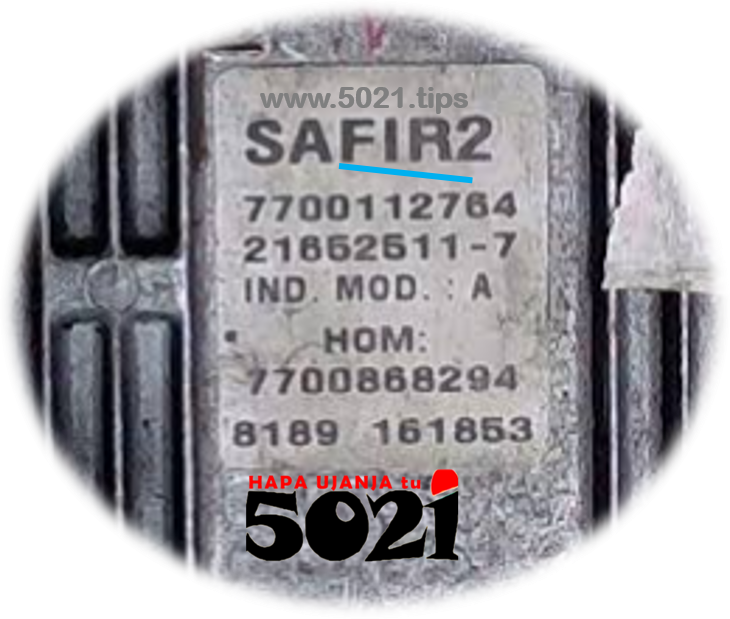

Sagem Safir / Safir 2📌
Early injection/ ignition computer units used heavily in Renault and PSA group vehicles👌!
Used in classic 1990s Renault models (like the Clio and Twingo)🚧!

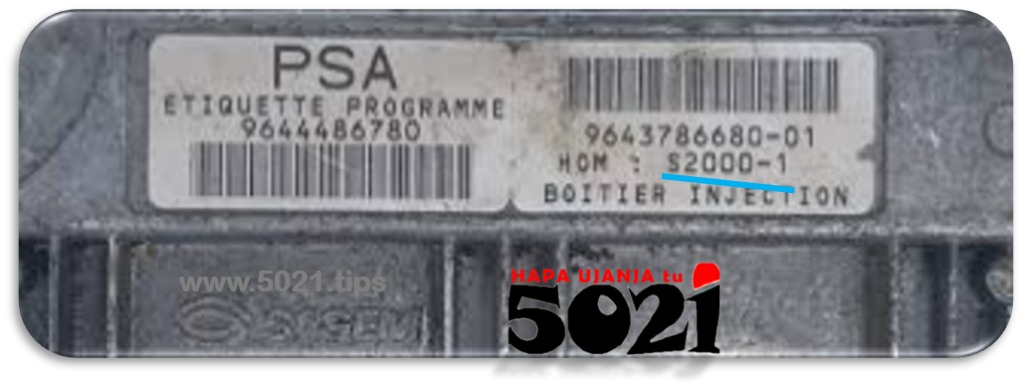

Sagem S2000📌
Highly modular unit with variants like,
S2000 C167 and S2000RPM✌!
Used extensively in Renault, Peugeot, and Citroën vehicles (such as the Peugeot 206, Citroën Xsara Picasso, and Renault Megane II, Renault Espace, Laguna, etc)🏋️♂️🏋️♂️!
Sagem S3000📌
Successor to the S2000☝
Uses SH705x microprocessors👌!
Controls petrol and diesel engines🚗🚚!
Found in,
Clio III, Megane II, and Laguna II, Megane III!

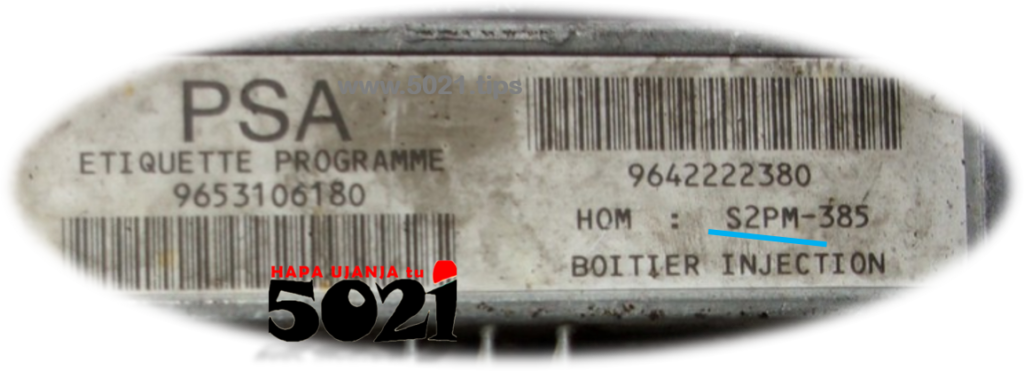

Sagem S2PM is some used in Micro-hybrid and standard multi-point injection units🧐!
AS utilized in compact cars like the Citroën Berlingo and C3🦼🦽🚗🚚!
By the way🥤
ECU programming, reading and or writing data, can be done via boot, bench, or OBD modes🤷♂️!
There is difference in data read/written across these three methods because of varying levels of hardware access, communication protocols, and security restrictions🤷♀️!
Click DOWNLOAD
👇
HERE HAPA
👆👆👆👆👆👆👆👆👆👆👆
This rubbish is some on, if there be a challenge on, which what where how to connect the Control unit’s ping terminals , inshaAllah🤷♂️!
May be whatever is causing You believe MUST do some nonsense to the vehicle, is some minor external problem with the sensors or actuators🤷♂️!
So, this ujanja is how to check, verify all the control electronics in the vehicle, are in proper order!
click here
👇
IMMO OFF files
☝☝
click
These files to disable immobilizer system so the ecu accepts any random key used!
HAPA UJANJAtu, hii ndio jinsi ya kugundua, kupata na kupima componets za ECU, kisha suluhisha shida hiyo. inshaAllah👇
ECU cloning, duplicating or switching memory data’s,
flash memory data, EEPROM memory data, jogolize data,
HAPA UJANJA tu!
WinOLS ni programu yenye uchawi wa kuwezesha kubadilisha, kurekebisha data iliyomo kwenye ECU.
Ina maana unaeza kutoa/kuzima hizo mifumo zenye usumbufu kwenye gari, zikiwemo IMMOBILISER (kufanya immo off). kutoa DPF, EGR, ADblue, kubadili TURBO zenye umeme, yaaani inafanya kazi nyingi kama ECU tuning, uamuzi ni wako tu🤷♂️!
Click HERE
Ujanja wa EEPROM work ni muhimu, ukitaka kumbuka niaje,
…bonyeza HAPA UJANJA tu
