Just use this story so You may understand every whatever nonsense about these control units labeled, VDO, SIEMENS, CONTINENTAL, VITESCO, and soon words like, SCHAEFFLER, SOZISK, etc, could be confusing😀😁😂!
VDO (Vereinigte DEUTA – OTA)
…stands for
United DEUTA – OTA
VDO was a f*k between;
DEUTA (Deutsche Tachometer–Werke)
German Speedometer Works team,
and
OTA Apparate (Offenbacher Tachometer–Werke)
Offenbach Speedometer Works!

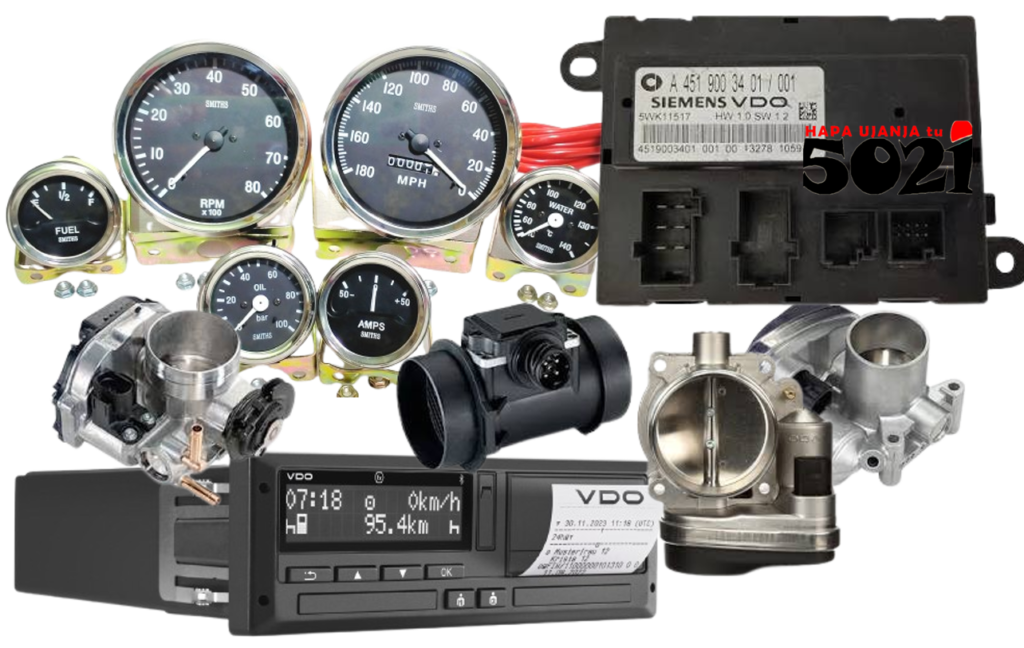

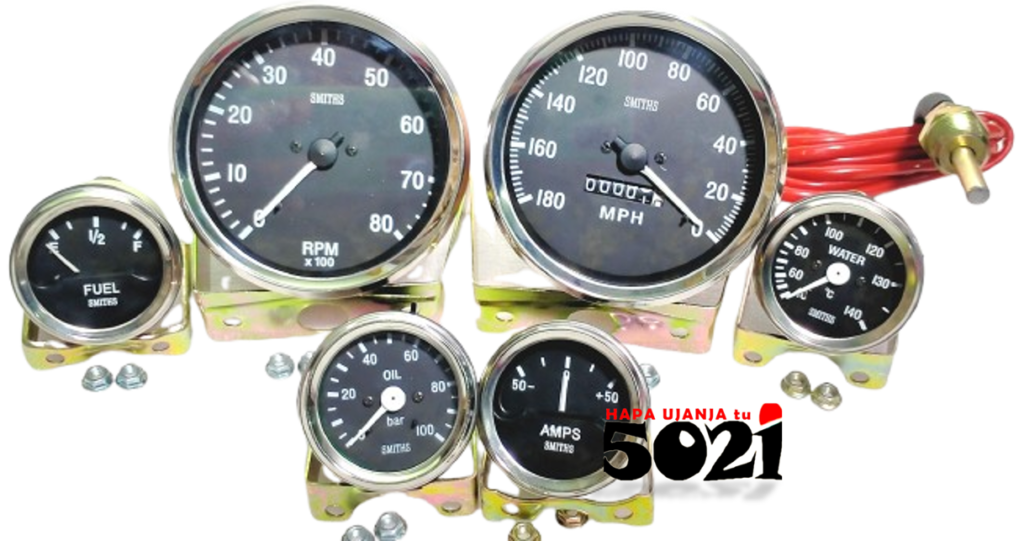

VDO was making tachometers & other gauges📌!

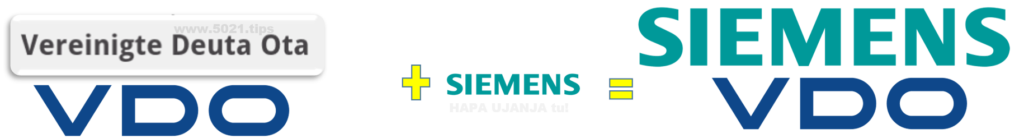

Siemens VDO🤔?
Siemens bought VDO🤷♂️!
All Siemens electronic and electrical systems, notably electronic injection systems, ECU’s, electronic dashboards, and navigation systems, were then labeled as
Siemens VDO🤷♀️!

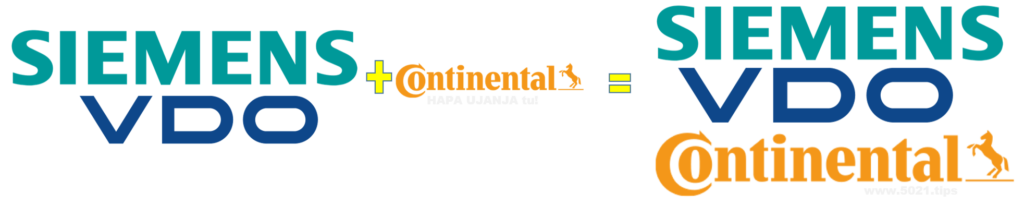

Siemens VDO Continental🤔?
Whatever Siemens‘ ECU division was acquired by Continental👌!

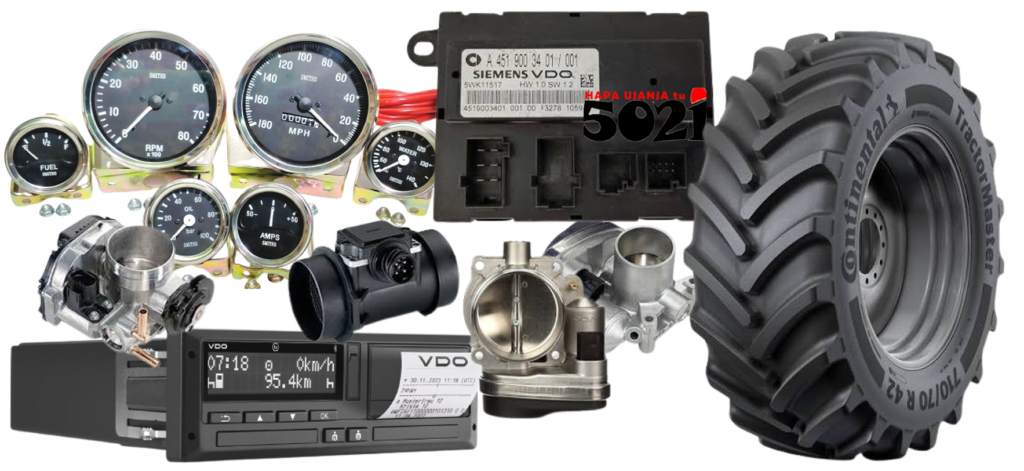

Continental Niiga’s who at the time specialized in tires, braking systems, and other automotive components, by integrating Siemens VDO‘s ‘ujanja’ every is now HAPA UJANJA tu😂😁!
How the ‘Babylon‘ run their games, a company can have billions of departments, with different names🤷♂️!

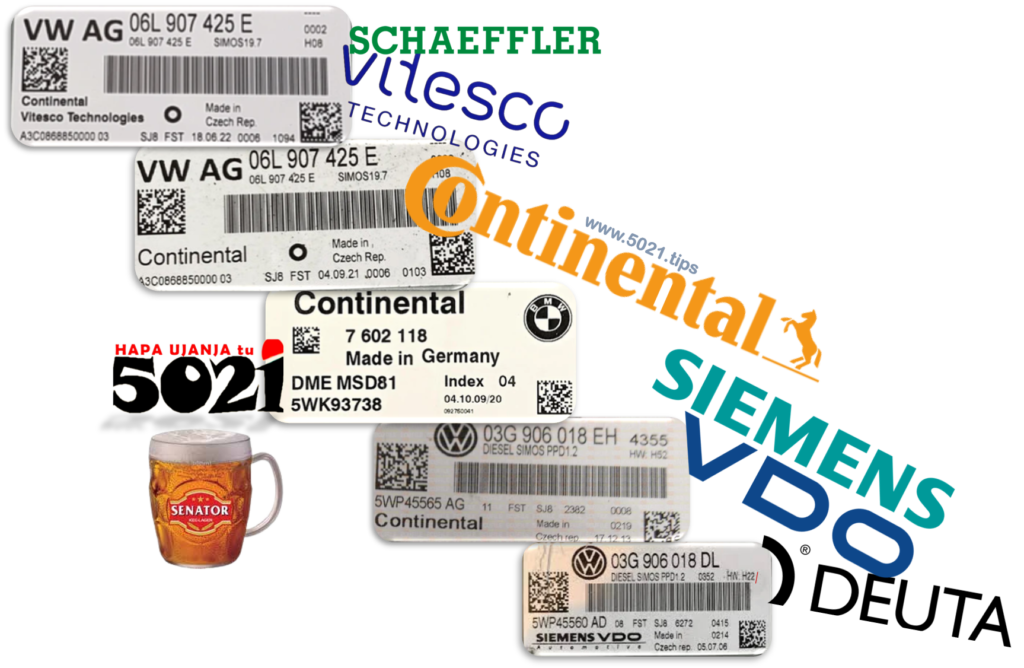

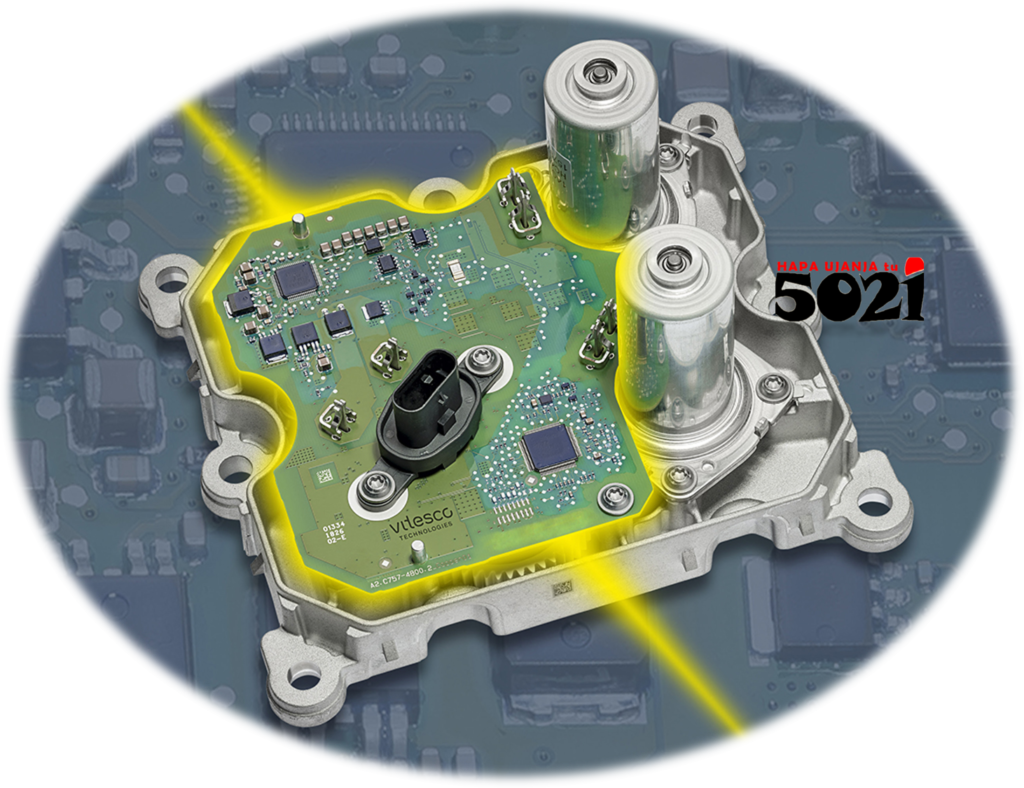

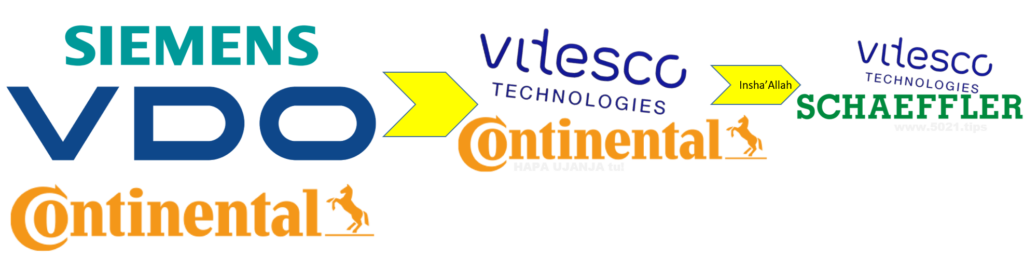

So, within Continental, there is VITESCO technolgies doing control units, which VITESCO also has (could have) SCHAEFFLER as their side–bitch🤪!
So, when you see an electronic control unit (ECU) labeled as VITESCO, insha’Allah may it NOT make sense to You, p*syclat😁😂😀!
By the way🥤,
interpreting, locating, testing or doing whatever nonsense on any ECU‘s motherboard should be easy🤷♀️!
Click HERE
The labels, VDO, SIEMENS, CONTINENTAL, VITESCO, and soon words like, SCHAEFFLER, SOZISK, etc, should NOT be confusing, seen🤔?!
Niiga, whatever whenever wherever the labels ,VDO, Siemens, Continental, Vitesco Technologies, are integrated as ECU labels, just know that their ECU generations primarily categorized by the specific ECU families they power🚧!

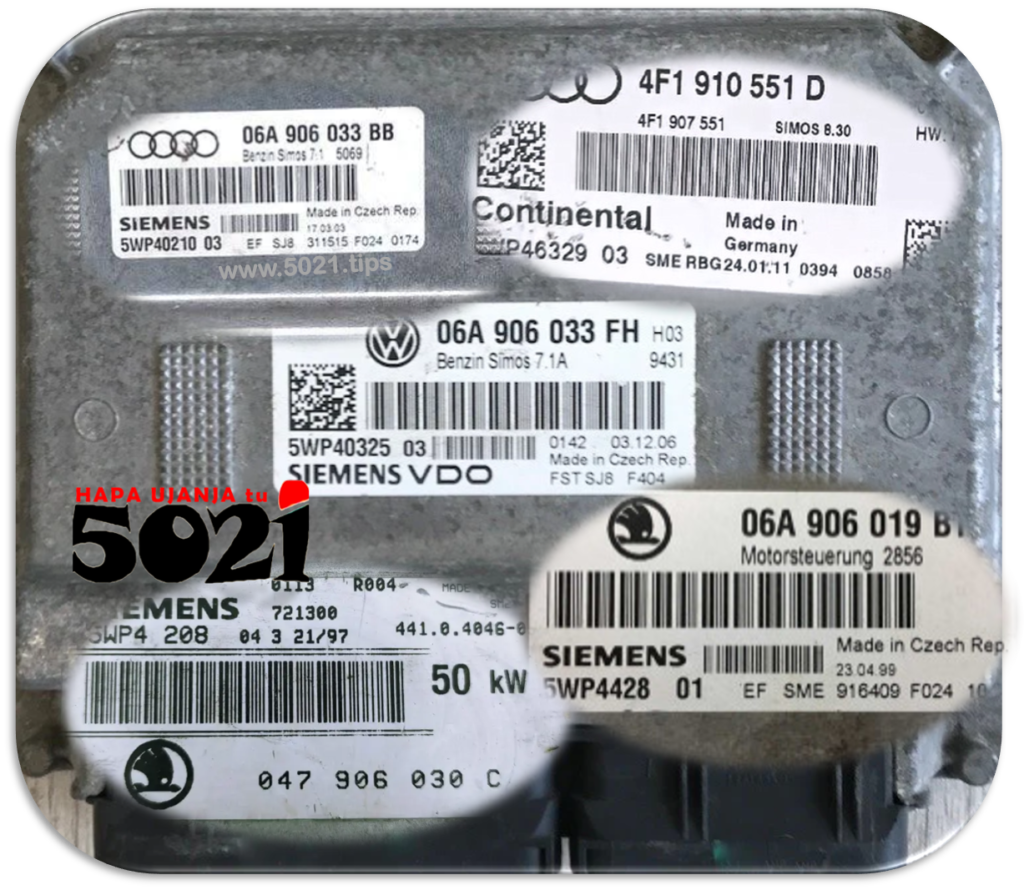

SIMOS
Primarily for Volkswagen Auto Group (VAG), including, Audi, Volkswagen, Skoda, and SEAT!
Hyundai/Kia!
Simos were in series according to capability and computing power🩺!
Insha‘ Allah, whichever earlier (and rare) versions)🤪!
Simos‘ series 3 to 7 where for Petrol engine ECU’s through Simos 3PC to Simos 7.1A😉!

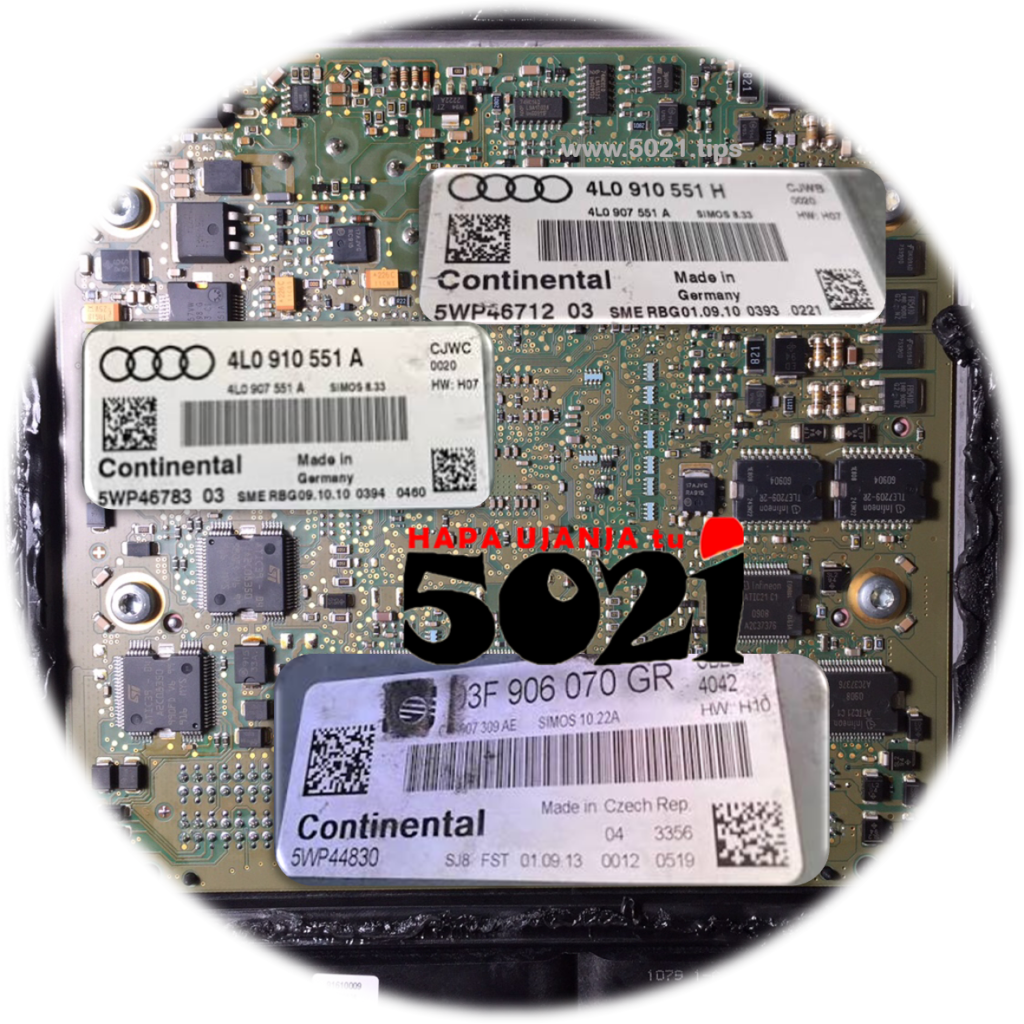

The SIMOS 8.x series designed for V6 and V8 engines (especially the 3.0L TFSI and 4.2L/4.0L engines), utilized advanced features like valve lift, supercharger/turbocharger management🥂!
Simos 9 series were also Petrol electronic control units used in smaller VAG engines (e.g., 1.2L and 1.4L), optimizing fuel–to–air ratios and emissions📡
SIMOS 10 / 12 series then transitioned to highly complex torque-based monitoring, managing small-displacement TSI engines with advanced valve lift and thermal management⚙⚙!
SIMOS 18 series came out as modern VAG 1.8/2.0 TSI platforms, utilizing large flash memories, Tricore microcontrollers, and sophisticated hardware🚑!
SIMOS 19 series was the iteration featuring advanced encryption, widely mapped in contemporary VAG turbo-petrol vehicles🥤!
SIMOS PPD used for Pump–Düse (Pumpe-Injector) diesel engines, notably known for incorporating piezo injector technology🏹!

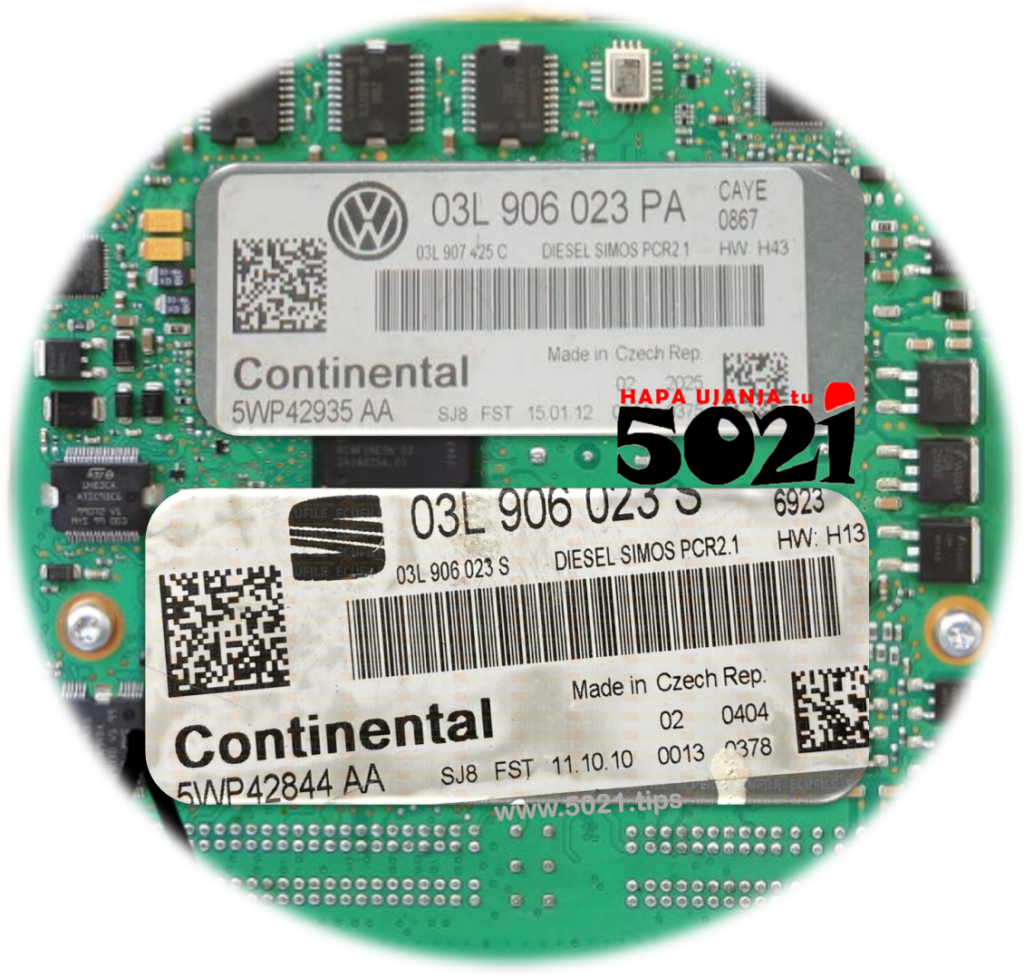

SIMOS PCR2.1 is heavily used for the TDI (diesel) common rail engines. It controls sophisticated injection timing, EGR, and DPF emissions🦽!
SIMOS 16.x series as found in premium VAG vehicles (e.g., Audi 3.0L TFSI engines) for dual-injection systems and complex variable valve timing management⏰!
The, SIMOS 18 – SIMOS 19, as in, like SIMOS 18.x (18.1, 18.10, etc.) for in 1.8L and 2.0L TSI/TFSI engines (EA888 Gen 3) found in Golf GTIs, Golf Rs, and Audi TTs. These ‘things’ feature sophisticated torque-based programming and high-level security🚧!
SIMOS 19.x series (19.3, 19.6, 19.7) controlling the 2.0 TSI (EA888 Evo4) engines. They feature heavily locked microcontrollers, stringent anti–tuning protections😲!
By the way🥤,
ALL VEHICLE BRANDS,
use these 👇files to program, reset or deactivate ECU‘s, DPF, EGR, ADblue, Speed limits, do whatever nonsense🧐,
but at Your OWN RISK🤷♀️!
Click HERE
For example🤔, without doing certain hardware adjustments, you stubbornly jump, ignoring the instructions we attach..
..then you foolishly load a stage–3 ecu data to hack the vehicle perform far beyond factory limitations!
You f*k whatever just because of the 2 drinks You gave us for the data, are We responsible for Your ‘ujinga‘😉? yet…
HAPA UJANJA tu!😁😃🤣
Anyway, Click HERE download sh*t🤪
(It’s NO brainer, just COPY & PASTE)✌
SID
Siemens Injection Diesel (SID) series used primarily in European, Asian, and American diesel engines🦽!
Nissan, LandRover, Peugeot, Citroën, Ford, Volvo, Jaguar, Sozi, etc!
And by the way,
…because some of these manufacturers shared (share) certain joint ventures, the same SID (e.g., SID803, SID807, SID208, SID212) often controls the same shared powertrain across different vehicle brands🧘♂️!
SID 800 Series are predominantly used in early Common Rail (HDi, dCi, TDCi) vehicles from PSA (Peugeot/Citroen), Ford, and Volvo🦽!

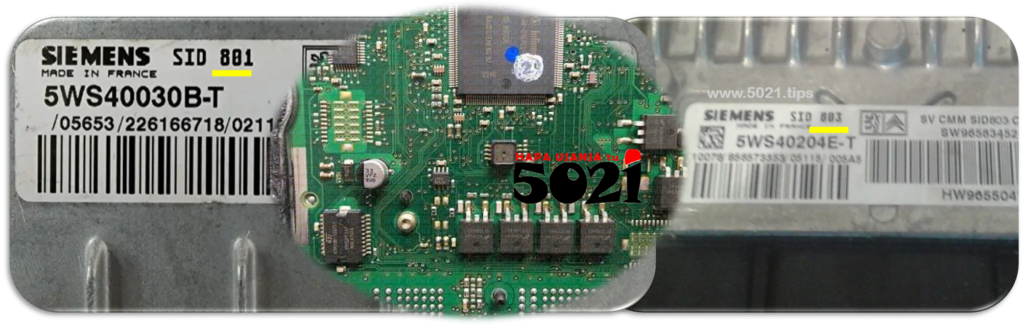

SID 801 / SID 801A with their low-speed CAN, commonly found in 1.4L and 2.0L HDi engines📌!
SID 802 has a similar architecture to the 801, BUT upgraded slightly for specific communication ‘ujanja’🧐!
SID 803 / SID 803A uses a larger flash memory. Commonly used on 2.0L and 2.2L HDi/TDCi engines✌!

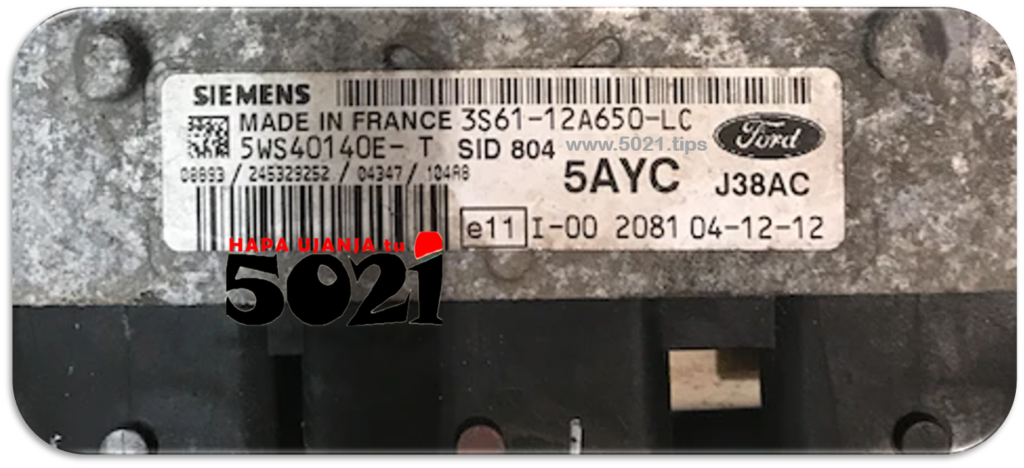

SID 804 common in smaller PSA and Ford diesel vehicles (e.g., 1.4 TDCi / 1.4 HDi)🥂.
SID 805 / SID 806 just has certain minor iterations used for specific configurations and varying injector systems📚!
By the way🥤
ECU programming, reading and or writing data, can be done via boot, bench, or OBD modes🤷♂️!
There is difference in data read/written across these three methods because of varying levels of hardware access, communication protocols, and security restrictions🤷♀️!
Click DOWNLOAD
👇
HERE HAPA
👆👆👆👆👆👆👆👆👆👆👆
This rubbish is some on, if there be a challenge on, which what where how to connect the Control unit’s ping terminals , inshaAllah🤷♂️!

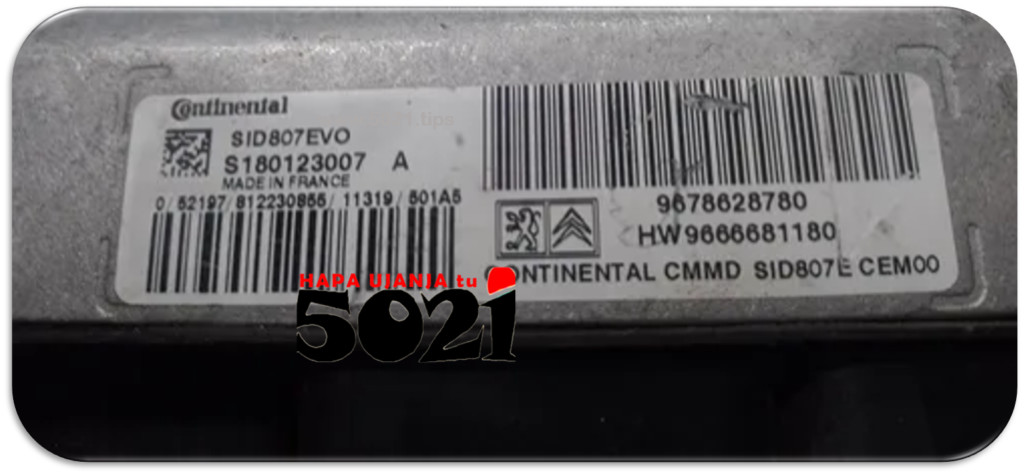

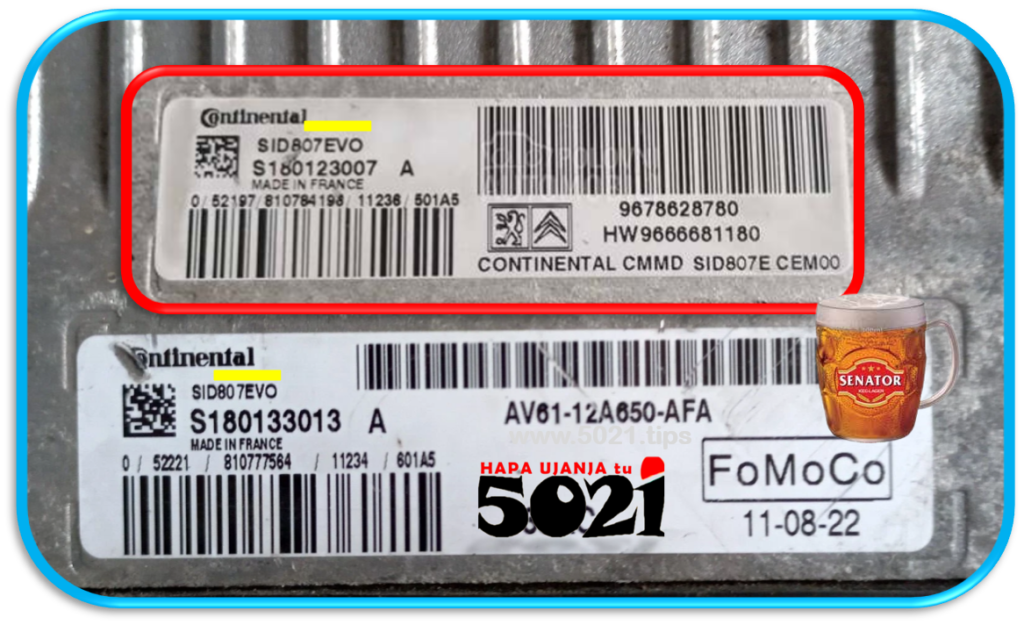

SID 807 / SID 807EVO as found in Ford, Peugeot, Citroën, and Volvo 1.6L and 2.0L diesel engines.
The EVO version just uses a Tricore TC1797 processor and advanced torque monitoring🤷♀️!
SID 201 / SID 204 as widely used in Ford, Land Rover, and PSA platforms to control older V6 and 5-cylinder diesels (e.g., 2.7L TDV6, 2.4L Puma)🚙!

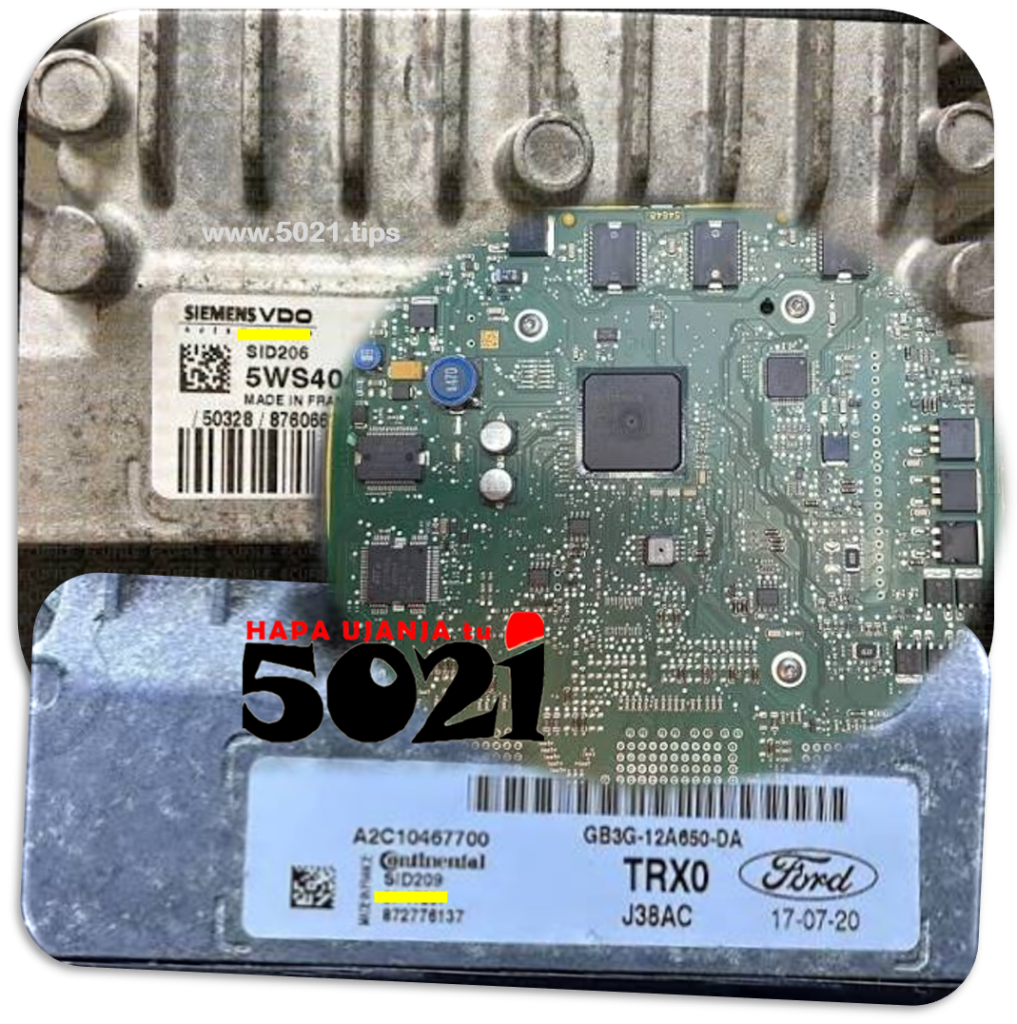

SID 206 / SID 208 is some standard for Ford Rangers, Transits, and Land Rovers (e.g., 2.2L/3.2L Puma). Known for some strong encryption feature for Anti-Tuning (TPROT) protections👌!

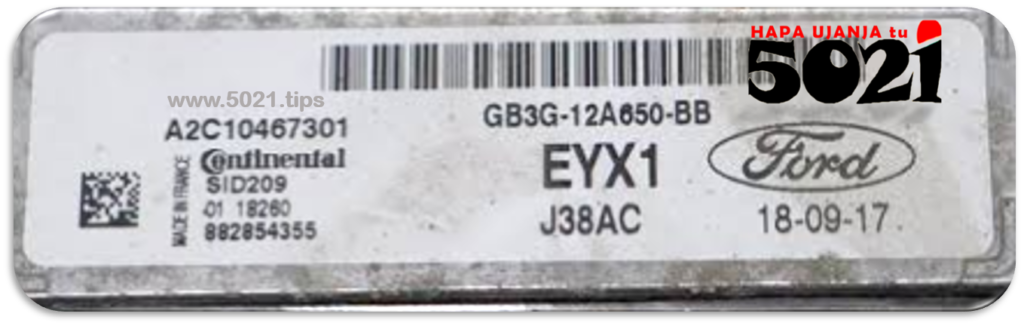

SID 209 as used in modern Ford and Ranger diesel platforms with advanced emission requirements🤷♂️!

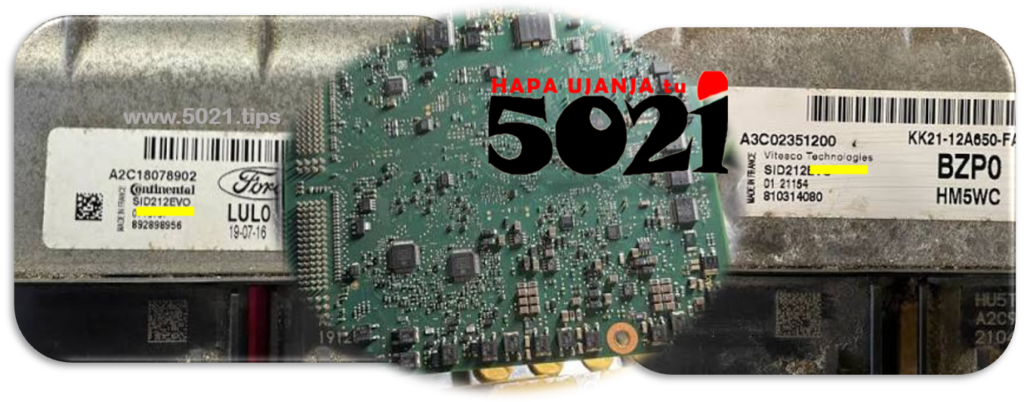

SID 211 / SID 212 / SID 212EVO found in modern Ford EcoBlue, Land Rover, and VW commercial 2.0L diesels🛺!
SID 213 as seen in Ford 2.0L EcoBlue commercial vehicles, featuring advanced OBD reprogramming capabilities🥂!
SID 305 / SID 307 / SID 309 standards for Nissan Qashqai, Juke, Navara, and Renault vehicles🚧!

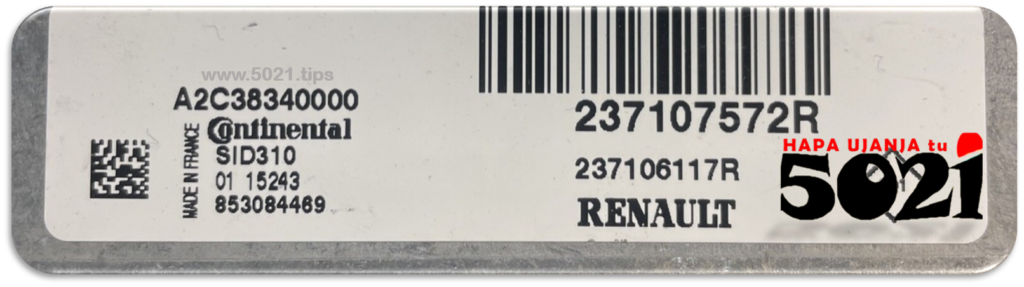

SID 310 in these recent Nissan Navara and Renault commercial vehicles🚑🚑!
Simtec
Primarily found in GM, Opel, Vauxhall, Chevrolet, Daewoo, etc✌!

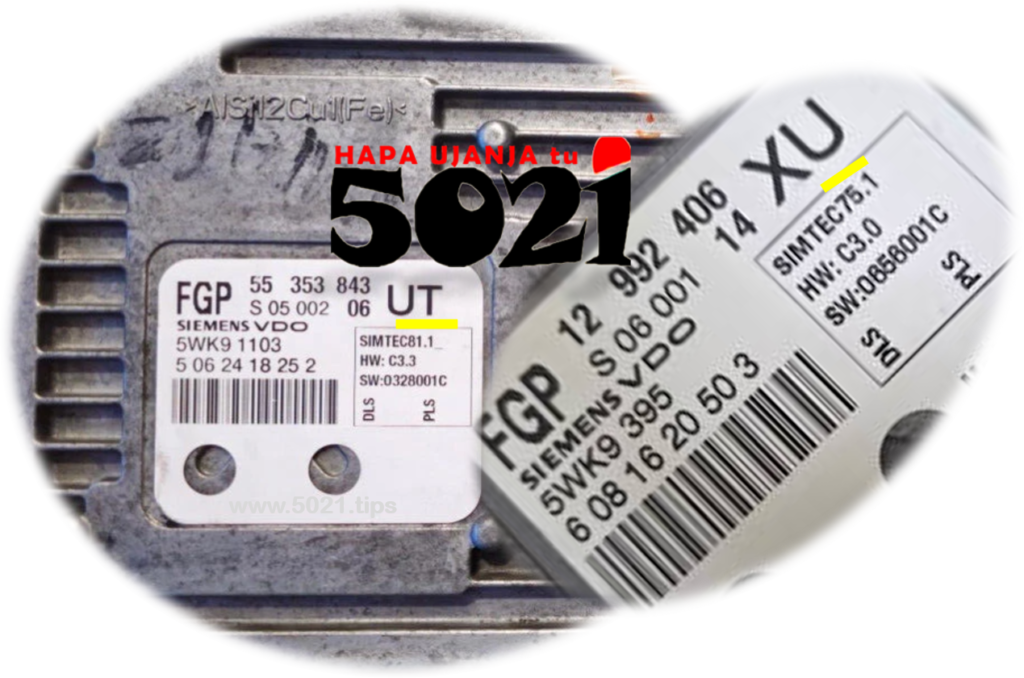

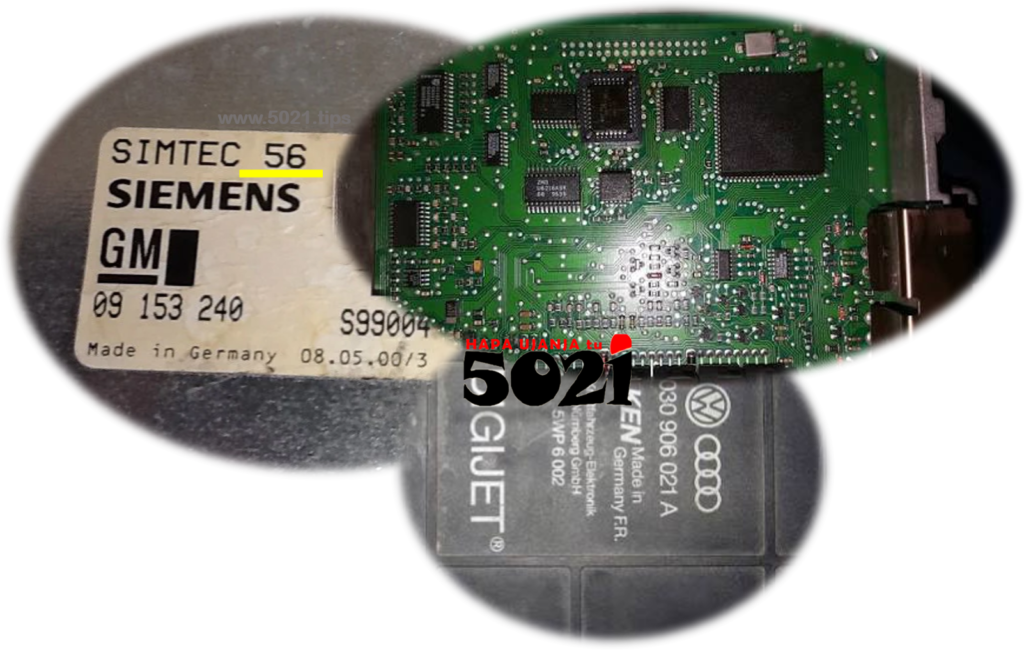

Simtec 56 / 70 as found in Opel Astra G, Vectra with engines like the X18XE1 and X20XEV📌!

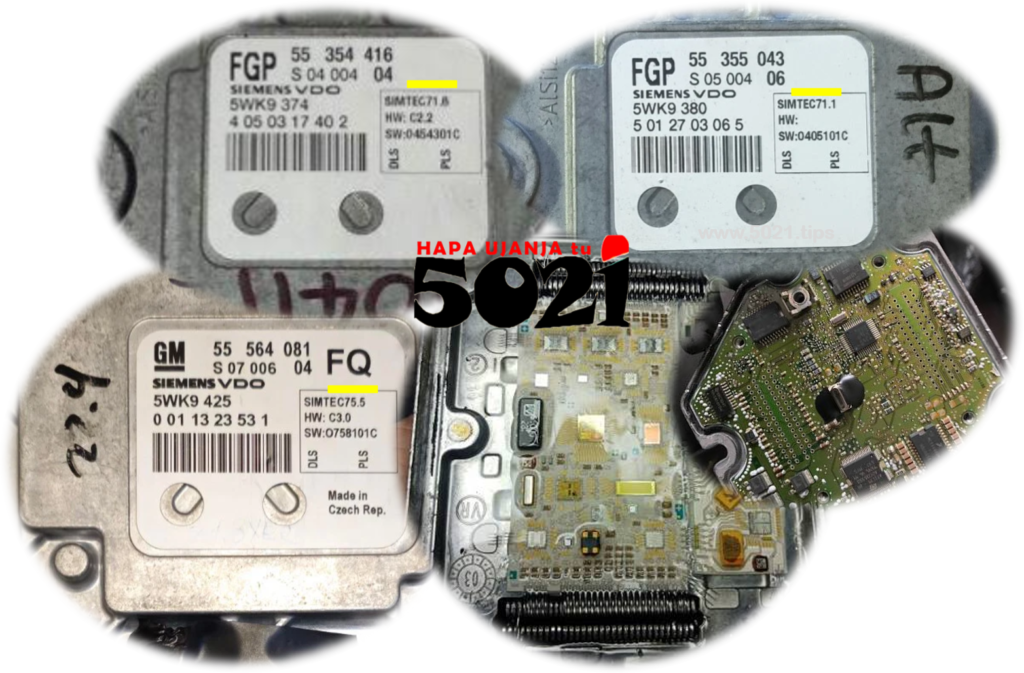

Simtec 71 (71.1, 71.5, 71.6) are common in Z18XE petrol engines😎!
Simtec 75 (75.1, 75.5) used in Astra H and Zafira B for Z16XER and Z18XER engines🏋️♂️!
Simtec 76 / 76.1 as found in Daewoo, Holden, and Chevrolet Cruze models (F16D4 engines)🧘♂️!
Simtec 81 / 81.1 found in larger petrol engines of Opel and Vauxhall vehicles
By the way🥤,
interpreting, locating, testing or doing whatever nonsense on any ECU‘s motherboard should be easy🤷♀️!
Click HERE

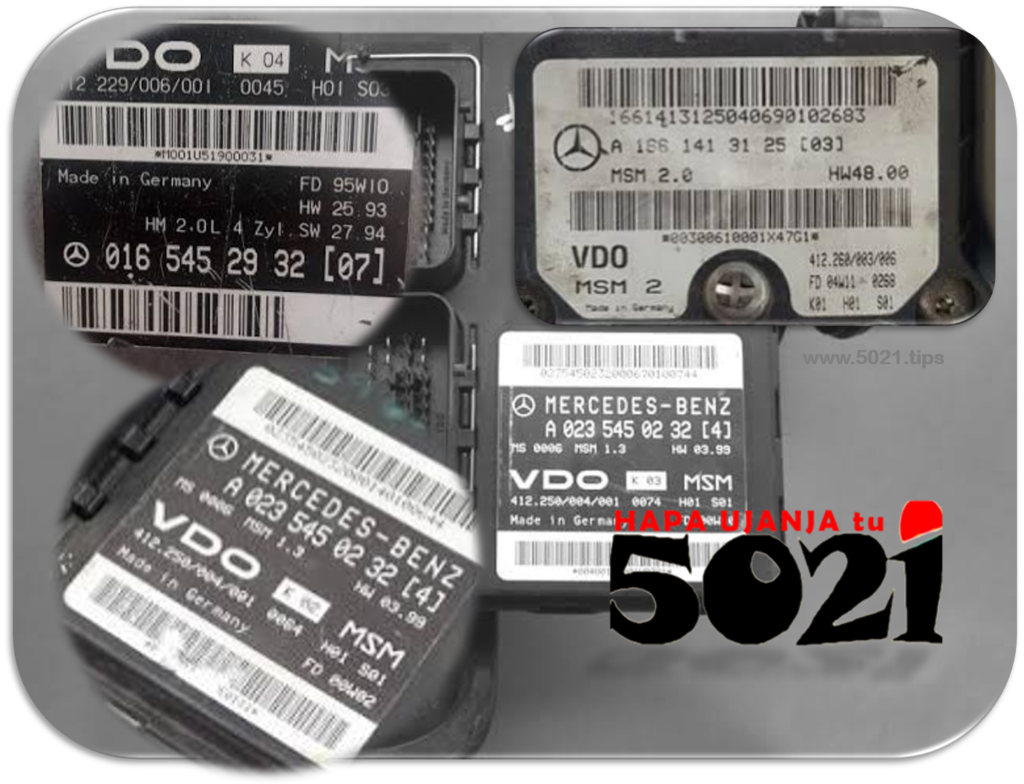

MSM Series found in Mercedes-Benz A-Class models (e.g., MSM 1.4).

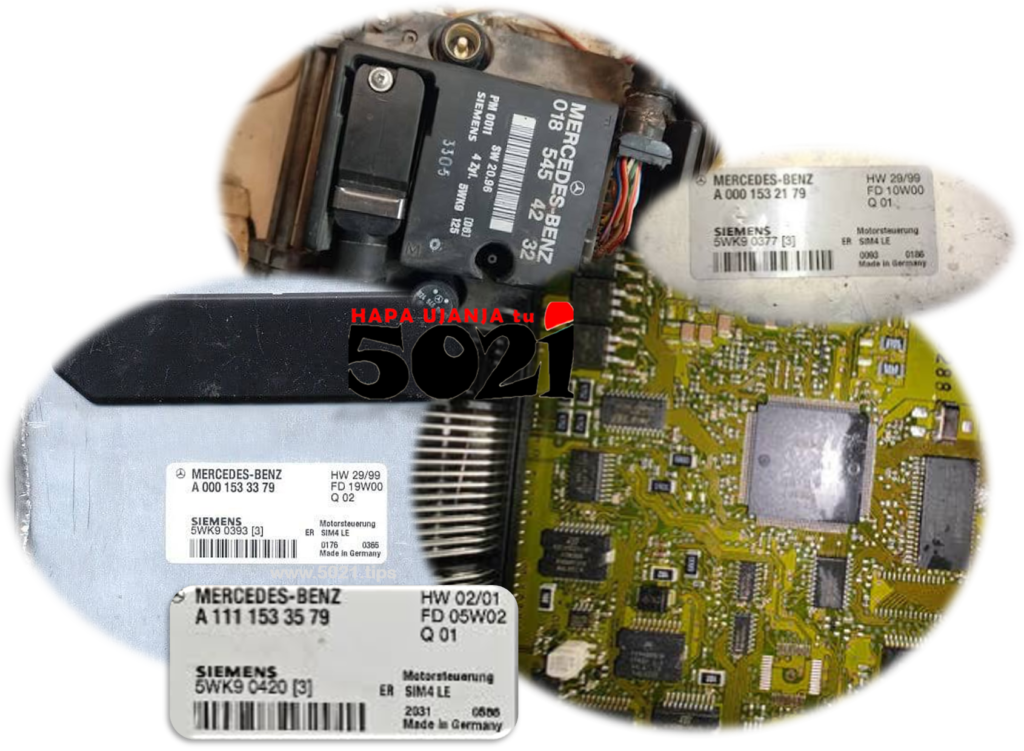

SIM4 Series found in Mercedes-Benz and Chrysler petrol engines (e.g., SIM4LE, SIM4 SE, SIM4LKE)📌!
EMS is for Heavy–Duty & Commercial Vehicles🚑!

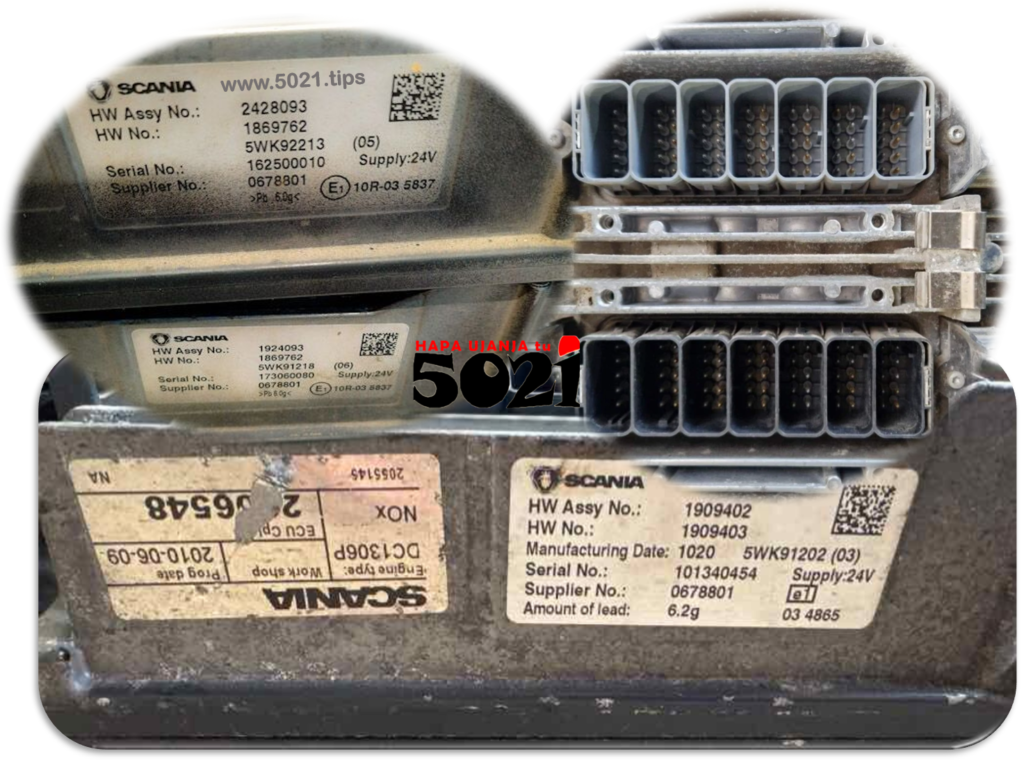

EMS 2 / S7 / S8 / S10 as widely used in Scania and Volvo heavy trucks🚑🚑!

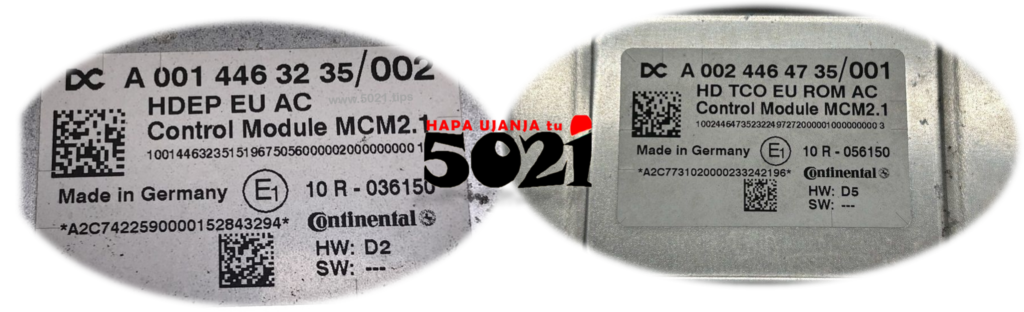

MCM2 / MCM2.1 used in Mercedes-Benz commercial trucks, capable of detailed injection control and advanced engine management functions🚑🚑!
The BMW’s MSD80 and MSV70🥂!

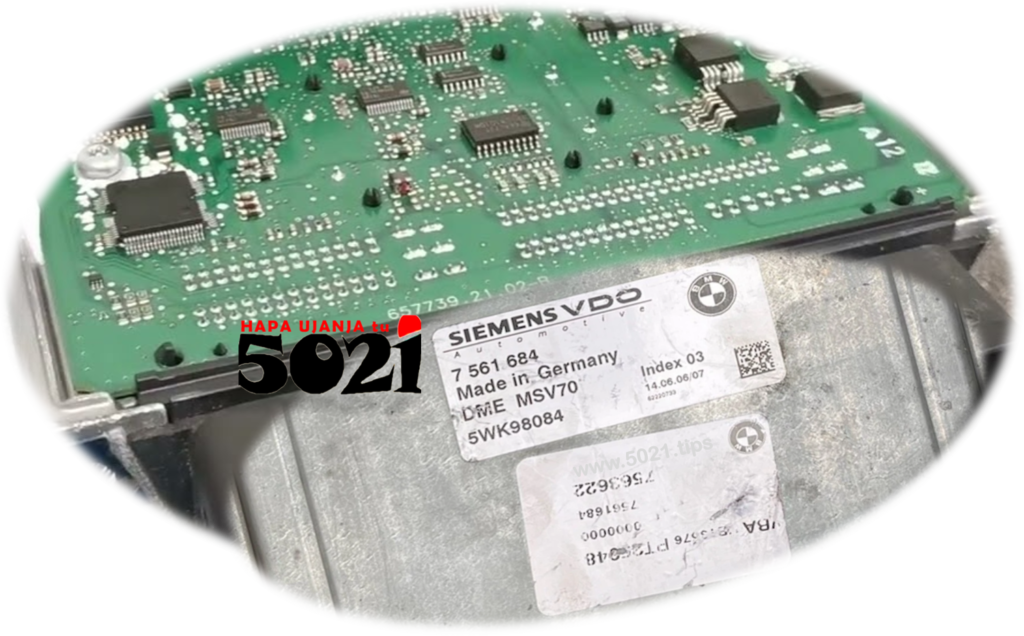

MSV70 controls the naturally aspirated N52 and N51 6-cylinder petrol engines (found in models like the E90 325i/328i and E60 525i/530i)🤷♂️!

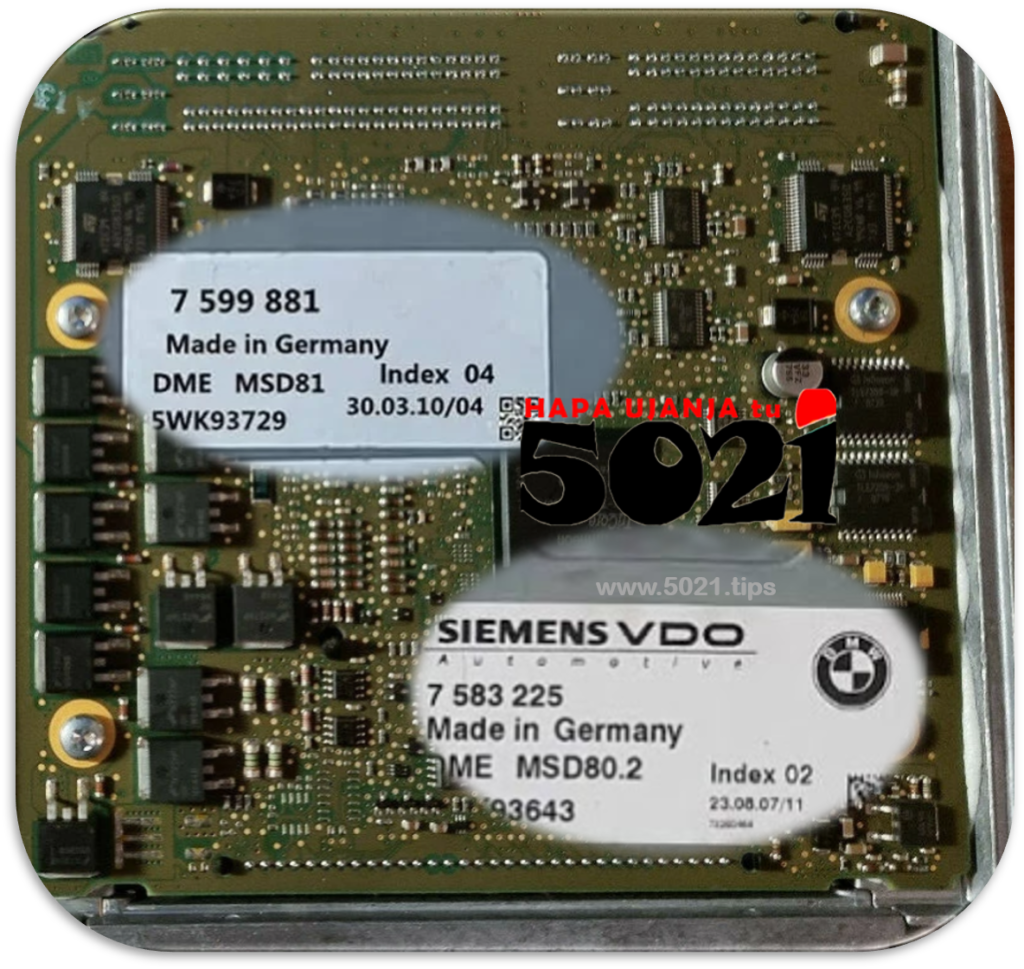

MSD80 just controls the twin-turbo direct-injection N54 6-cylinder petrol engines (found in the E90/E92 335i, E82 135i, and E60 535i)🏹!
By the way🥤,
interpreting, locating, testing or doing whatever nonsense on any ECU‘s motherboard should be easy🤷♀️!
Click HERE

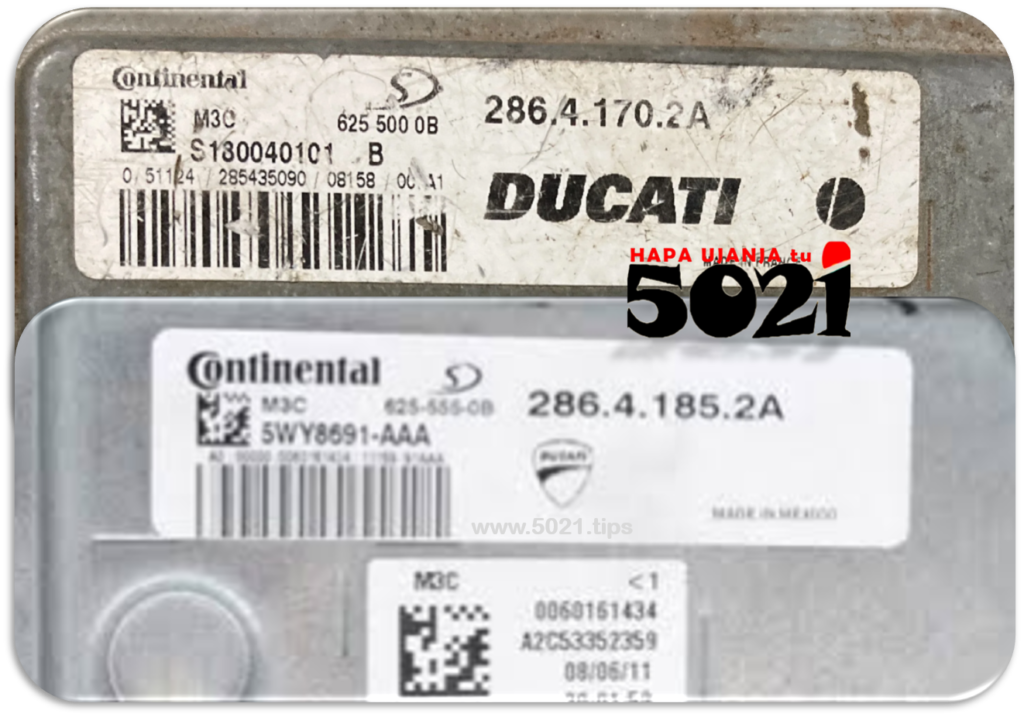

M3C is for Two-Wheeler & Powersports) used broadly by motorcycle and powersports manufacturers like Ducati, KTM, Arctic Cat, and Can-Am/BRP.
It uses an S12X series microcontroller to control ignition and injection for motorcycles
By the way🥤,
ALL VEHICLE BRANDS,
use these 👇files to program, reset or deactivate ECU‘s, DPF, EGR, ADblue, Speed limits, do whatever nonsense🧐,
but at Your OWN RISK🤷♀️!
Click HERE
For example🤔, without doing certain hardware adjustments, you stubbornly jump, ignoring the instructions we attach..
..then you foolishly load a stage–3 ecu data to hack the vehicle perform far beyond factory limitations!
You f*k whatever just because of the 2 drinks You gave us for the data, are We responsible for Your ‘ujinga‘😉? yet…
HAPA UJANJA tu!😁😃🤣
Anyway, Click HERE download sh*t🤪
(It’s NO brainer, just COPY & PASTE)✌
May be whatever is causing You believe MUST do some nonsense to the vehicle, is some minor external problem with the sensors or actuators🤷♂️!
So, this ujanja is how to check, verify all the control electronics in the vehicle, are in proper order!
click here
👇
IMMO OFF files
☝☝
click
These files to disable immobilizer system so the ecu accepts any random key used!
HAPA UJANJAtu, hii ndio jinsi ya kugundua, kupata na kupima componets za ECU, kisha suluhisha shida hiyo. inshaAllah👇
ECU cloning, duplicating or switching memory data’s,
flash memory data, EEPROM memory data, jogolize data,
HAPA UJANJA tu!
WinOLS ni programu yenye uchawi wa kuwezesha kubadilisha, kurekebisha data iliyomo kwenye ECU.
Ina maana unaeza kutoa/kuzima hizo mifumo zenye usumbufu kwenye gari, zikiwemo IMMOBILISER (kufanya immo off). kutoa DPF, EGR, ADblue, kubadili TURBO zenye umeme, yaaani inafanya kazi nyingi kama ECU tuning, uamuzi ni wako tu🤷♂️!
Click HERE
Ujanja wa EEPROM work ni muhimu, ukitaka kumbuka niaje,
…bonyeza HAPA UJANJA tu
